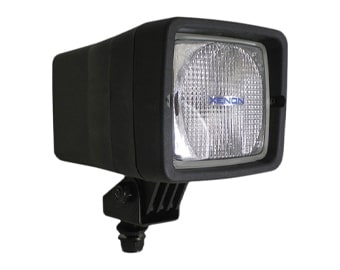

ABL 500 XEI Series HID Xenon Compact Work Lamp

ABL 500 XEI Series HID Xenon Compact Work Lamp

Brand: ABL Lights
Origin: USA


  • Compact 3×3 Xenon work light designed for heavy equipment applications.
  • Three axis vibration dampeners tested to 15g.
  • Uses industry standard Osram D1S Gen 5 Xenon Metal Halide bulb.
  • Impact resistant housing and hardened glass lens.
  • Aluminized reflector with active optics technology.
  • Low weight and compact size.
  • Dust proof and tested under high pressure washdown all directions 100L/min.

New Anti-Vibration bases are now available for the 500XEI. These are easily fitted to the exisiting 500XEI mount. Upgrade your 500XEI’s to handle extreme vibration!

ABL 500 XEI Series HID Xenon Compact Work Lamp Specifications

Bulb35W D1S
BallastGen 5 Integrated
Beam PatternFlood, Trap, Long Range, Spot
Voltage12V DC, 24V DC
Intensity1.8A @ 24V DC
Vibration Resistance15 Grms from 24Hz to 2000Hz
EMCISO 13766 / Earthmoving Equipment
ISO 14982 / Forestry-Agricultural
Water TightnessIP66, IP69K
Operating Temperature-40°C to +85°C
Salt SprayISO 9227
HousingBlack Fibre Reinforced Plastic
LensHardened Glass

Specification Sheets


Applications: Agriculture, Construction, Mining, Industrial, Forestry, 4WD


Dimensions:
Width: 4.1" (104 mm), Height: 4.9" (125 mm), Depth: 5.5" (140 mm)

Part#
Description
Usually ships: 1D
Sell Qty: EA
Ship Weight: 2.4 lbs (1.09 kg)
Catalog page: 10
