ABL LED3000 Series 40W Work Lamp

ABL LED3000 Series 40W Work Lamp

Brand: ABL Lights
Origin: USA


ABL LED5000 with AVB on ripperThe 2500 Series ABL (5”x5”) Halogen work lamps have long been the OE standard for a wide variety of heavy equipment. ABL proudly launches the new ABL LED3000 series.

The ABL LED3000 has the same current draw as a HID Ballast work lamp (40W) yet it outputs an impressive 3,000 effective lumens. 35% more effective lumens with no additional current draw! Class leading surge protection, protected lens and IP69K sealed electronics make this a superior low draw, high output rugged work lamp.

Features and Benefits

  • Comes with the AVB heavy-duty bracket as standard
  • 35% more effective lumens than a HID ballast work lamp for the equivalent amp (A) draw
  • Class-leading surge protection
  • Hardened glass and impact protected optics
  • Rugged and light (only 4.0 lbs / 1.8 kg)

ABL LED3000 Series 40W Work Lamp Specifications

Bulb7 LEDs
eLumens (effective)3000 lm
rLumens (raw)4200 lm
Colour Temperature6000K
Light PatternWide flood, flood, long range
Consumption40W
Voltage12-100V multi, 24V only option
Intensity1.7A @ 24V
Weight4.0 lbs / 1.8 Kg
ConnectionDeutsch, Amp, Cable
Vibration Resistance30Grms over 10-2000Hz
Shock Resitance80G
EMCISO 13766 - ISO 14982 - ISO 12985
Surge Protection110V continuous, 200V 100ms, 1800V 50μs
PolarityProtected against reverse voltage
Water TightnessIP 68 - IP 69K
MountPedestal, suspended
HousingAluminium alloy
OpticsHardened glass, impact protected
Operating Temperature-40°C to +85°C
Warranty5 years

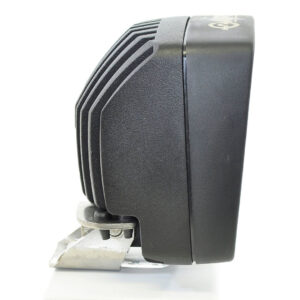

ABL LED3000 comes with the heavy-duty AVB bracket as standard

APS LED3000_with AVBFixture shock and vibration resistance test results can be used as guides for customers to determine how capable a fixture is of enduring the 24/7 severe vibration experienced on heavy equipment.

Shock resistance measures durability with short burst of vibratory energy. Vibration resistance measures durability over a range of vibration frequencies (Hz) over an extended period of time. Constant 24/7 severe vibration kills poor quality fixtures. Ask for both shock and vibration tests. A 80G shock, 30Grms 10-2000Hz specification is far superior to 80G shock, 30Grms 20-2000Hz.

If fit and forget is your fixture expectation over the stated warranty period then make durability a key selection criteria for your lighting fixtures.

We are confident that the ABL 2500 LED AVB Series featured in this issue will meet your requirements for durability on the most demanding machines. Built to a Standard.

bulldozer with ABL AVB bracket

Specification Sheets


Applications: heavy equipment, construction, mining, support vehicles, agriculture, forestry

Part#
Description
Usually ships: 1-4D
Sell Qty: ea
Ship Weight: 4 lbs (1.8 kg)
Catalog page: NEW
Usually ships: 1-4D
Sell Qty: ea
Ship Weight: 4 lbs (1.8 kg)
Catalog page: NEW
Usually ships: 1-4D
Sell Qty: ea
Ship Weight: 4 lbs (1.8 kg)
Catalog page: NEW
Usually ships: 1-4D
Sell Qty: ea
Ship Weight: 4 lbs (1.8 kg)
Catalog page: NEW
Usually ships: 1-4D
Sell Qty: ea
Ship Weight: 4 lbs (1.8 kg)
Catalog page: NEW
Usually ships: 1-4D
Sell Qty: ea
Ship Weight: 4 lbs (1.8 kg)
Catalog page: NEW
Usually ships: 1-4D
Sell Qty: ea
Ship Weight: 4 lbs (1.8 kg)
Catalog page: NEW
Usually ships: 1-4D
Sell Qty: ea
Ship Weight: 4 lbs (1.8 kg)
Catalog page: NEW
