Brand:
ABL Lights
Origin: USA
Manuf. PN: 3832-0090, CHL 2 LED SAE LH
Click for:

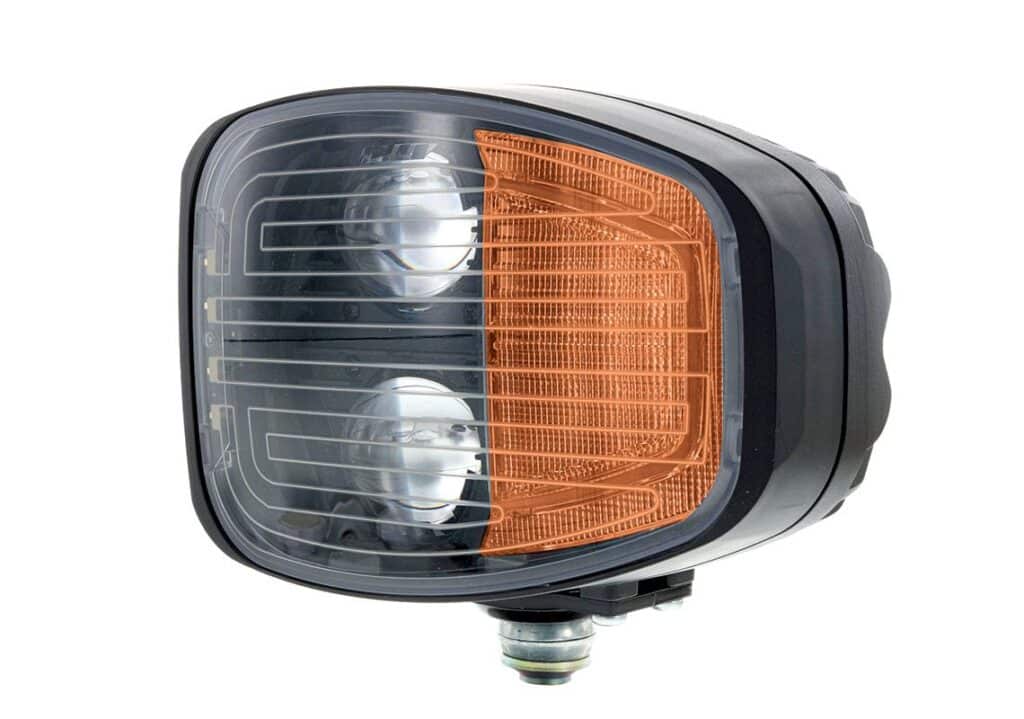

The ABL CHL 2 LED Combination Headlamp is the new full LED OE-approved high-low beam headlamp solution developed for demanding heavy-duty applications. As a result, it delivers improved light output and optimised photometry, helping operators achieve better forward visibility in challenging working environments. In addition, the CHL 2 LED introduces a unique active and autonomous de-icing system that enhances reliability in cold and all-weather conditions.
Furthermore, the active de-icing function automatically detects frost or snow on the lens by monitoring lens temperature and activates the integrated heating resistance until the lens is clear. Moreover, the CHL 2 LED features upgraded electromagnetic compatibility to CISPR 25 Class 5 and is available in ECE and SAE version. At the same time, the pre-assembled, plug-and-play design allows easy installation and direct replacement of halogen or CHL 1 LED headlamp products. Therefore, this universal heavy-duty headlamp solution is suitable for agriculture machinery, construction and forestry equipment, material handling equipment and forklifts, trucks, vans, chassis cab vehicles, snow plows, and specialised machines used in demanding applications.

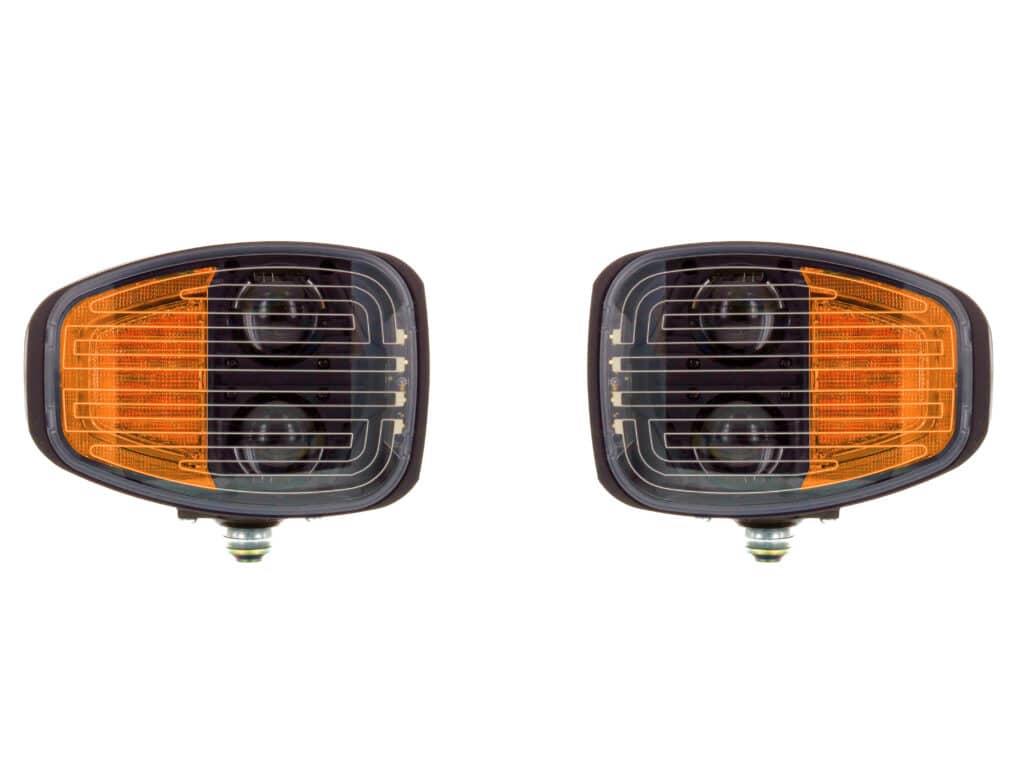

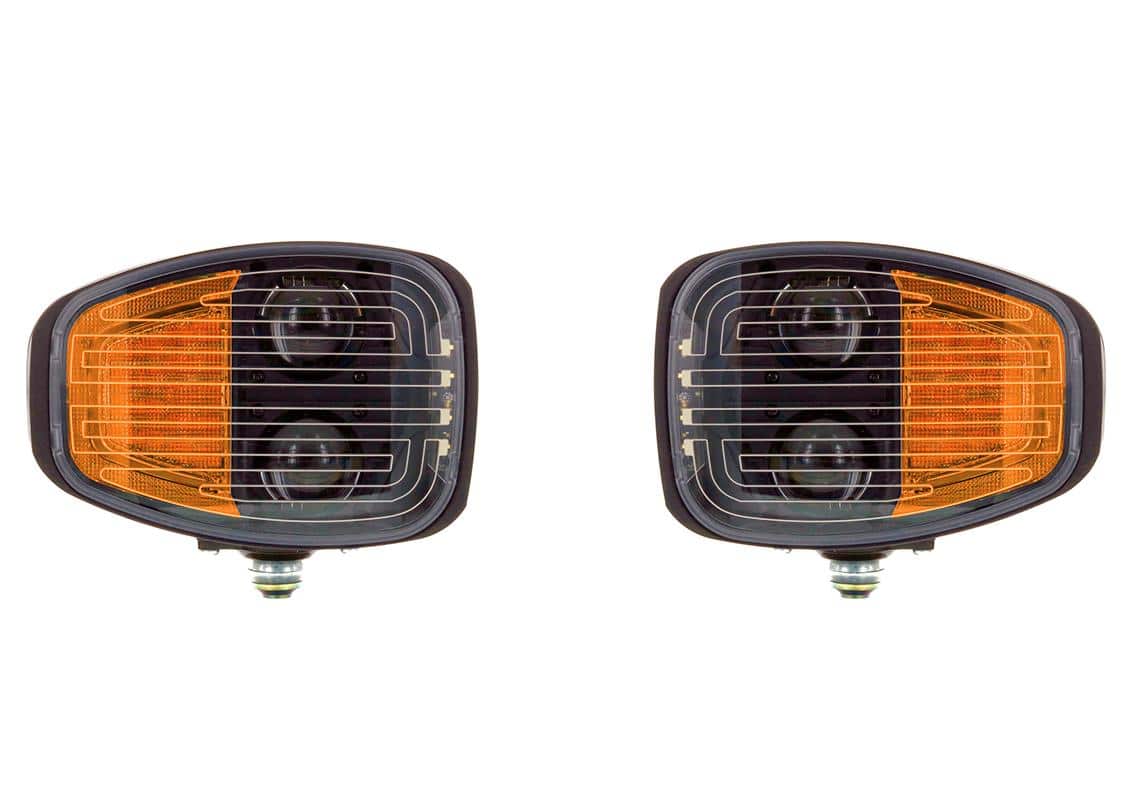

ABL CHL 2 LED Combination Headlamp – Kit Driving Light Left and Right SAE LED 12/24V De-icing Features & Benefits ▲
- Extra wide angle
- Outstanding light performance
- Active and autonomous de-icing system
- Vibration resistant
- Plug and play with former halogene or LED products
ABL CHL 2 LED Combination Headlamp – Kit Driving Light Left and Right SAE LED 12/24V De-icing Videos ▲
ABL CHL 2 LED Combination Headlamp – Kit Driving Light Left and Right SAE LED 12/24V De-icing Specifications ▲
| Voltage | 12/24V DC |
| Consumption | At 24V : Low beam 30 W / Low beam + De-icing 50 W / High beam 60 W / High beam + De-icing 80 W / Turn indicator 16 W / Position light 5 W |
| Connector | DT 6 pin |
| Mounting | Pedestal |
| Side | Left/Right |
| Lens Material | Polycarbonate - built-in thermal de-icing |
| Specific Functions | Active and autonomous de-icing |
| IP Protection | IP68 - IP69K |
| Polarity | Protected against reverse voltage |
| Electronic Thermal Management | Protected against overheating |
| Operation Temperatures | -40°C to +85°C |
| Load Dump | 36V CONTINUOUS/ 58V 300ms/ 1800V 50µs |
| Salt Spray Test | ISO 9227 |
| Vibration Resistance | 15 Grms, from 24Hz to 2000Hz |
| Shock resistance | 60G |
| EMC | ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5 |
| SAE | SAE |
| Dimensions (L x D x H) | 240 x 126 x 164 mm |
| Warranty | 30,000 operating hours or 5 years |
ABL CHL 2 LED Combination Headlamp – Kit Driving Light Left and Right SAE LED 12/24V De-icing Specifications Flyer (PDF) ▲
Applications: Agriculture, Construction, Forestry, Handling and Forklifts, Trucks, Vans, and Chassis Cab
