ECCO BF900 Tri-Colour LED Beacon

ECCO BF900 Tri-Colour LED Beacon

Brand: ECCO
Origin: USA

Click for:

•   Features & Benefits
•   Photos & Images
•   Specs Table
•   Specs Flyer (PDF)
•   Parts Enquiry
•   Related Products

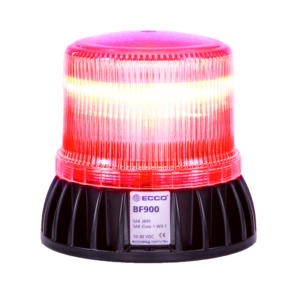

The BF900 LED beacon. Featuring a powerful 3400 Lumen of high intensity LED output packed into an extremely rugged die-cast alloy based beacon with various selectable flash patterns. The BF900 series is proven, tough and sealed to IP67 with no moving parts, ensuring long working life with no maintenance. Joining the family, the RGB (Red/Green/Blue) and RAG (Red/Amber/Green) models expands the range with an all new LED and optic layout within the hardened polycarbonate lens and robust base that the BF900 range is known for.

ECCO BF900 Tri-Colour LED Beacon Features & Benefits  ▲

  • SAE Class 1 brightness
  • CISPR 25 lvl 3 (BF900-03 & BF900-06 only)
  • 150 or 210 rotations per minute functionality
  • 18x LED (BF900-03 & BF900-06)/16x LED (BF900-00, BF900-04, BF904-00 & BF904-04)
  • Gasket-sealed polycarbonate lens and gel-filled die-cast alloy base
  • Heavy-duty flange or vacuum magnetic mount options
  • 15 Flash Patterns (BF900-03 & BF900-06)/7 Flash Patterns (BF900-00, BF900-04, BF904-00 & BF904-04)
  • Each LED colour can be triggered individually (Tri-Colour only)
  • Temperature range: -40ºC to 65ºC (-40ºF to 149ºF)
  • Suction magnetic base version features combination cigarette lighter and accessory (merit) plug (BF904-00 & BF904-04)

ECCO BF900 Tri-Colour LED Beacon Specifications  ▲

Voltage10-30V DC
Amps2.28A
BaseFlange or Suction Magnetic
LensAmber or Clear
LEDRed/Green/Blue, Red/Amber/Green or Amber
Temperature Range-40ºC to 65ºC (-40ºF to 149ºF)
Standards ComplianceCISPR 25 lvl 3 (BF900-03 & BF900-06 only), SAE Class I, IP67/69K, CE, RoHS

ECCO BF900 Tri-Colour LED Beacon Specifications Flyer (PDF)  ▲

Applications: Heavy equipment, mining, construction, road and utility equipment, forestry, agriculture

Dimensions:
Width: 6.5" (165 mm), Height: 5.87" (149.3 mm)
