Brand:
Grote
Origin: USA
Click for:
Help Surrounding Traffic Easily Identify Turns with This Eye-Catching Side-Turn/Marker Light
The 6” Oval LED Sequential Arrow Side-Turn Lights help surrounding traffic easily identify turns with a flashing arrow light pattern.
Grote 6” Oval LED Sequential Arrow Side-Turn Lights Features & Benefits ▲

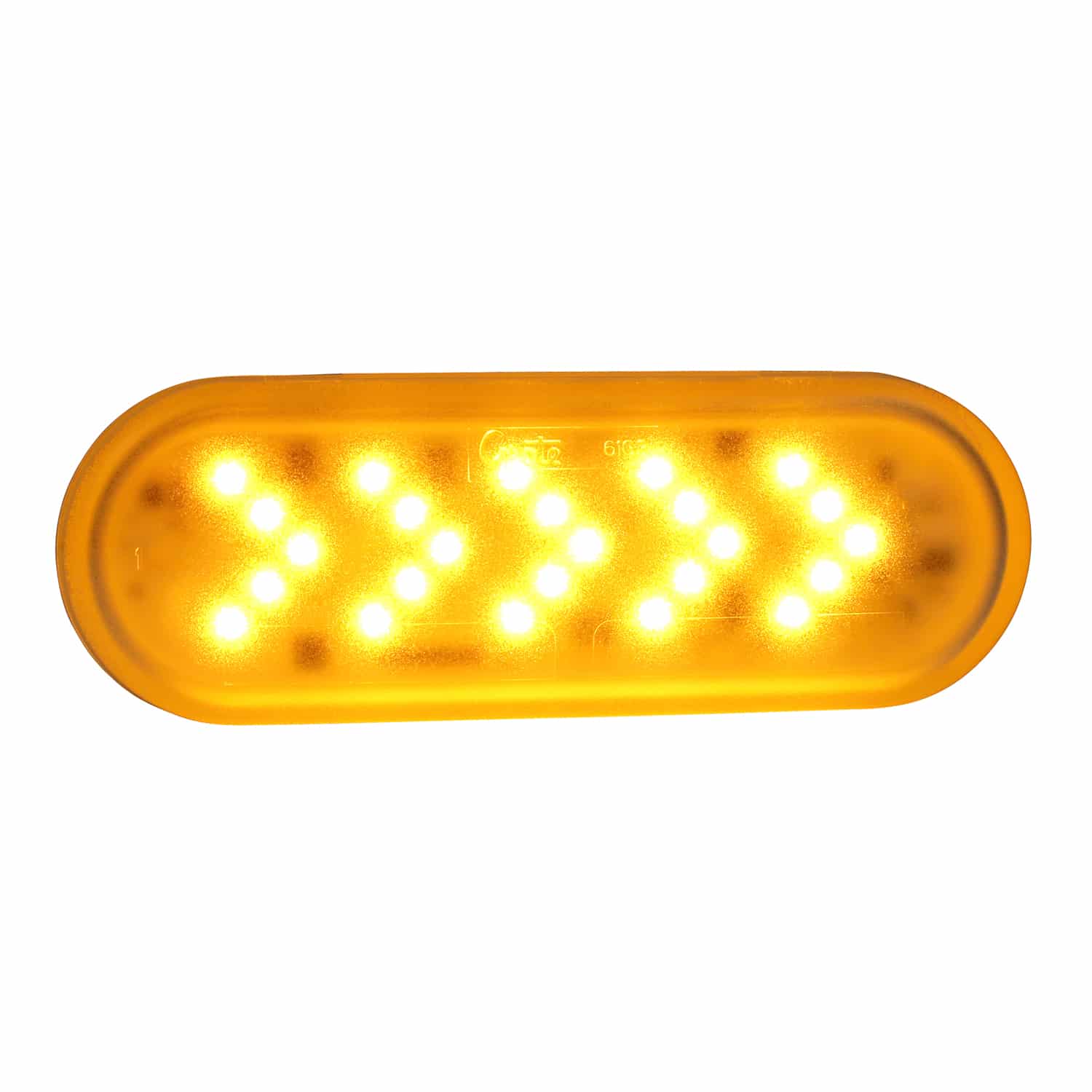

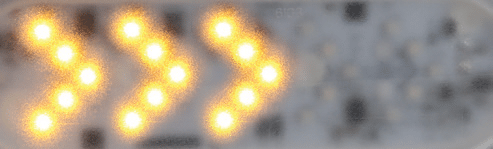

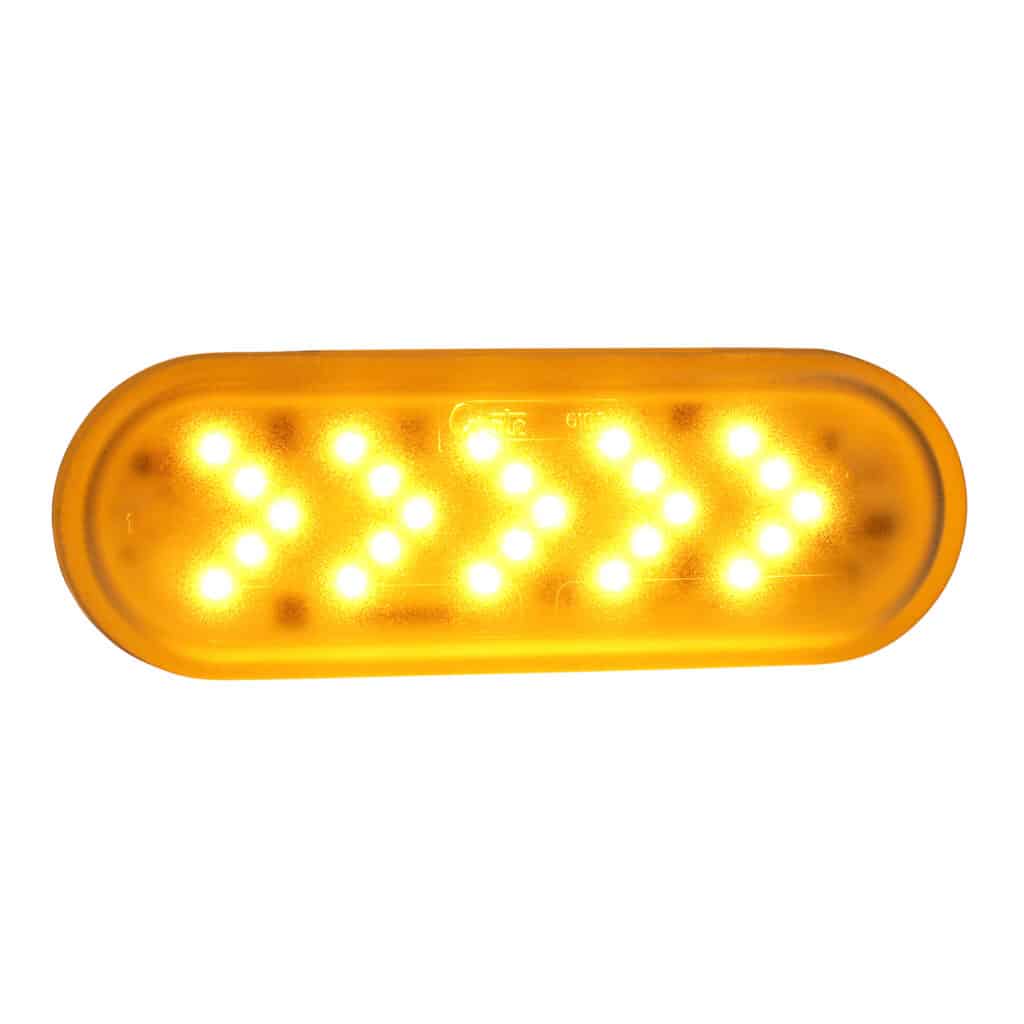

- Sequential flashing arrow pattern highlights turns, drawing attention away from distractions
- Auxiliary light for mid-turn and/or wide-turn indications

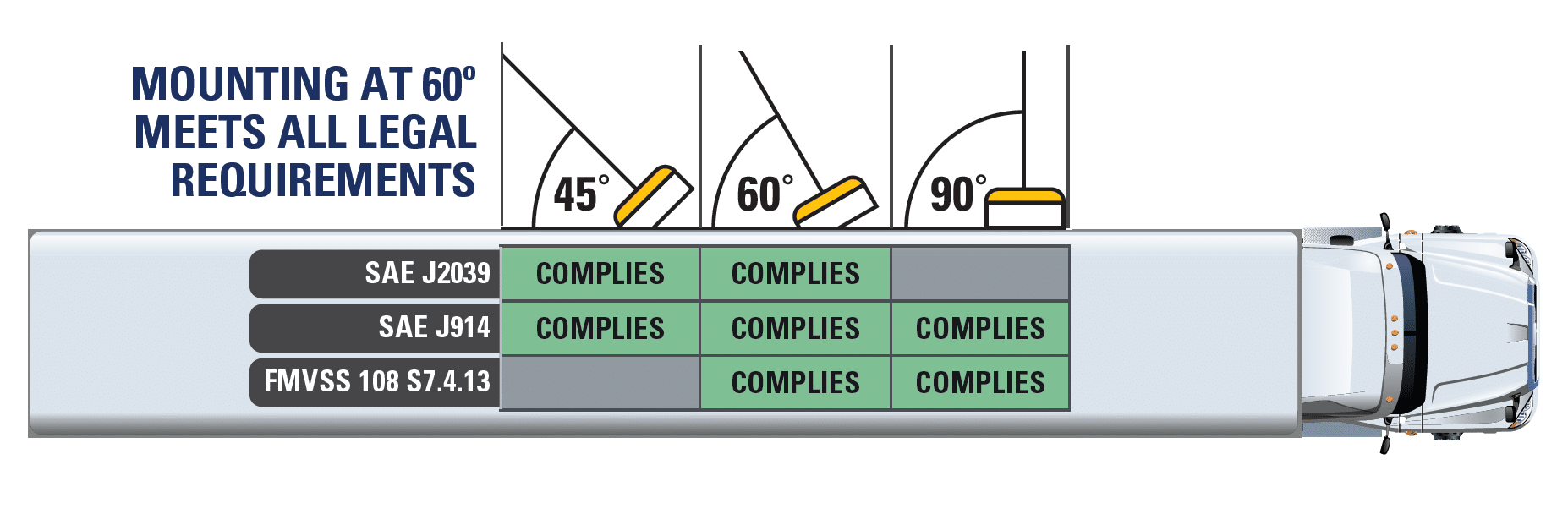

- Meets legal requirements when mounted at 60 degrees
- Industry standard design fits existing mounting grommets, brackets, and flanges
- LED technology requires less maintenance and delivers long lamp life
Grote 6” Oval LED Sequential Arrow Side-Turn Lights Video ▲
Grote 6” Oval LED Sequential Arrow Side-Turn Lights Specifications ▲
Product Type | Auxiliary Lamp |
Color | Amber |
Design Current Load | 9V-16V |
Voltage | 12V |
Current Rating | Turn 0.525A @ 12.8V, Marker 0.071A @ 12.8V |
Lens Color | Clear |
Housing Color | White |
Mounting Type | Grommet/Flange |
Material | Acrylic Lens, ABS Housing |
Functions | P2 |
Pins | 3 |
Plug | AMP Superseal 1.5 Series |
Termination | AMP Superseal 1.5 Series |
Ingress Protection | Sealed Lamp |
Standards | SAE J914 Jul_2003 (E2) |
Regulations | FMVSS 108 |
Pack Quantity | 54723: 1 54723-3: 16 |
Grote 6” Oval LED Sequential Arrow Side-Turn Lights Specification Flyer (PDF) ▲
Applications: Trailer trucks, work trucks, tow trucks, utility fleets, commercial service vehicles, emergency vehicles, construction, mining, agriculture, industrial equipment, and buses

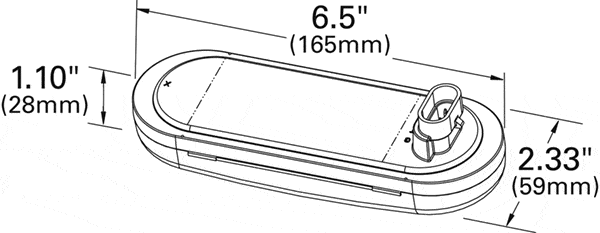

Dimensions:
Width: 1.8" , Height: 2.3" , Length: 6.5"
