Brand:
J.W. Speaker
Origin: USA
Click for:
5″ x 5″ LED Multi-Function Signal Lights
This low profile multifunction signal light is the perfect upgrade to stock bulb-based lamps. The solid-state LEDs resist shock and vibration and available in two different configurations: Stop, Tail & Turn Signal – and – Front Position & Front Turn Signal. LEDs withstand shock and vibration. Easy installation with a low-profile mount. 12-24V DC range suits a wide range of vehicles.
J.W. Speaker Model 223 LED Signal Lights Features & Benefits ▲

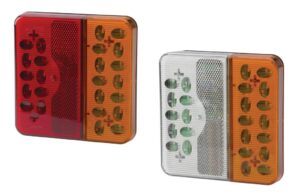

- Available in two different configurations: Stop, Tail & Turn Signal, Front Position & Front Turn Signal
- LEDs withstand shock and vibration
- Easy installation with the low-profile mount
- 12-24V voltage range suits a wide range of vehicles
- Front Position/Front Turn Signal Light: ECE Reg 6, ECE Reg 7
- ECE LED Stop, Tail & Turn Signal Light with Harness: ECE Reg 3, ECE Reg 6, ECE Reg 7, SAE J575, SAE J586, SAE J594, SAE J585, SAE J588
J.W. Speaker Model 223 LED Signal Lights Specifications ▲
| Input Voltage | 12-24V DC |
| Beam Patterns | Part No. 0341701: Stop Signalisation, Tail Signalisation, Turn (Front) Signalisation, Turn (Rear) Signalisation Part No. 0341711: Front Position Signalisation, Turn (Front) Signalisation, Turn (Rear) Signalisation |
| Current Draw | 0.33A @ 12V DC |
| Outer Lens Material | Acrylic |

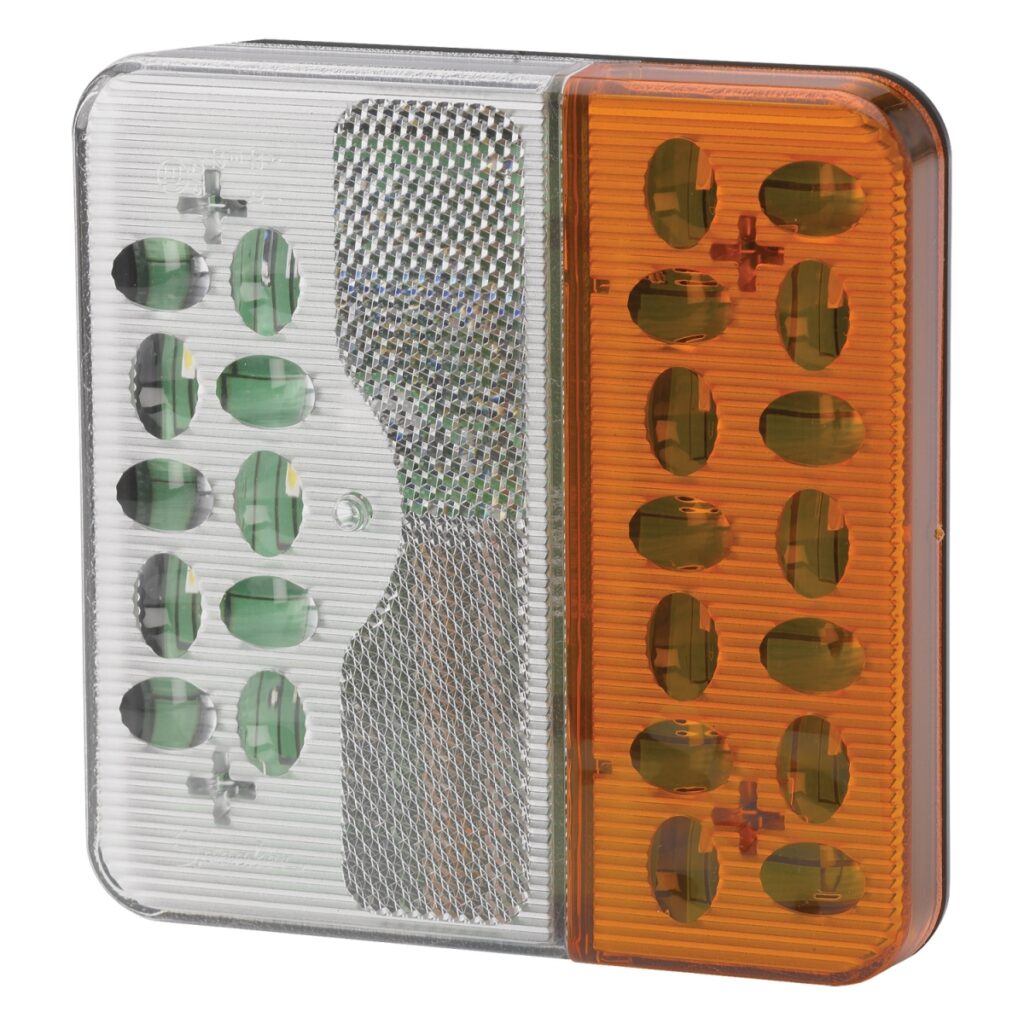

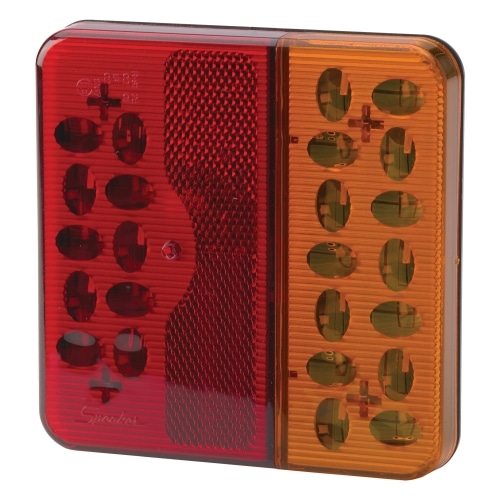

| Outer Lens Color | Amber, Red (Part No. 0341701), Amber, Clear (Part No. 0341711) |
| Housing Material | ABS |
| Housing Color | Black |
| Connector or Wiring | Integrated 4-Pin Deutsch Socket (DT04-4P) |
| Mating Connector | 4-Pin Deutsch Plug (DT06-4S) |
| Mounting Type and Hardware | Low Profile Mount, (x2) M6-1 x 25 Mounting Bolts |
| Minimum Operating Temperature | -40 °C / -40 °F - 65 °C / 149 °F |

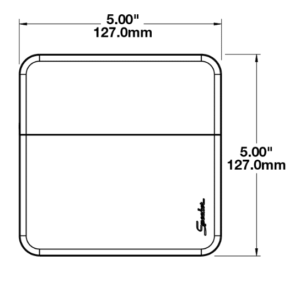

| Height | 127 mm / 5 in |
| Width | 127 mm / 5 in |

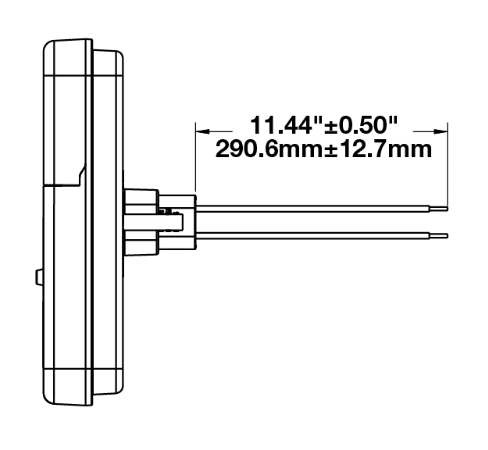

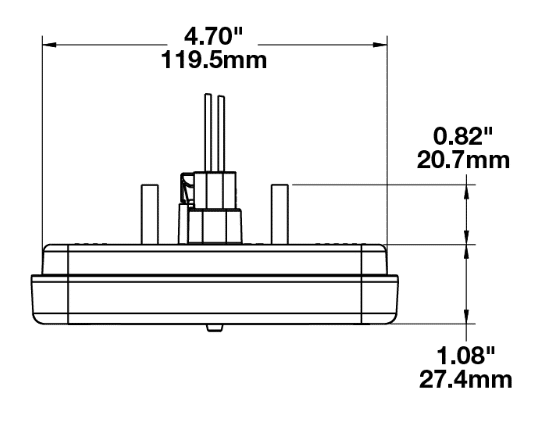

| Depth | 48.26 mm / 1.9 in |
| Product Weight | 0.46 lbs / 0.21 kgs |
| Compliance and Ratings | Part No. 0341701: ECE LED Stop, Tail & Turn Signal Light with Harness: ECE Reg 3, ECE Reg 6, ECE Reg 7, SAE J575, SAE J586, SAE J594, SAE J585, SAE J588 Part No. 0341711: Front Position/Front Turn Signal Light: ECE Reg 6, ECE Reg 7 |
J.W. Speaker Model 223 LED Signal Lights Specification Flyer (PDF) ▲
J.W. Speaker Model 223 LED Signal Lights Parts Enquiry ▲
Part#
Description
