Brand:
J.W. Speaker
Origin: USA
Click for:

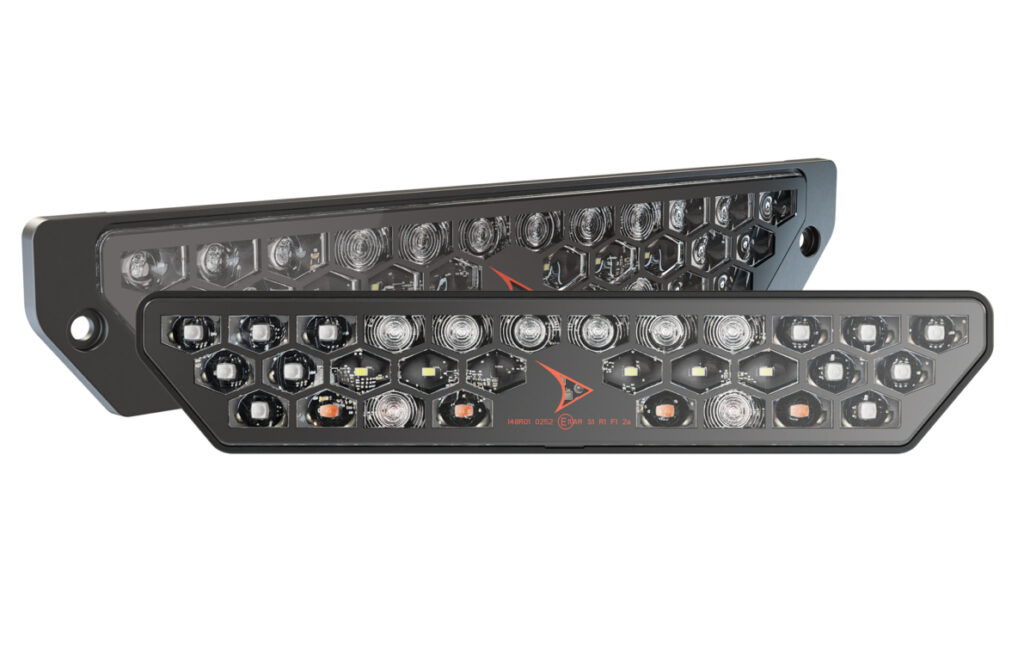

11″ X 2″ X 3/4″ LED Rear Combination Light
Elevate your next design with the Model 260 — a state-of-the-art LED rear combination light engineered to exceed OEM vehicle lighting standards. Designed for both performance and style, the Model 260 delivers exceptional brightness, durability, and energy efficiency. Its sleek, low-profile housing not only enhances vehicle aesthetics but also reduces weight, making it a smart and modern halogen light replacement. Fully compliant with global regulations, the Model 260 is the ideal solution for commercial, specialty, and on-highway vehicle applications.
J.W. Speaker Model 260 LED Stop, Tail, Turn & Backup Lights Features & Benefits ▲
- 360° Installation: The Model 260 beam pattern allows mounting in any orientation, supporting a variety of configurations without compromising performance or compliance.
- Mounting Flexibility: Available in flange mounted or post mounted versions for a one-of-a-kind integration into panels, brackets, or a custom fascia.
- Regulatory Compliance: Meets global ECE and SAE standards with the ability to pair different functions together.
- Lightweight Efficiency: Nearly half the weight of traditional halogen lamps, the Model 260 reduces overall vehicle mass—without sacrificing performance or durability.
- Distinctive, Low-Profile Design: Its slim, contoured design enhances styling flexibility and modern aesthetics, making it a standout fit for a variety of rear-end vehicle treatments.
Select the Right Model 260 for Your Build
Follow these simple steps to help select the perfect Model 260 Rear Combination Lights for your vehicle application:
Step 1: Choose Your Mounting Preference
Select the mounting style that best fits your design requirements:
- Flange Mounted: Bolts directly to a panel or custom bracket using M6 bolts

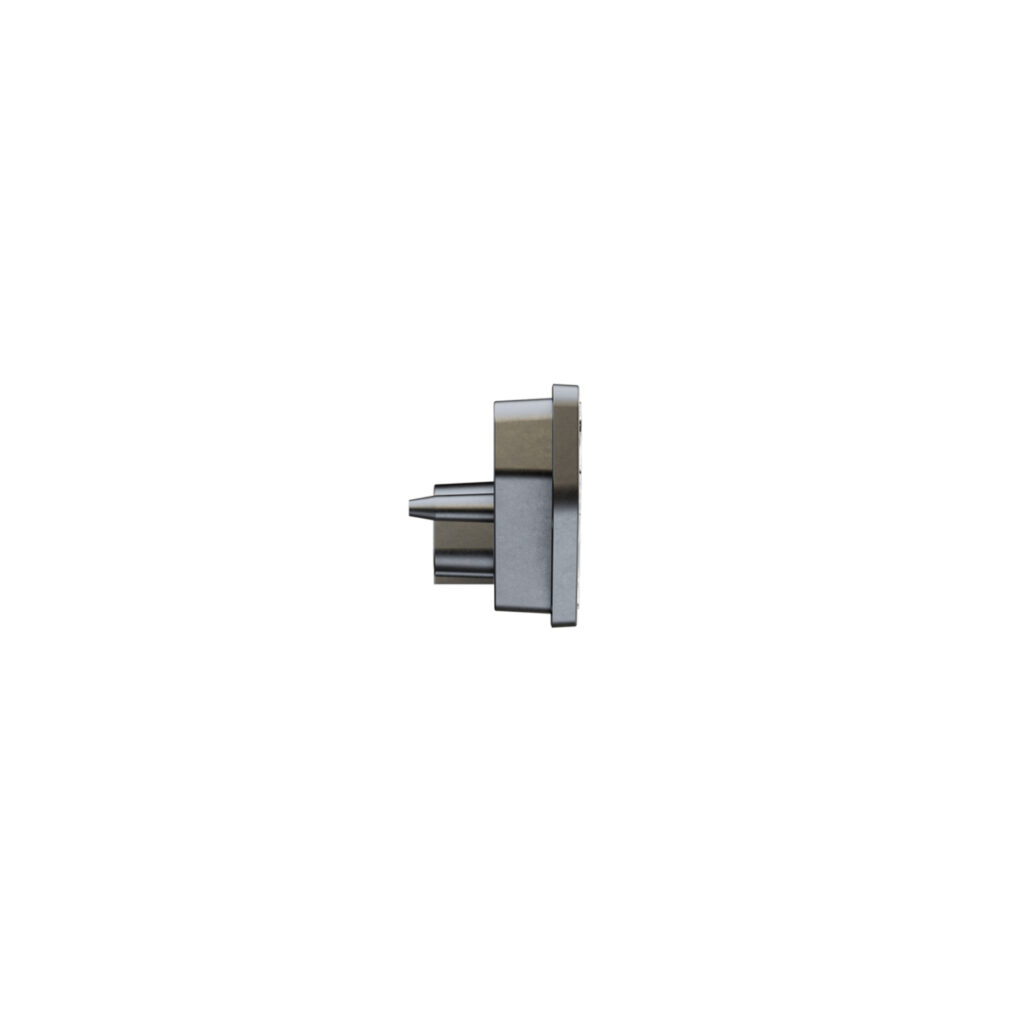

- Post Mounted: Secures using 7mm posts, compatible with panels or custom fascia using 11mm (1/4”) speed nuts
Step 2: Choose Your Functions
Decide which lighting functions you need. Options include:

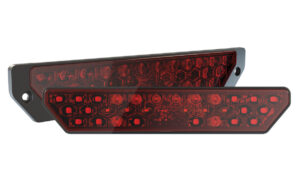

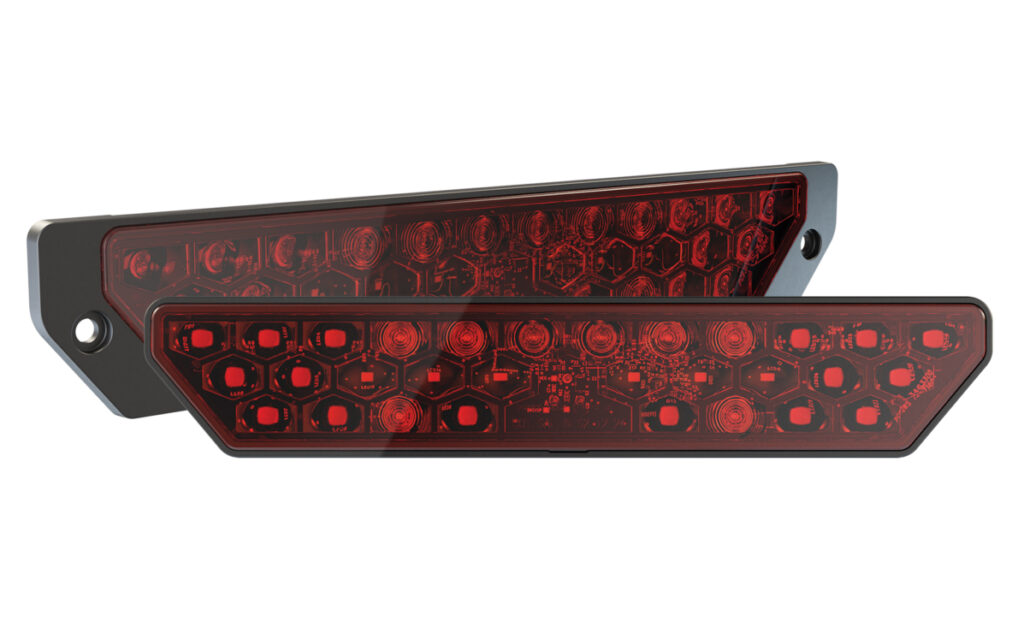

- Stop & Tail (SAE/ECE): Flange Mount: 0348581, Post Mount: 0348591

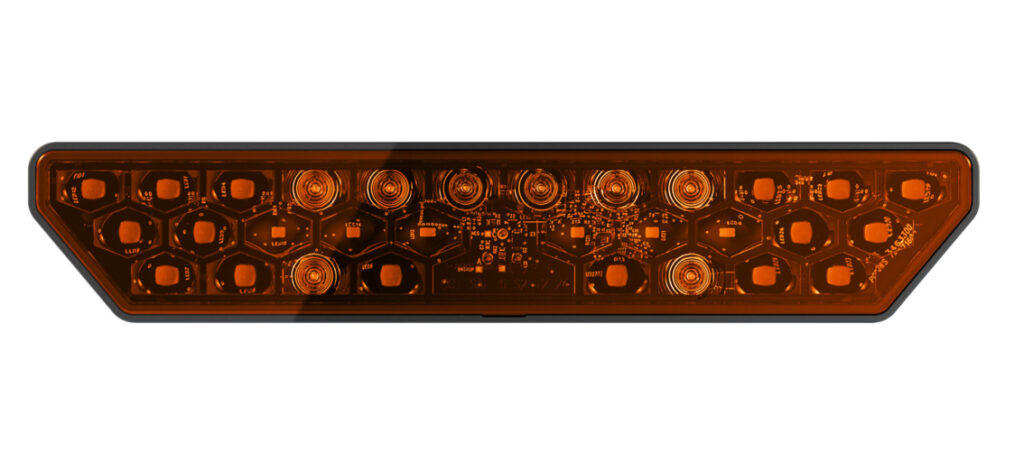

- Direction Indicator (SAE/ECE): Flange Mount: 0348601, Post Mount: 0348611

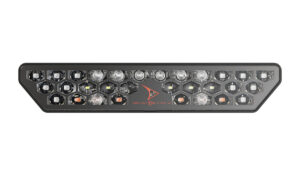

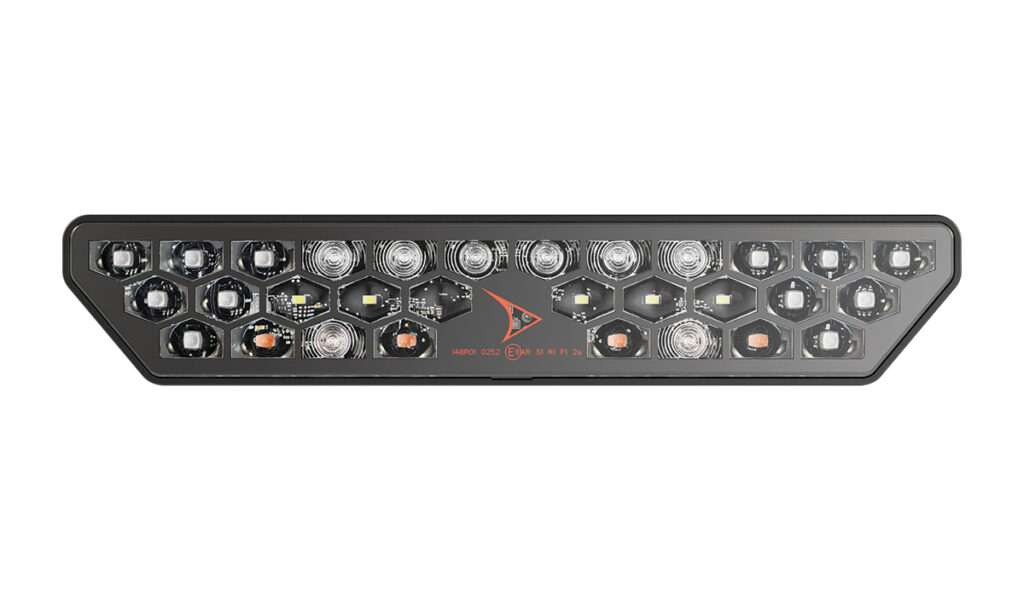

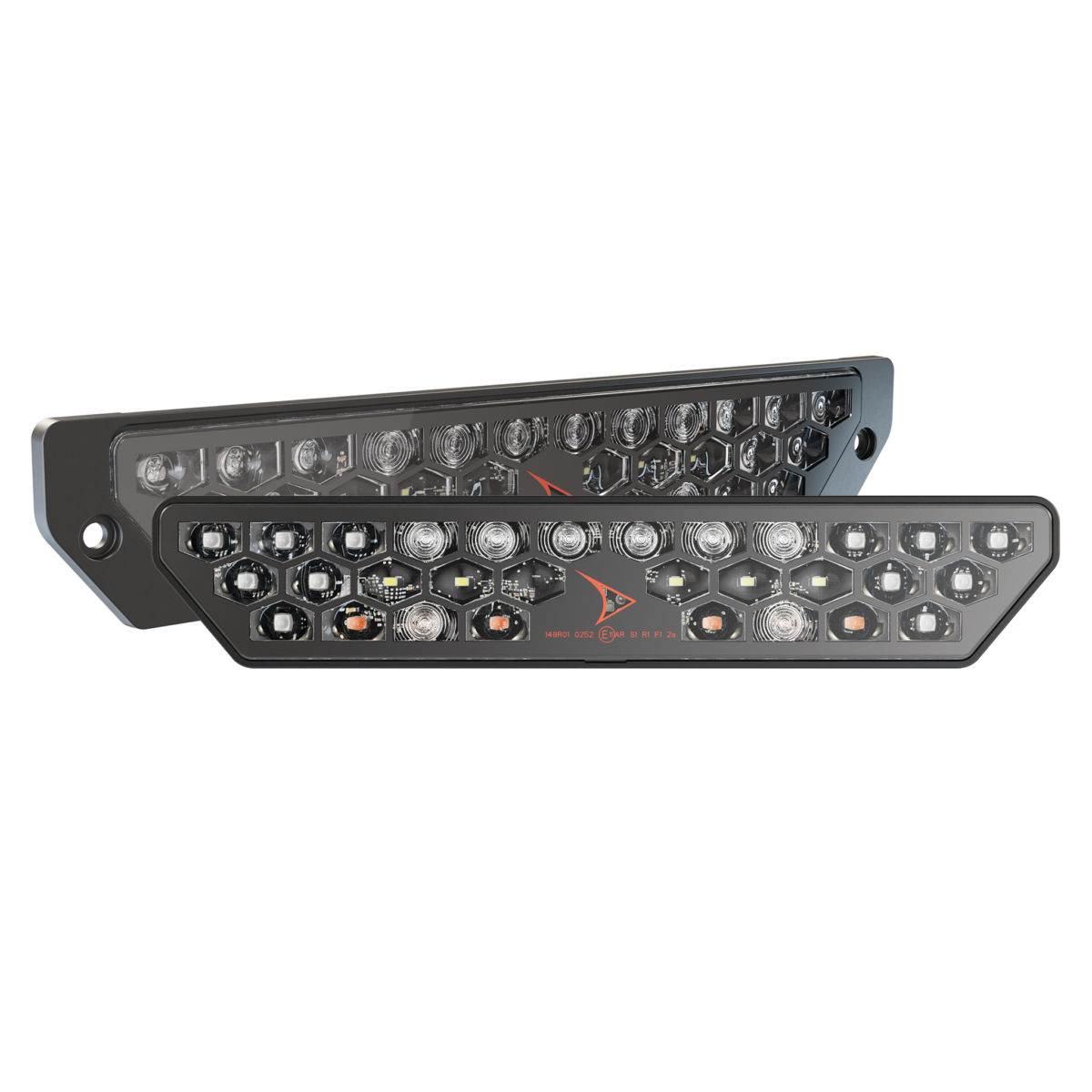

- Stop, Tail, Direction Indicator, Rear Fog, and Reverse (ECE only): Flange Mount: 0348631, Post Mount: 0348641
- Front Position & Direction Indicator (SAE only): Flange Mount: 0348691, Post Mount: 0348701
- Reverse (SAE/ECE): Flange Mount: 0443721, Post Mount: 0443731
Note: Single packs include connector kits & speed nuts.
Craft your next vehicle with the Model 260 LED Rear Combination Light—a high-performance, OEM-ready solution built for durability, visibility, and design flexibility. Engineered to meet the demands of modern OEM vehicle lighting, the Model 260 delivers uncompromising quality, versatile mounting options, and long-lasting power. From commercial fleets to specialty builds, trust the Model 260 for reliable, regulation-compliant rear lighting performance that elevates your design and enhances your brand.
J.W. Speaker Model 260 LED Stop, Tail, Turn & Backup Lights Specifications ▲
Type / Beam Pattern / Lens | Options: SAE/ECE LED Stop & Tail Light w/ Flange or Post Mount & Red Lens SAE/ECE LED Indicator w/ Flange or Post Mount & Amber Lens ECE LED Stop, Tail, Indicator, Rear Fog, Reverse Light w/ Flange or Post Mount & Clear Lens SAE LED Front Position & Indicator w/ Flange or Post Mount & Amber Lens SAE/ECE LED Reverse Light w/ Flange or Post Mount & Clear Lens |
Input Voltage | 12-24V DC |
Operating Voltage | 9-30V DC |
Current Draw | 0.34A / 0.46A @ 12V DC (Stop), 0.04A / 0.046A @ 12V DC (Tail), 0.18A / 0.30A @ 12V DC (Turn), 0.18A / 0.74A @ 12V DC (Backup), 0.33A @ 12V DC (Fog) |
Shape | Stylised Trapezium |
Outer Lens Colour | Options: Red, Amber or Clear Lens |
Outer Lens Material | PMMA |
Housing | Black PC+ABS |
Mounting Type | Panel |
Operating Temp | -40 °C / -40 °F - 65 °C / 149 °F |
Housing Color | Black |

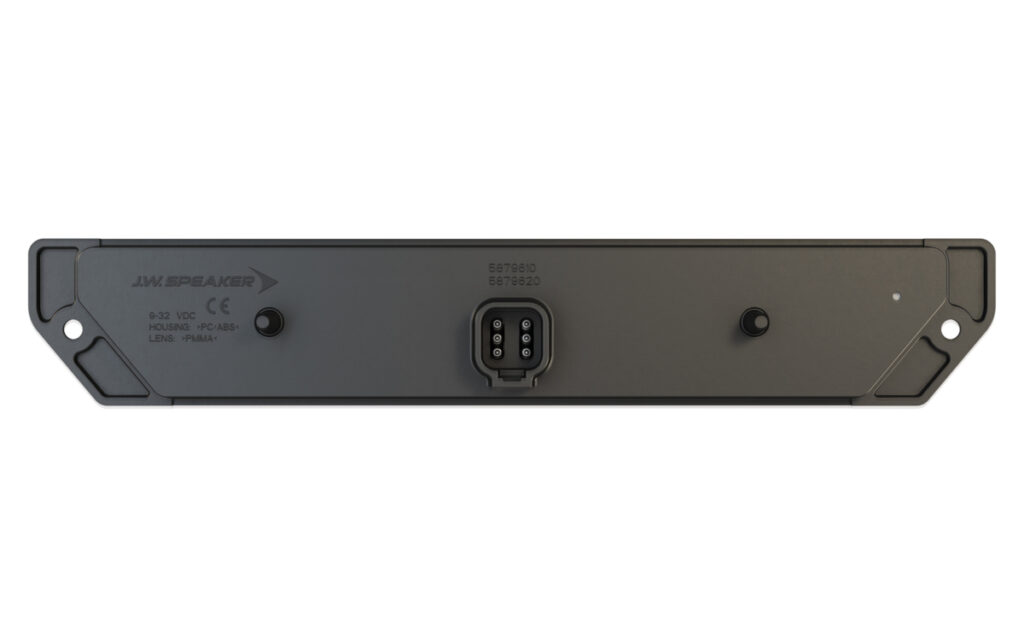

Mounting Hardware | JWS 5746260 Deutsch DT06-3S or JWS 5743090 Deutsch DT06-6P |
IP Rating | IEC IP67, IP69K |
Height | 52.60 mm / 2.07 in or 52.45 mm / 2.06 in |
Width | 303.98 mm / 11.97 in or 274.82 mm / 10.82 in |

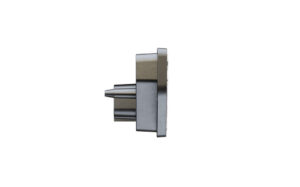

Depth | 39.58 mm / 1.56 in |
Product Weight | 0.43 lbs / 0.2 kgs or 0.42 lbs / 0.19 kgs |
J.W. Speaker Model 260 LED Stop, Tail, Turn & Backup Lights Specification Flyer (PDF) ▲

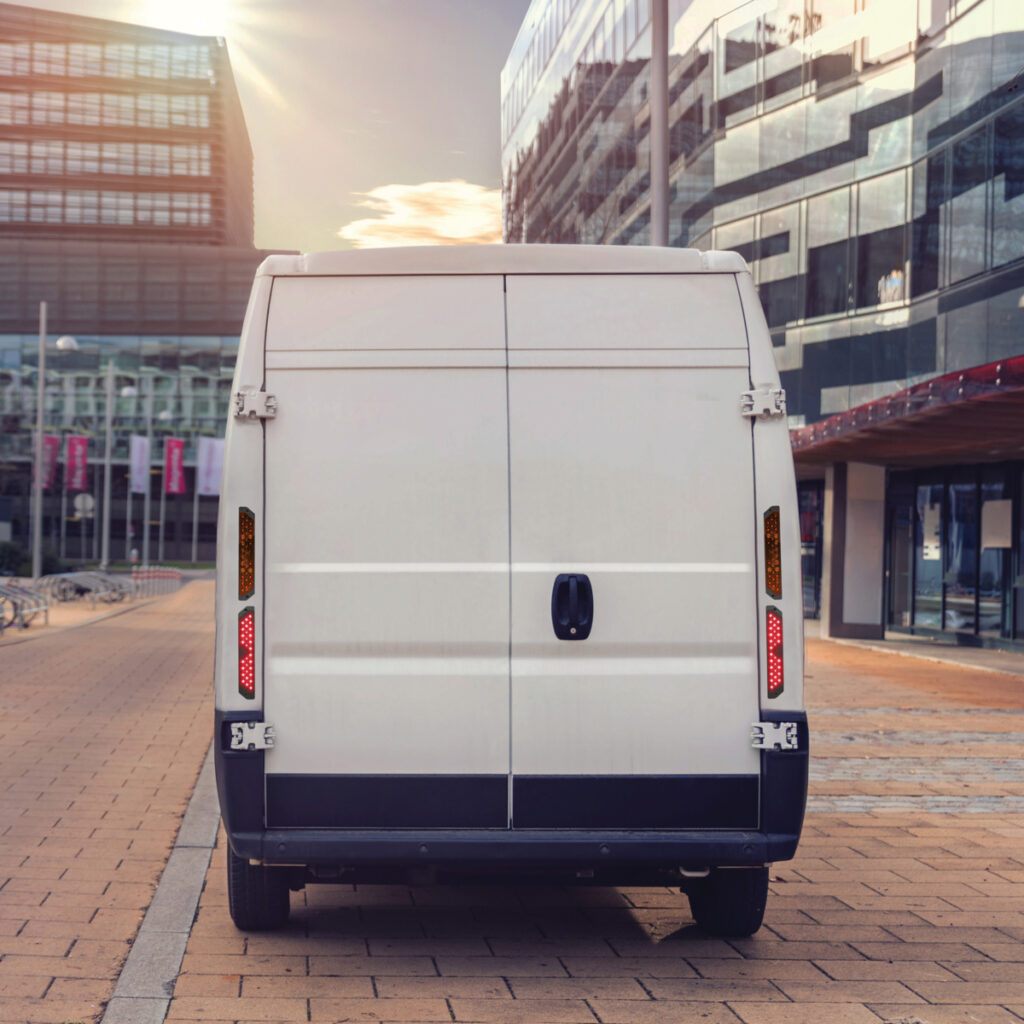

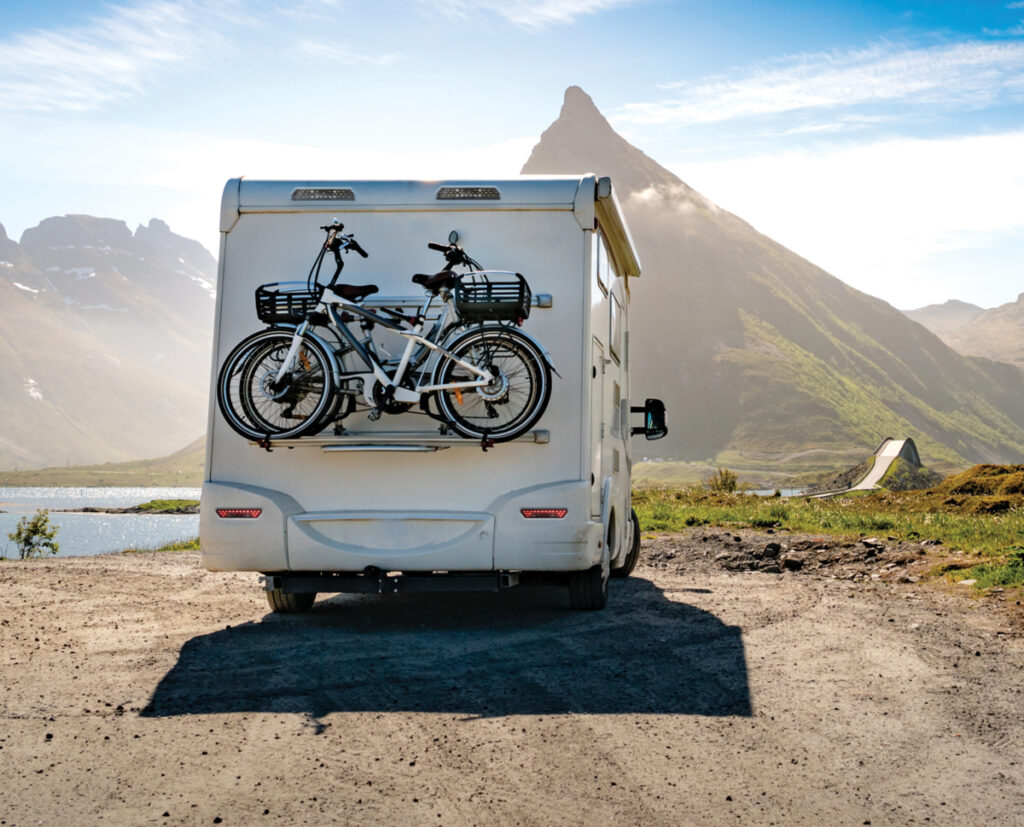

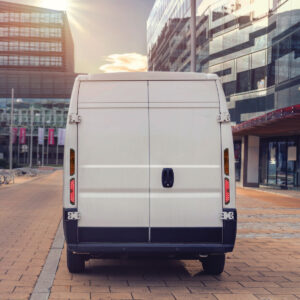

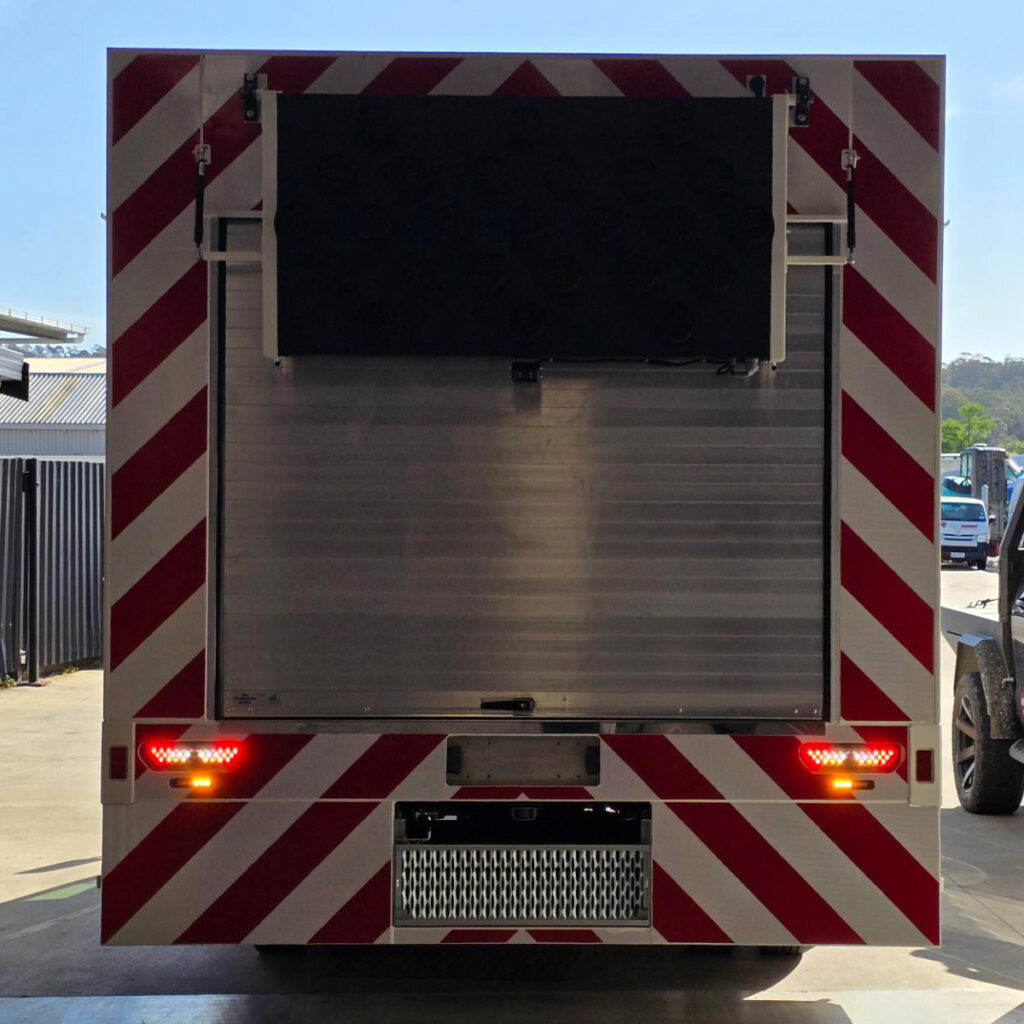

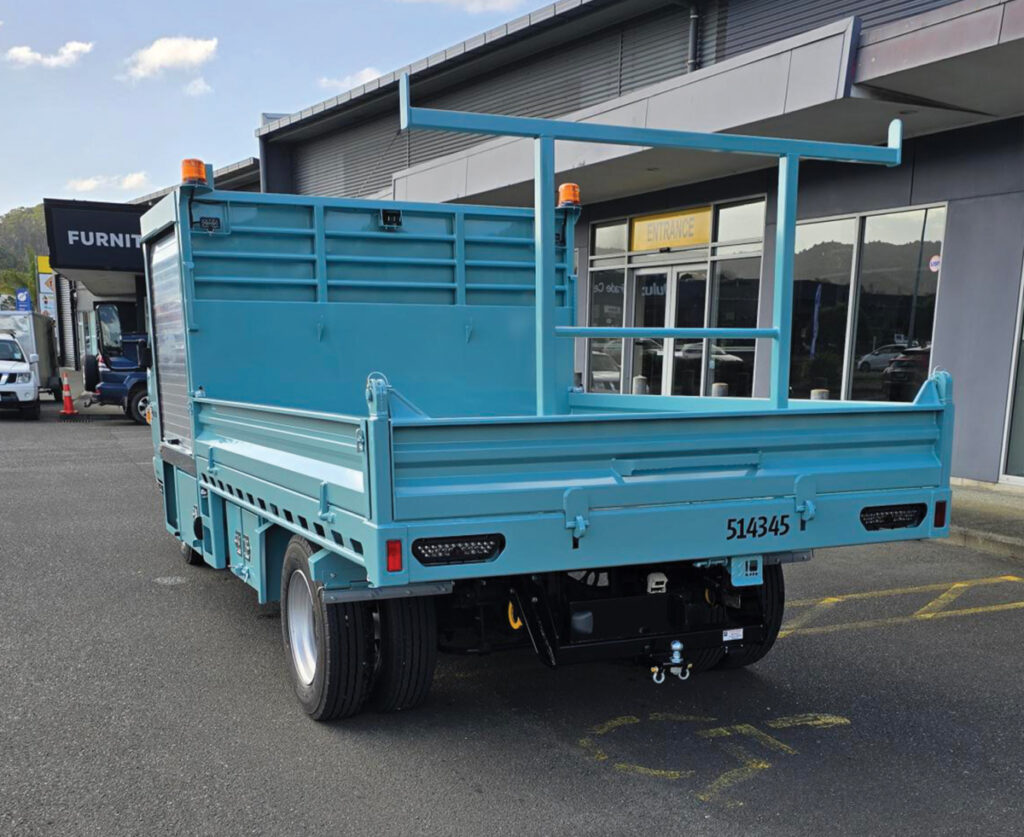

Applications: Agriculture, construction, industrial, material handling, specialty vehicles truck & bus
J.W. Speaker Model 260 LED Stop, Tail, Turn & Backup Lights Parts Enquiry ▲
J.W. Speaker Model 260 LED Stop, Tail, Turn & Backup Lights, 12-24V SAE/ECE LED Stop & Tail Light w/ Flange Mount & Red Lens
J.W. Speaker Model 260 LED Stop, Tail, Turn & Backup Lights, 12-24V SAE/ECE LED Stop & Tail Light w/ Post Mount & Red Lens
J.W. Speaker Model 260 LED Stop, Tail, Turn & Backup Lights, 12-24V SAE/ECE LED Directional Indicator w/ Flange Mount & Amber Lens
J.W. Speaker Model 260 LED Stop, Tail, Turn & Backup Lights, 12-24V SAE/ECE LED Directional Indicator w/ Post Mount & Amber Lens
J.W. Speaker Model 260 LED Stop, Tail, Turn & Backup Lights, 12-24V ECE Stop, Tail, Direction Indicator, Rear Fog, Reverse Light w/ Flange Mount & Clear Lens
J.W. Speaker Model 260 LED Stop, Tail, Turn & Backup Lights, 12-24V ECE LED Stop, Tail, Direction Indicator, Rear Fog & Reverse Light w/ Post Mount & Clear Lens
J.W. Speaker Model 260 LED Stop, Tail, Turn & Backup Lights, 12-24V SAE LED Front Position & Direction Indicator w/ Flange Mount & Amber Lens
J.W. Speaker Model 260 LED Stop, Tail, Turn & Backup Lights, 12-24V SAE LED Front Position & Directional Indicator w/ Post Mount & Amber Lens
J.W. Speaker Model 260 LED Stop, Tail, Turn & Backup Lights, 12-24V SAE/ECE LED Reverse Light w/ Flange Mount & Clear Lens
J.W. Speaker Model 260 LED Stop, Tail, Turn & Backup Lights, 12-24V SAE/ECE LED Reverse Light w/ Post Mount & Clear Lens
