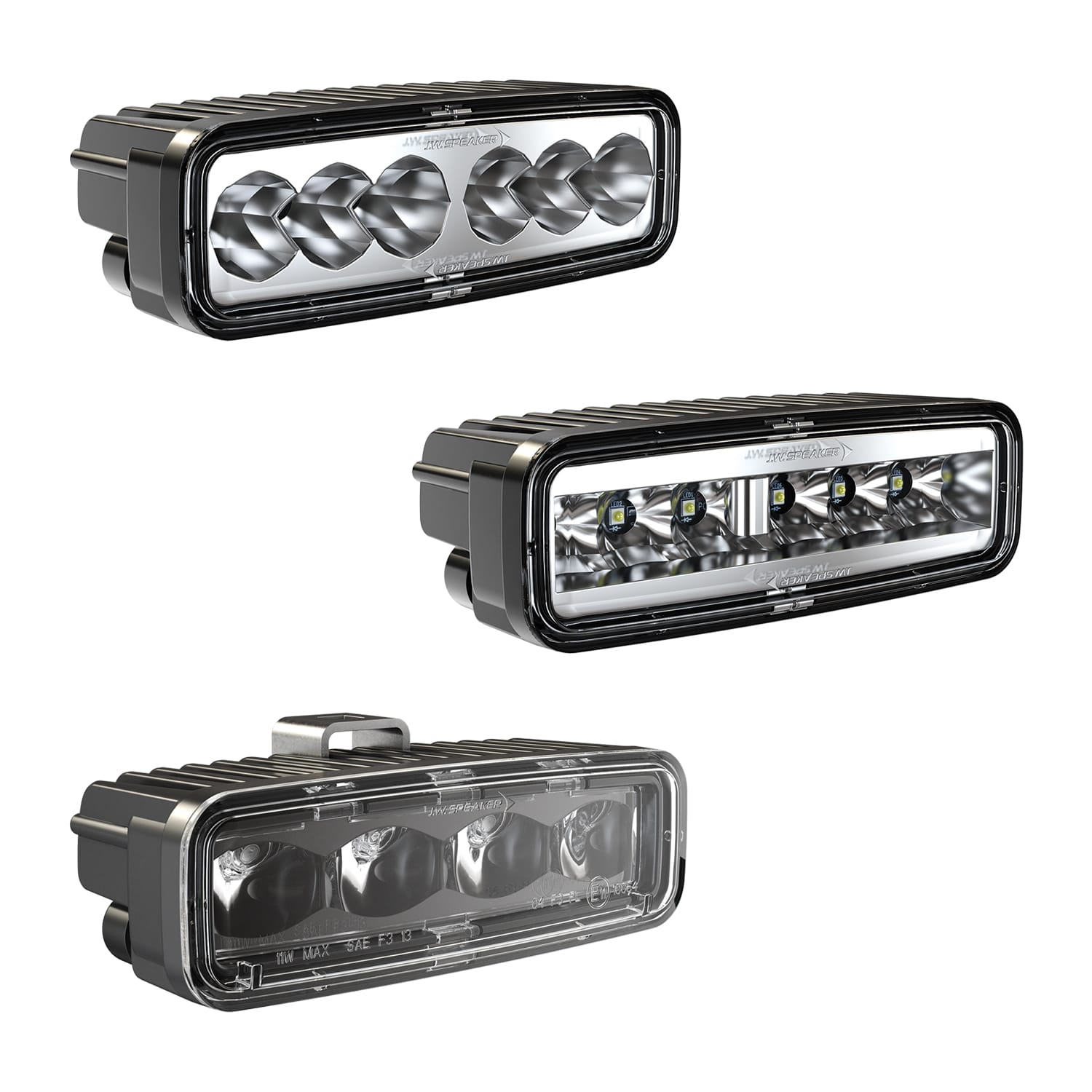

J.W. Speaker Model 791 LED Work Light

Brand: J.W. Speaker
Origin: USA

Manuf. PN: 1603511, 1603521, 1603601, 1603603, 8201241

Click for:

•  Features & Benefits
•  Photos & Images

•  Specs Table
•  Specs Flyer (PDF)

•  Parts Enquiry
•  Related Products

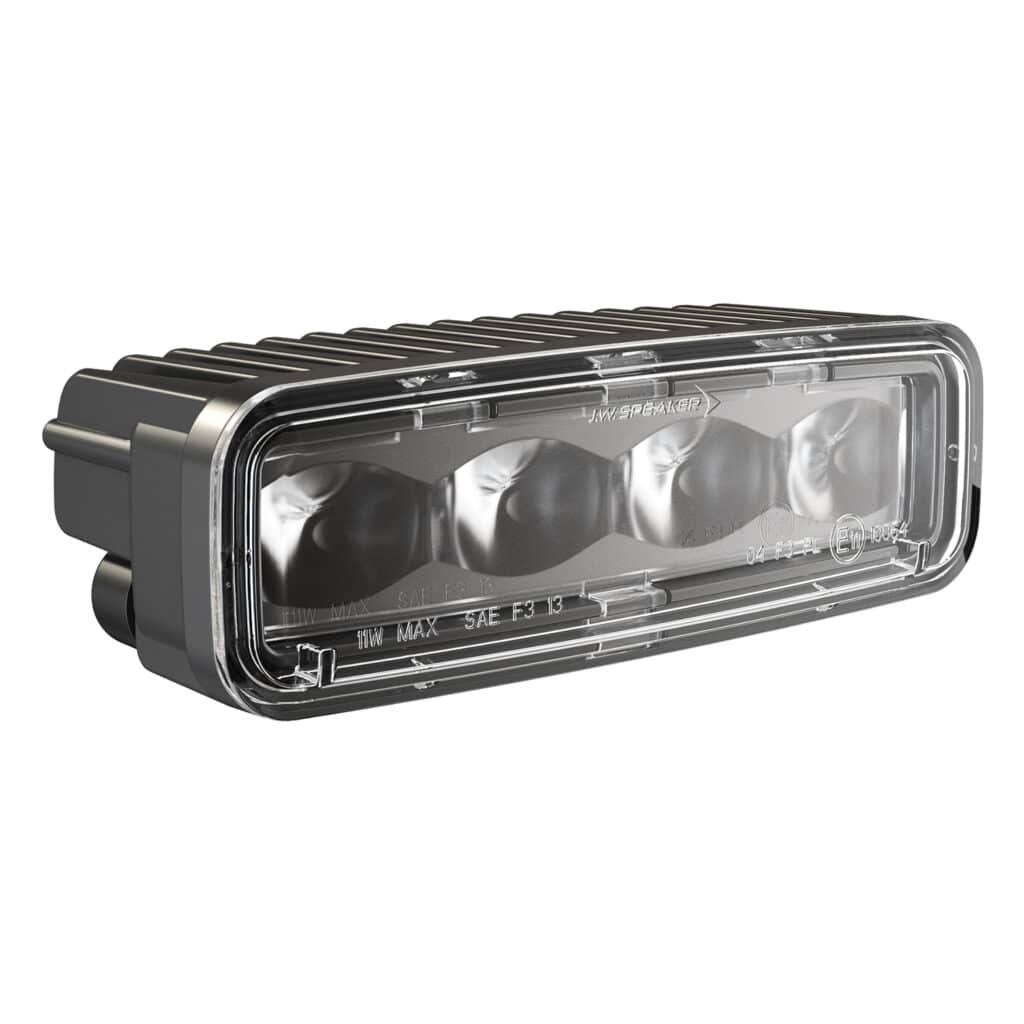

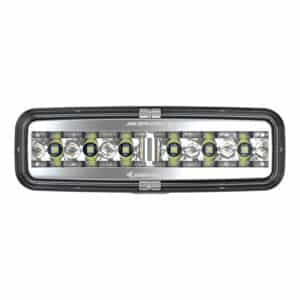

6” x 2” LED Work Light

The new Model 791 combines high performance optics and a compact design to provides a powerful punch and mount almost anywhere! Designed with rugged aluminum housing and universal mounting bracket, this 6″ x 2″ LED work light is ideal for a variety of applications, anywhere from off-road to agriculture.

J.W. Speaker Model 791 LED Work Light Features & Benefits  ▲

• The rugged aluminum housing is highly durable and lightweight
• Convenient, bright-white work light offering maximum visibility
• Available in driving light and flood beam patterns

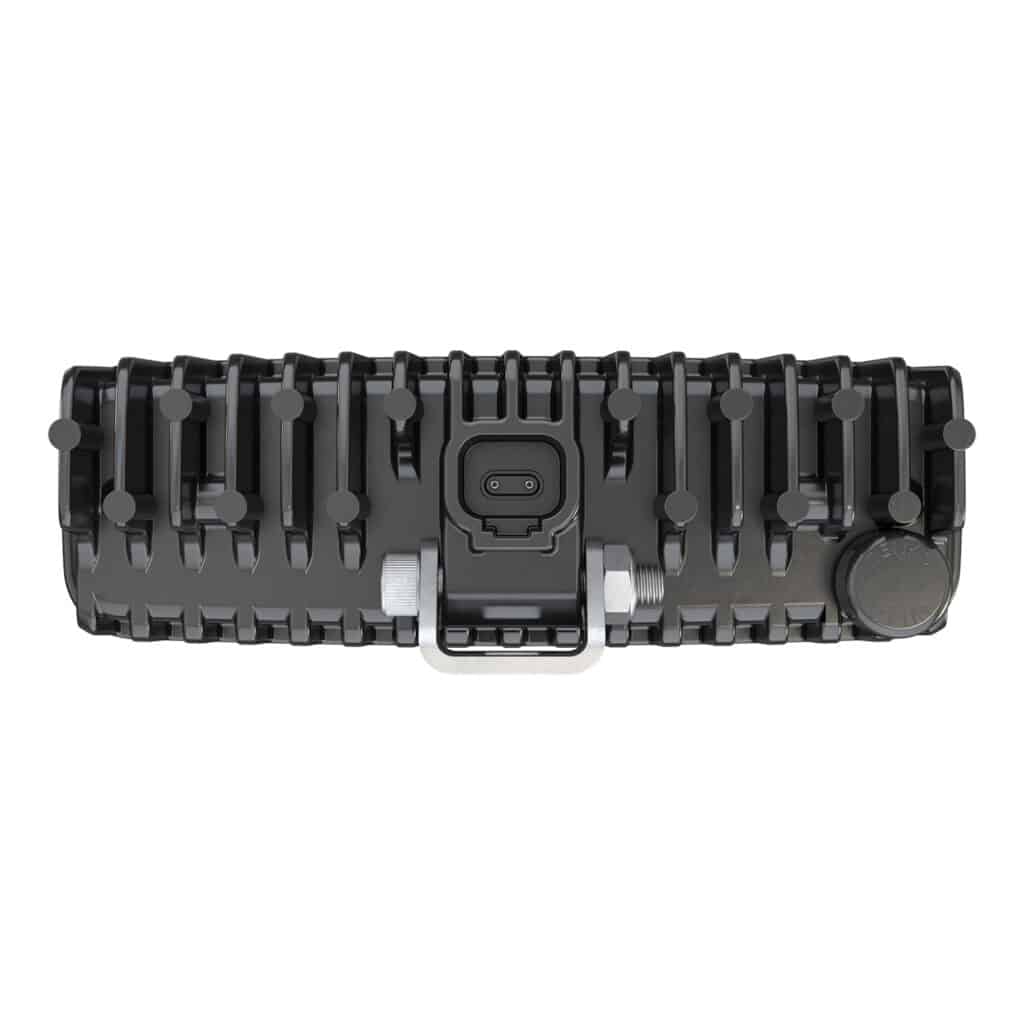

• Universal mounting bracket provides flexible mounting options for a variety of applications

J.W. Speaker Model 791 LED Work Light Specifications  ▲

Input Voltage	12-24V DC; 12V DC
Operating Voltage	9-32V DC; 10-18V DC
Transient Spike Protection	F150V Peak @ 1 HZ-100 Pulses
Raw Lumen Output	1,820 lm; 800 lm
Effective Lumen Output	1,150 lm; 1,200 lm; 250 lm
Nominal LED Color Temperature	5000 K; 4750 K

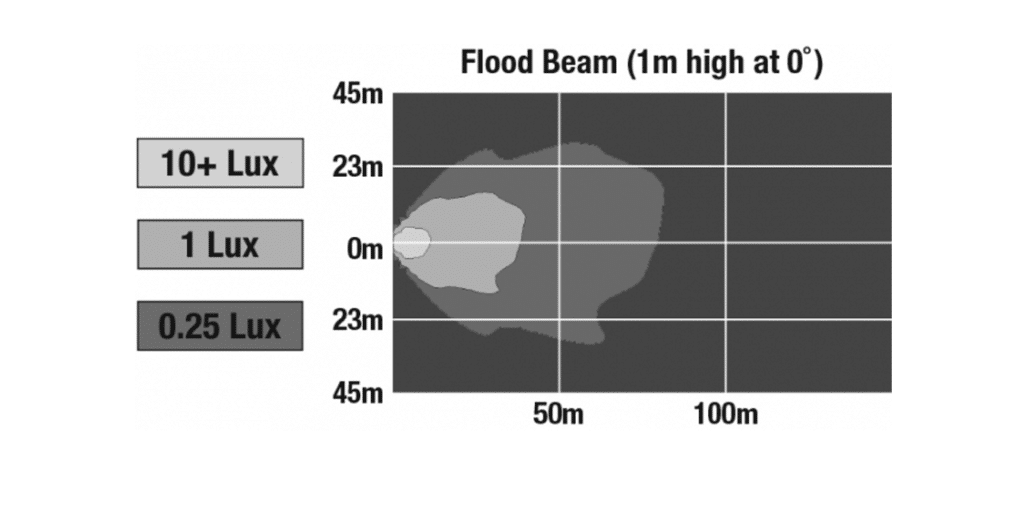

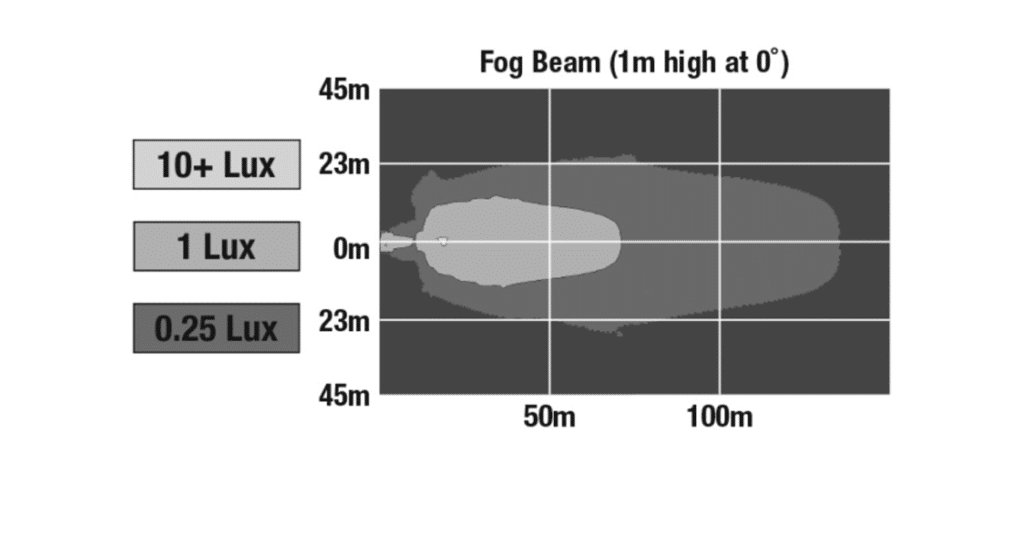

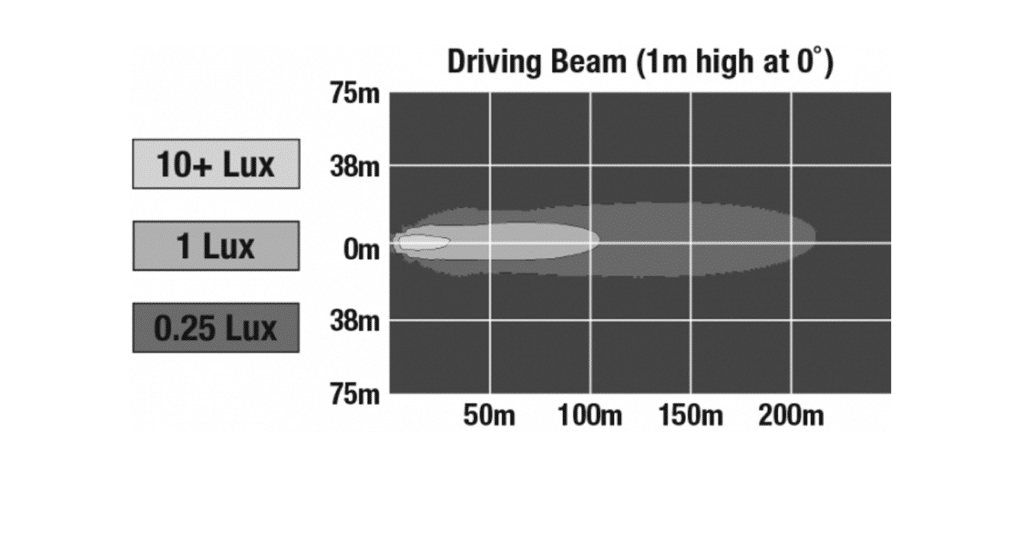

Beam Patterns	Forward Lighting - Driving; Flood; Fog
Outer Lens Material	Polycarbonate
Outer Lens Color	Clear
Housing Material	Die-Cast Aluminum
Housing Color	Black
Bezel Color	Chrome / Black

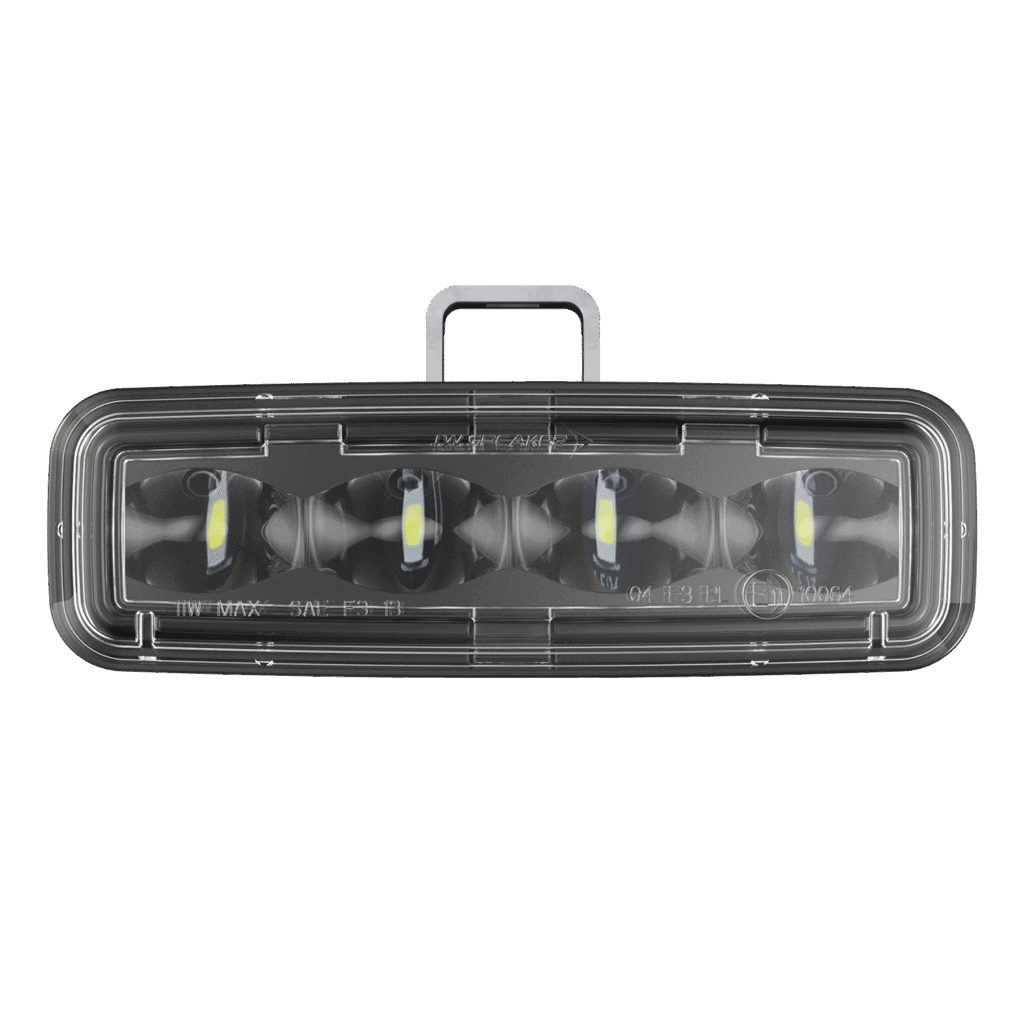

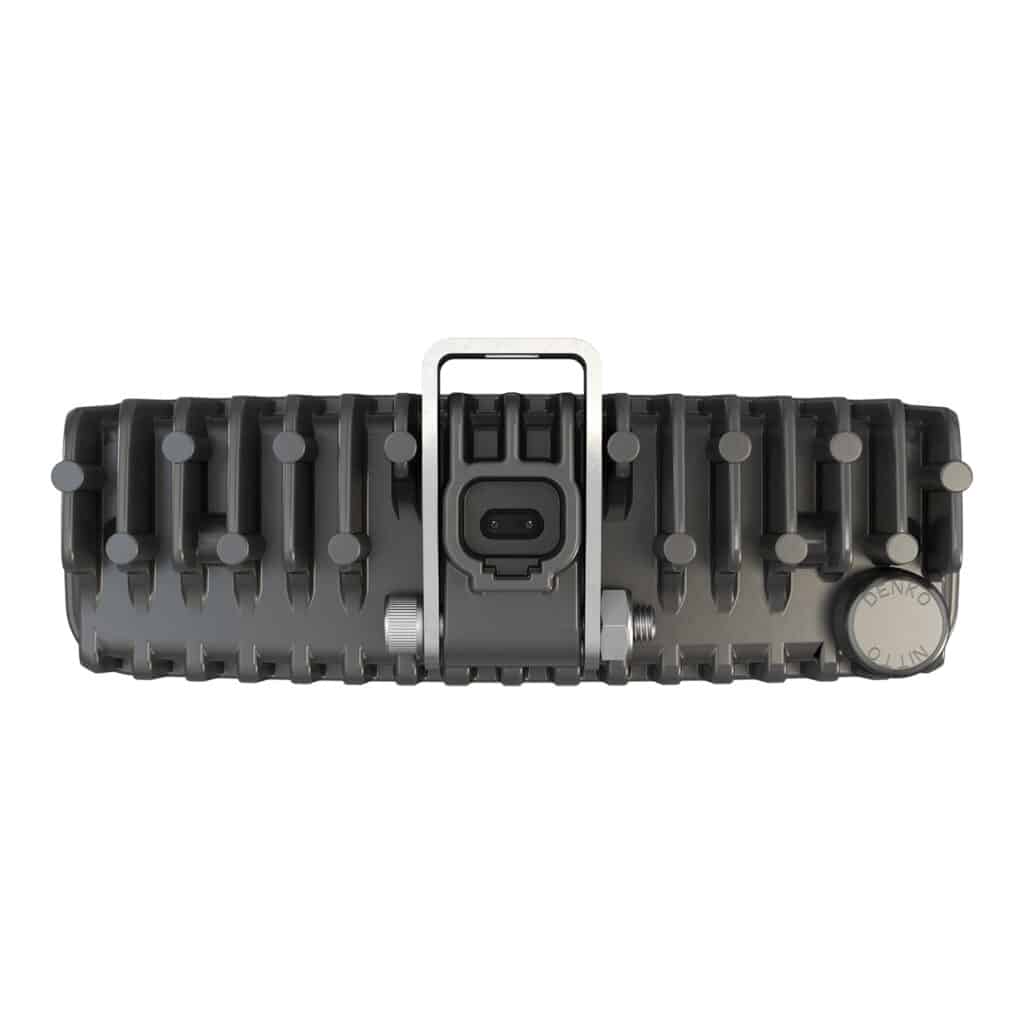

Mounting Type	Pedestal; Pedestal / Pendant
Operating Temperature	-40°C / -40°F – 65°C / 149°F
Compliance / Certifications	1603511 and 1603521: Buy America Standards, Eco Friendly, IEC IP67 1603601 and 1603603: Buy America Standards, ECE Reg 19, Eco Friendly, IEC IP69K, SAE J578, SAE J583

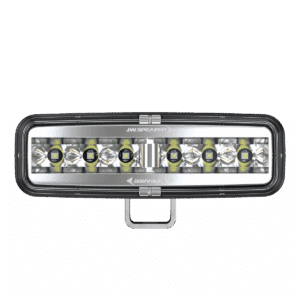

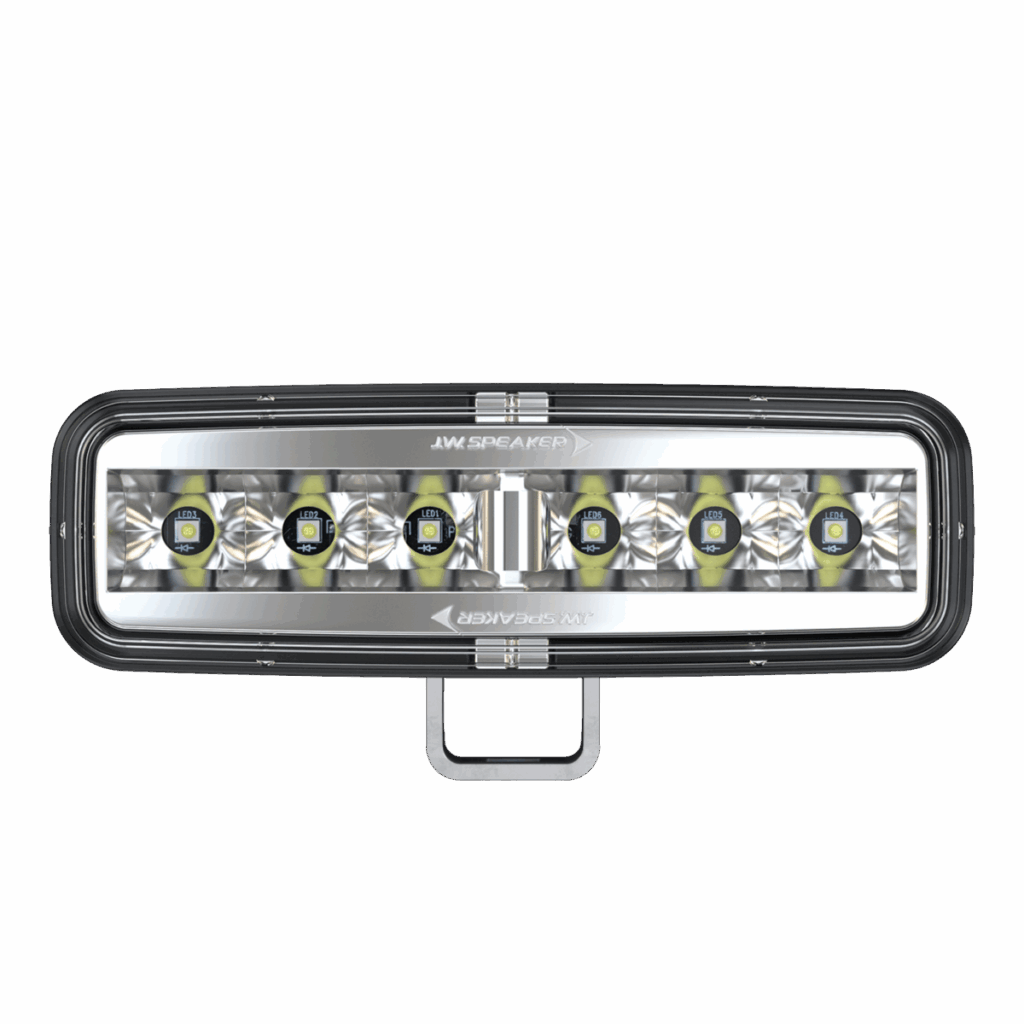

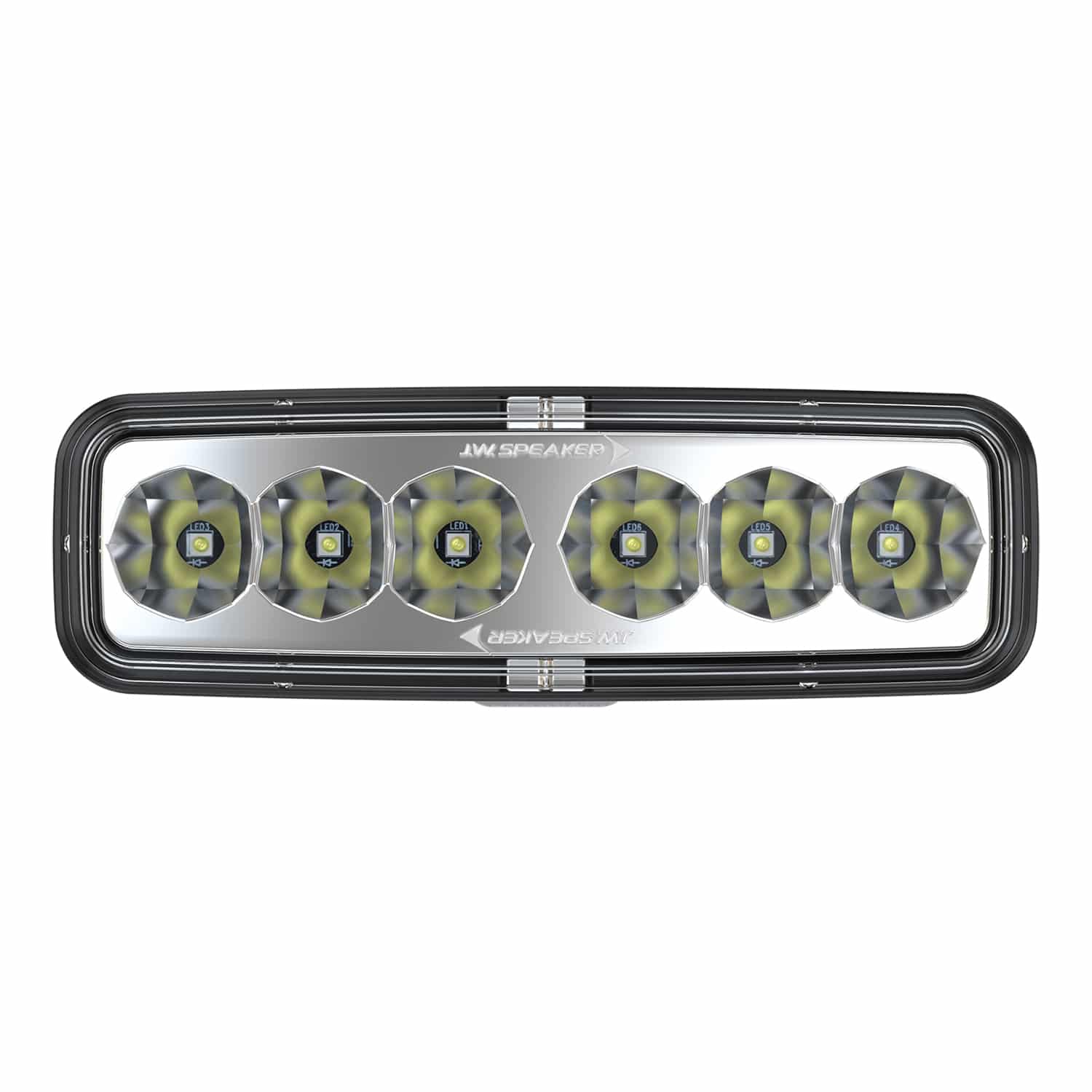

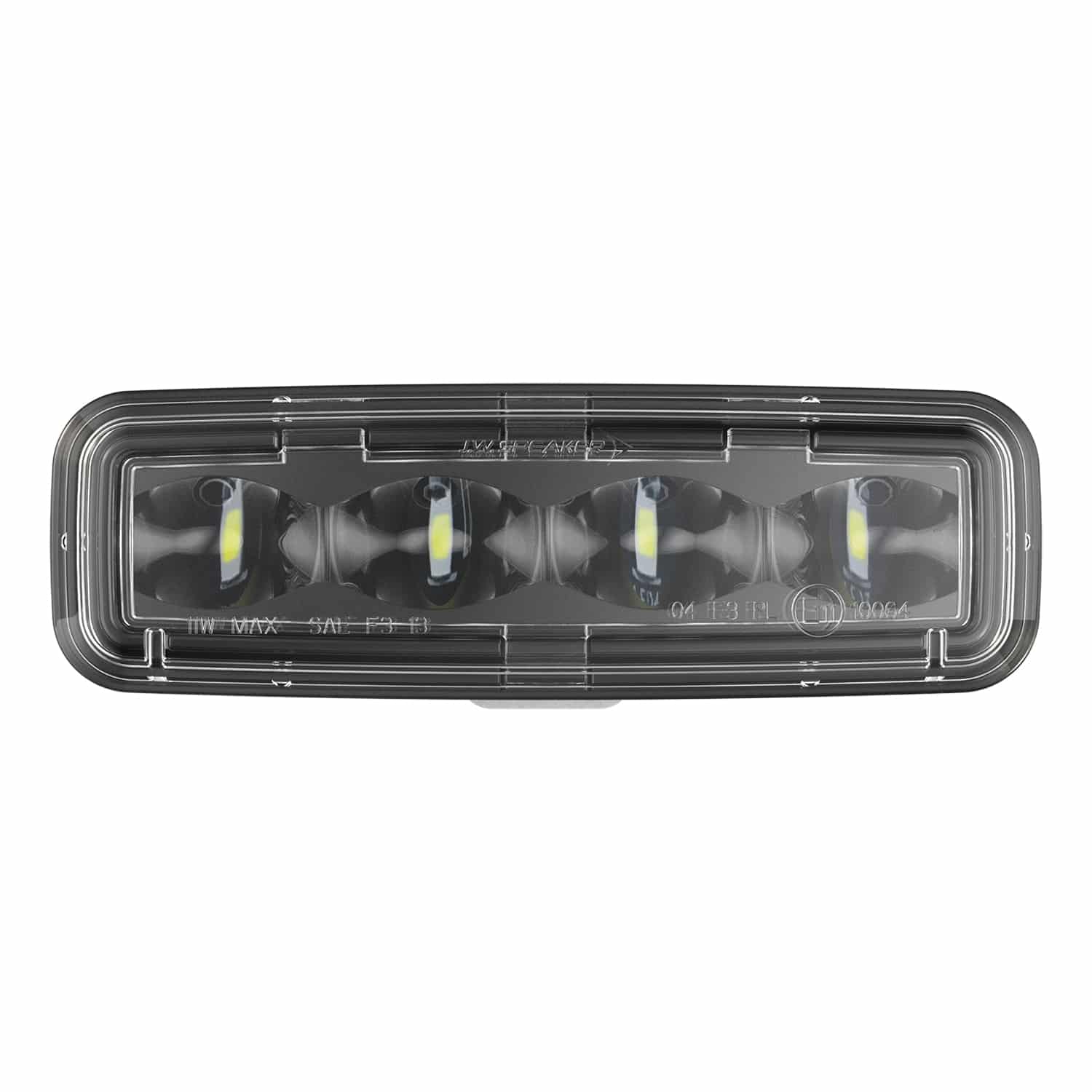

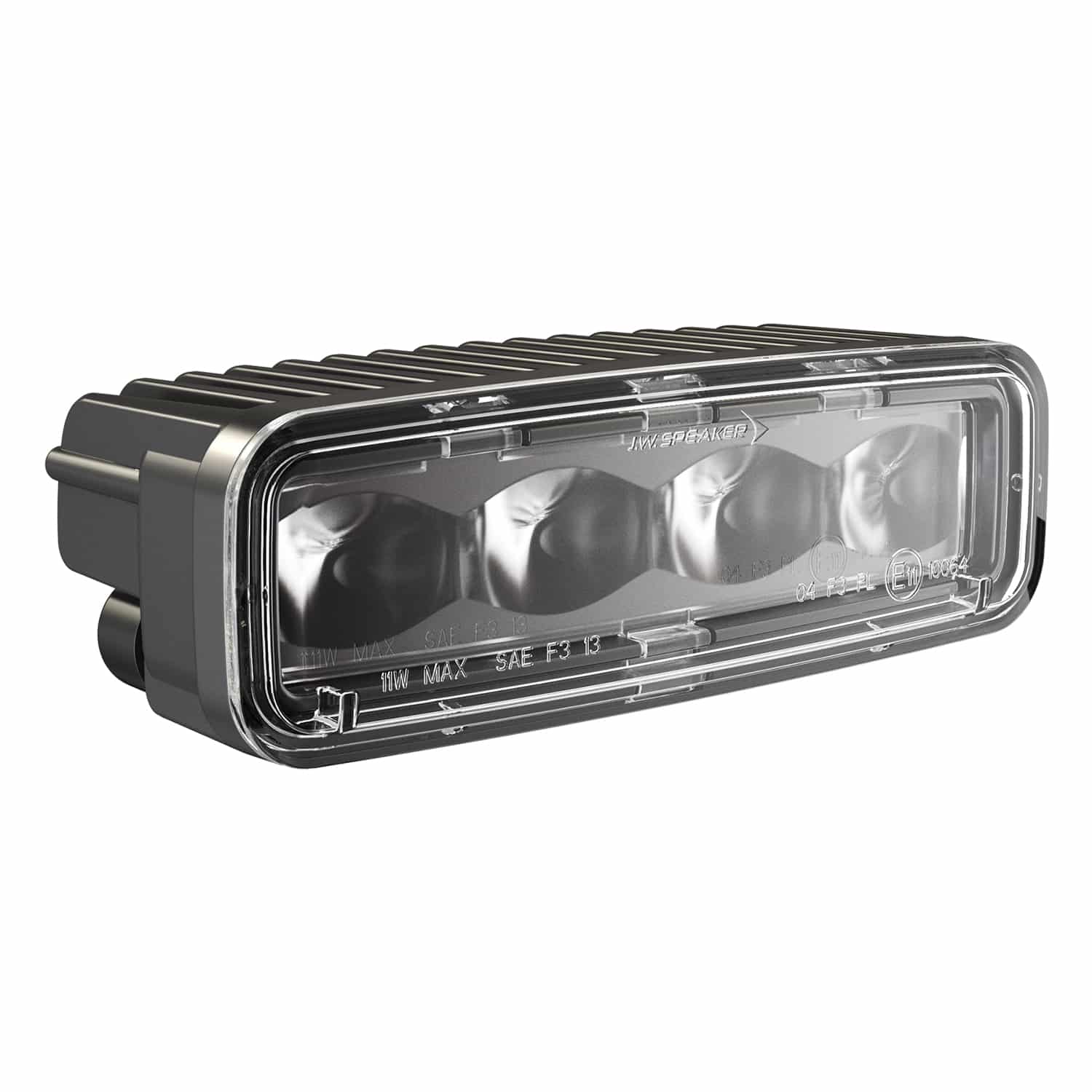

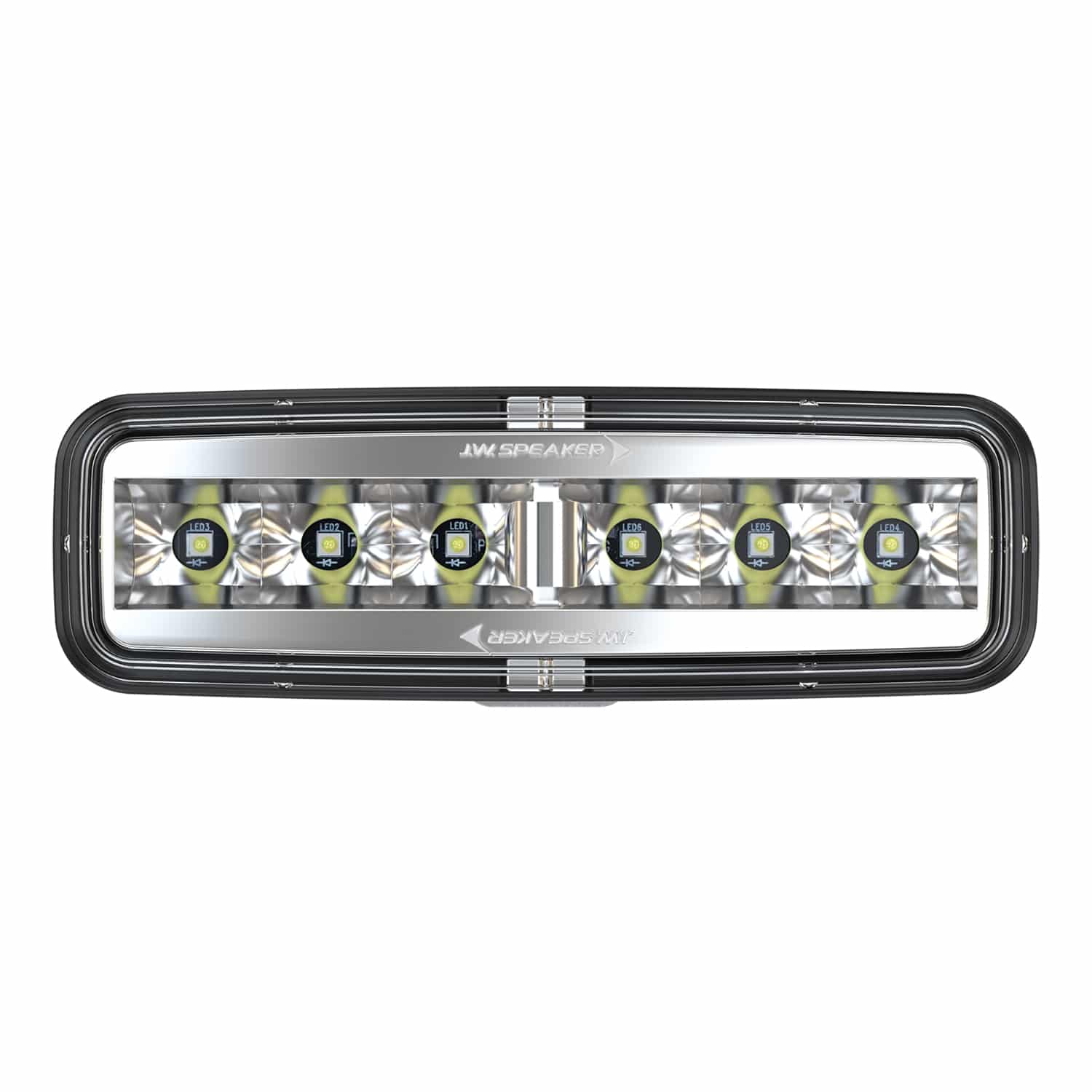

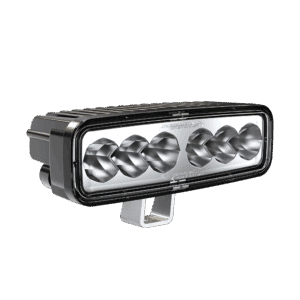

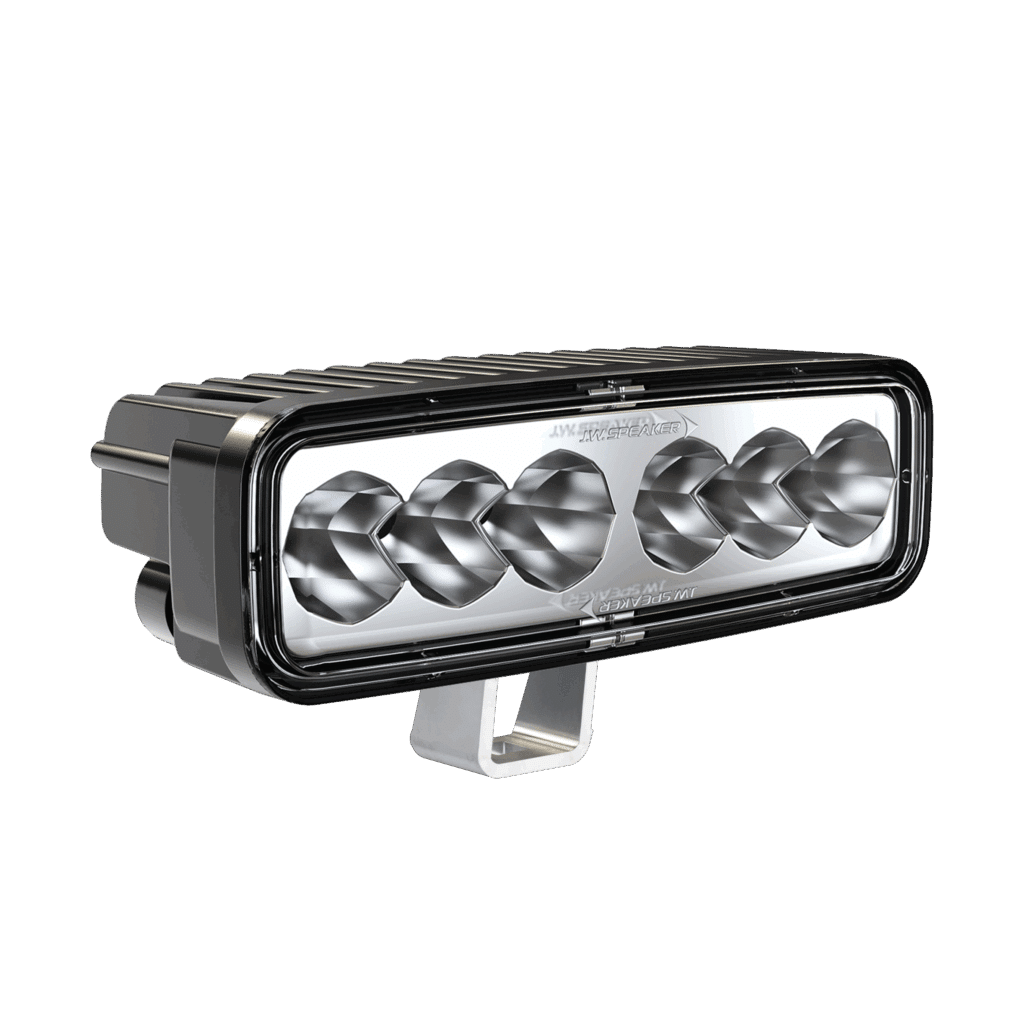

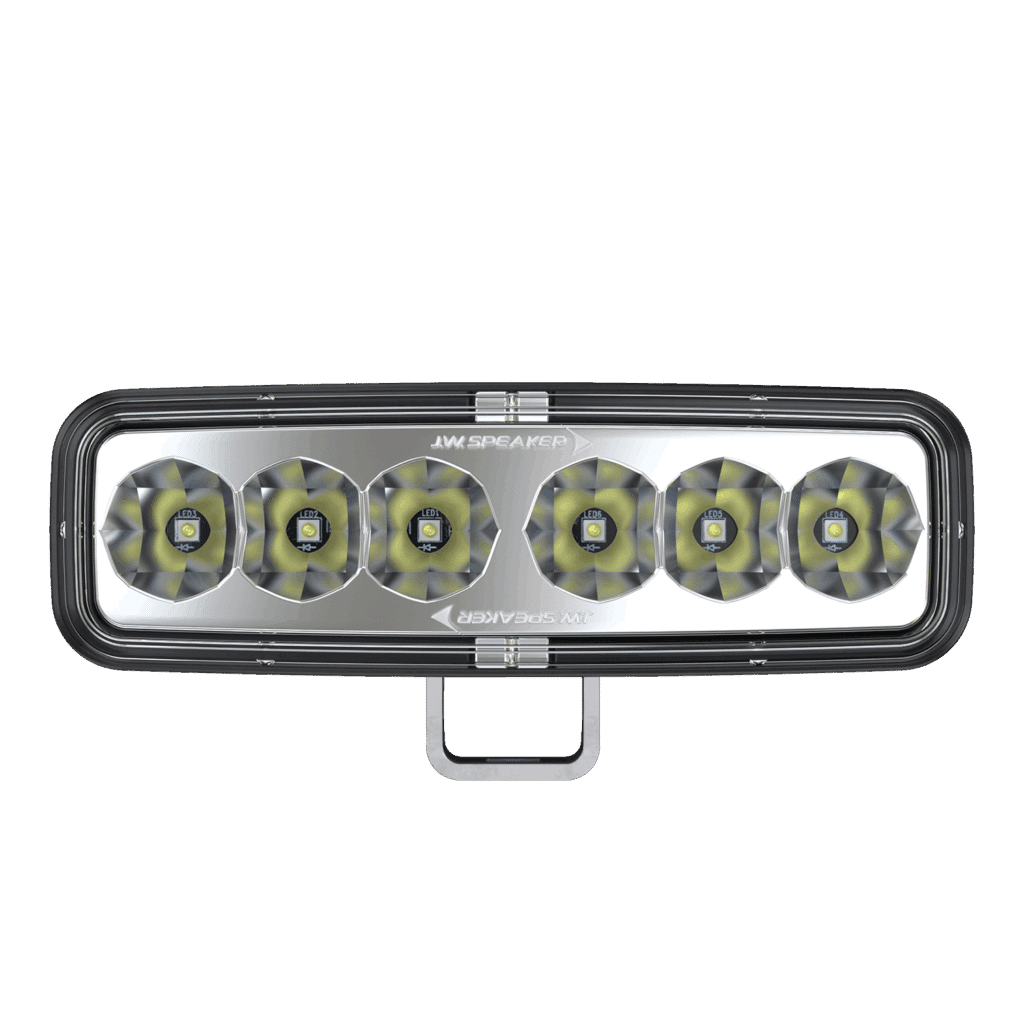

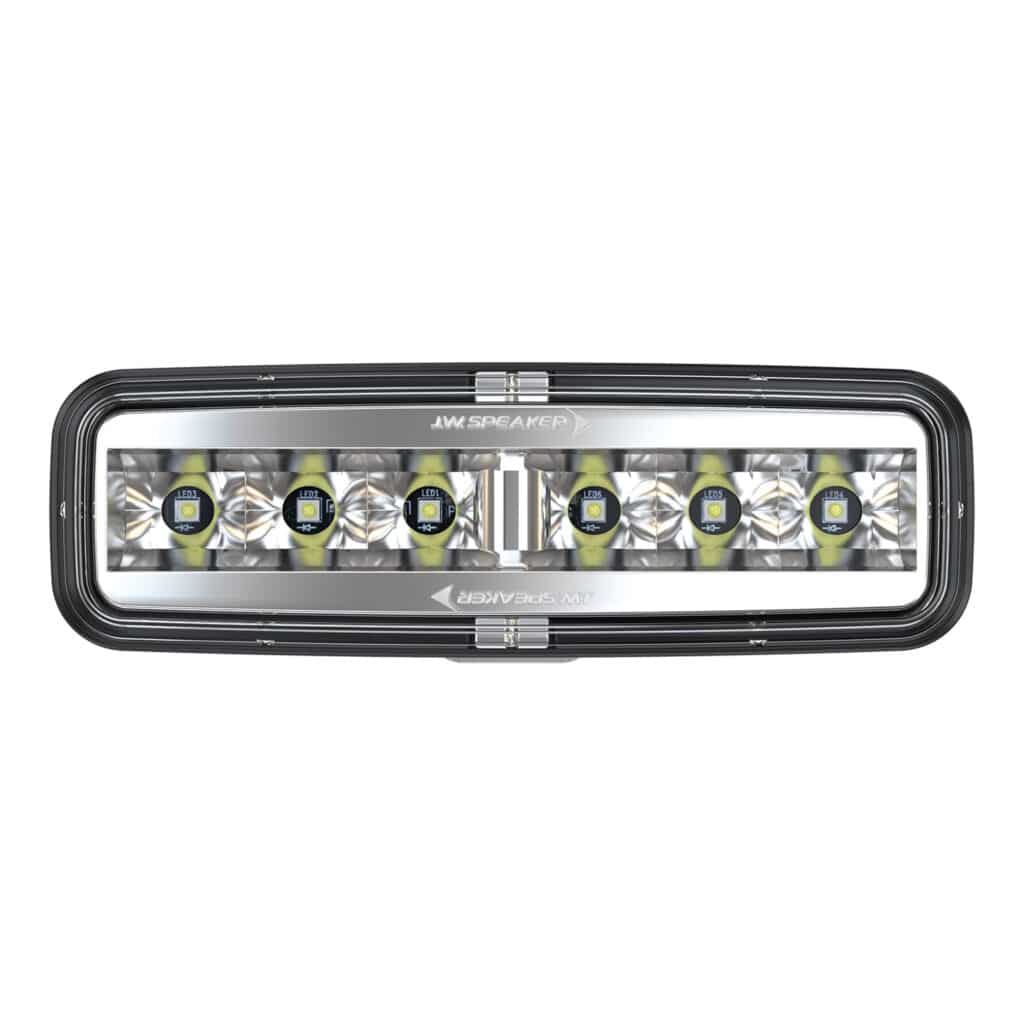

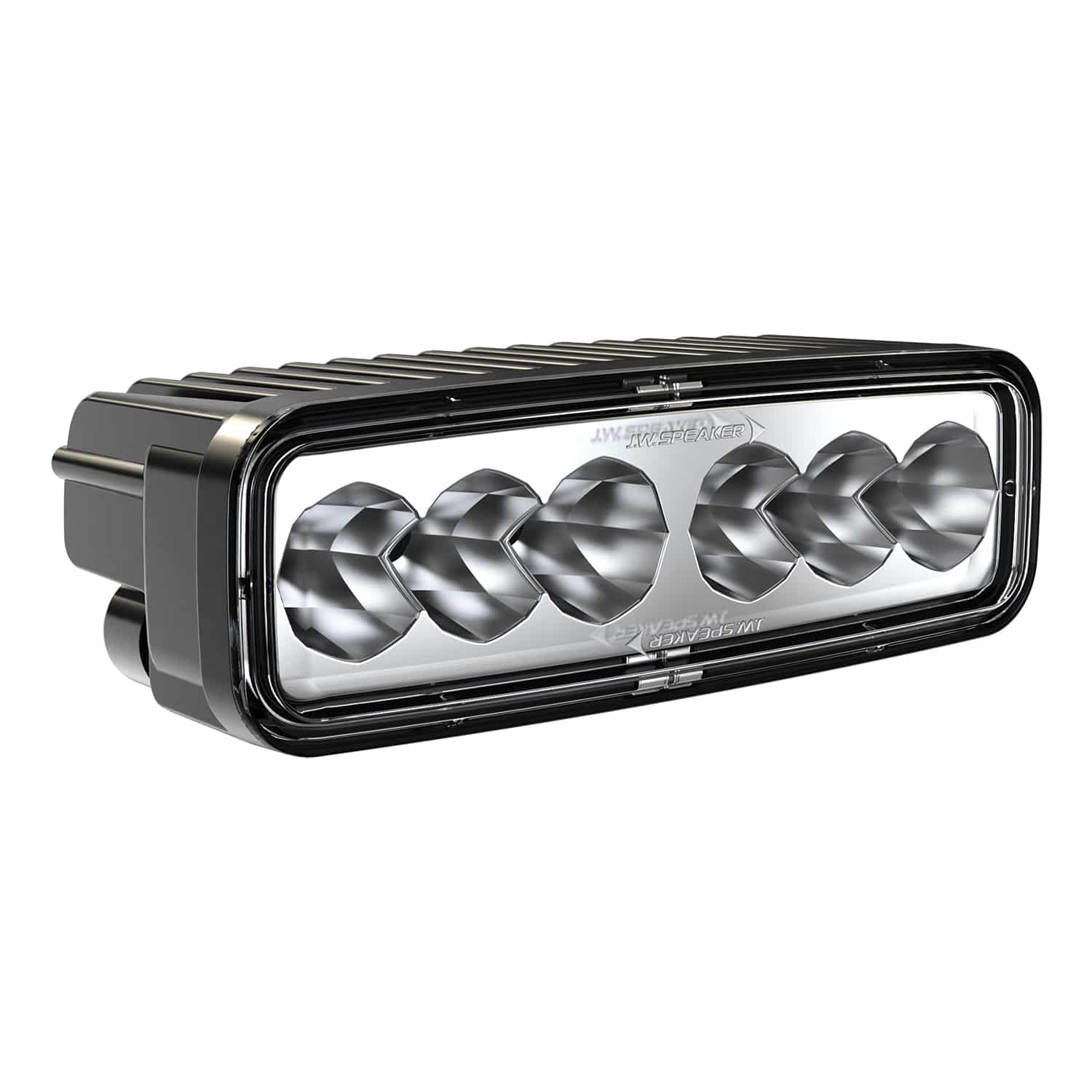

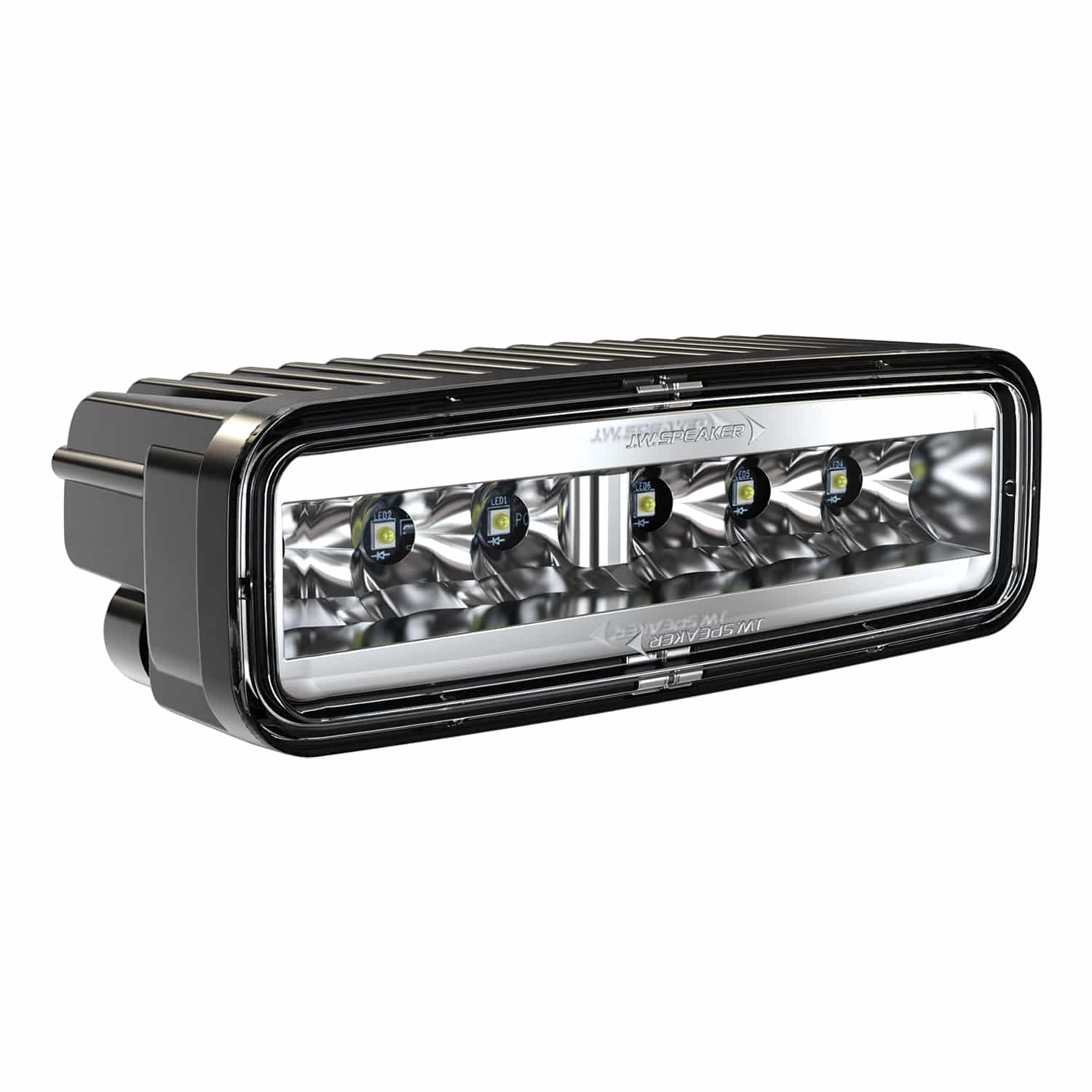

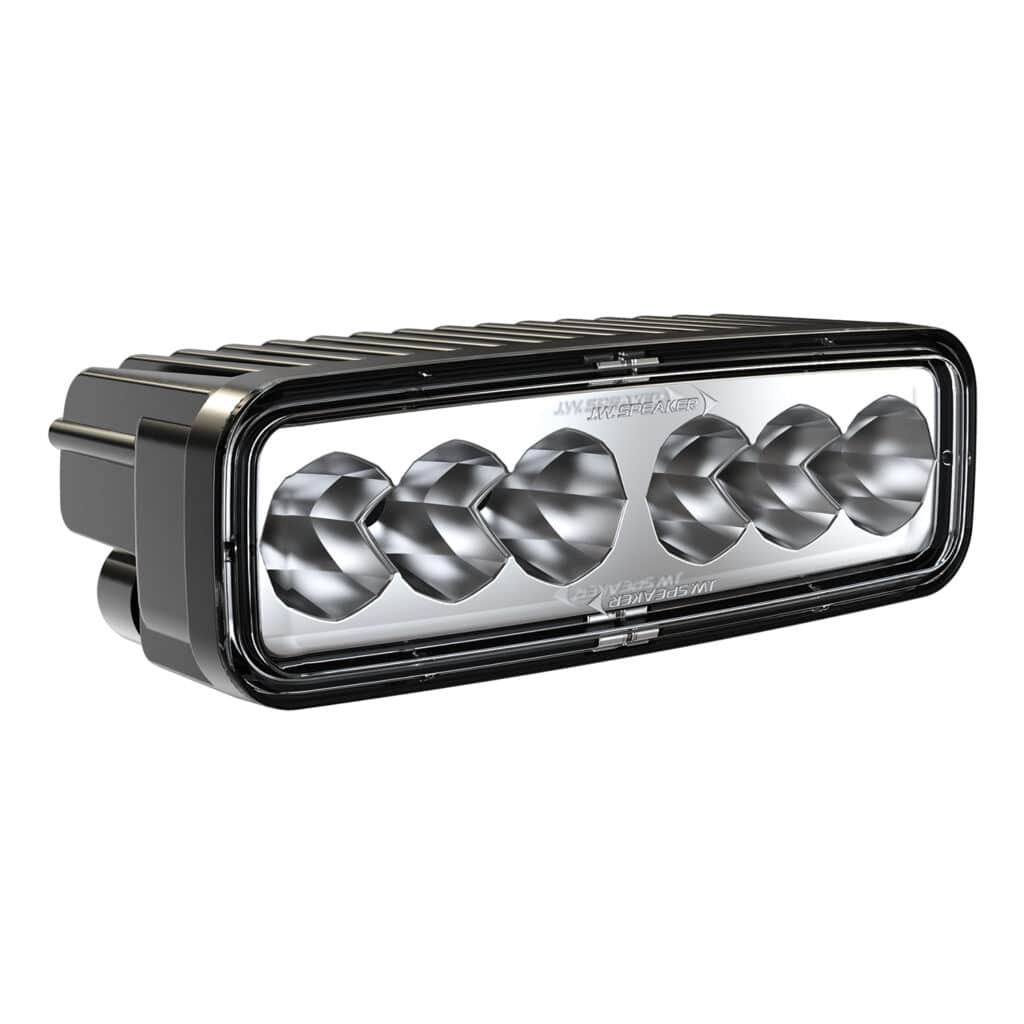

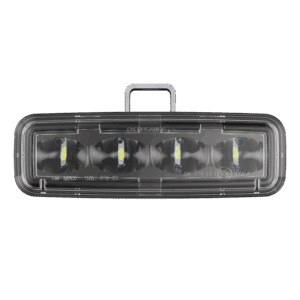

12-24V LED Driving Light (1603511)	12-24V LED Driving Light with Flood Beam Pattern (1603521)	12V DOT/ECE LED Fog Light (1603601)

J.W. Speaker Model 791 LED Work Light Specification Flyer (PDF)  ▲

• J.W. Speaker Model 791 LED Work Light Specification Flyer

Applications: Agriculture, Automotive, Construction, Industrial, Material Handling, Off-Road 4x4 Specialty Vehicles, Truck & Bus

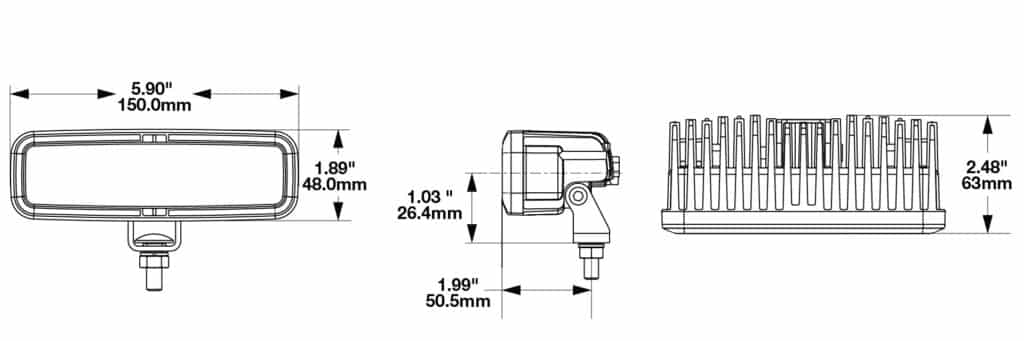

Dimensions:
Width: 5.91; 5.92" (150; 150.4 mm), Height: 1.89; 1.91; 1.94" (48; 48.4; 49.4 mm), Depth: 2.48" (62.9; 63 mm)
