Brand: J.W. Speaker
Origin: USA

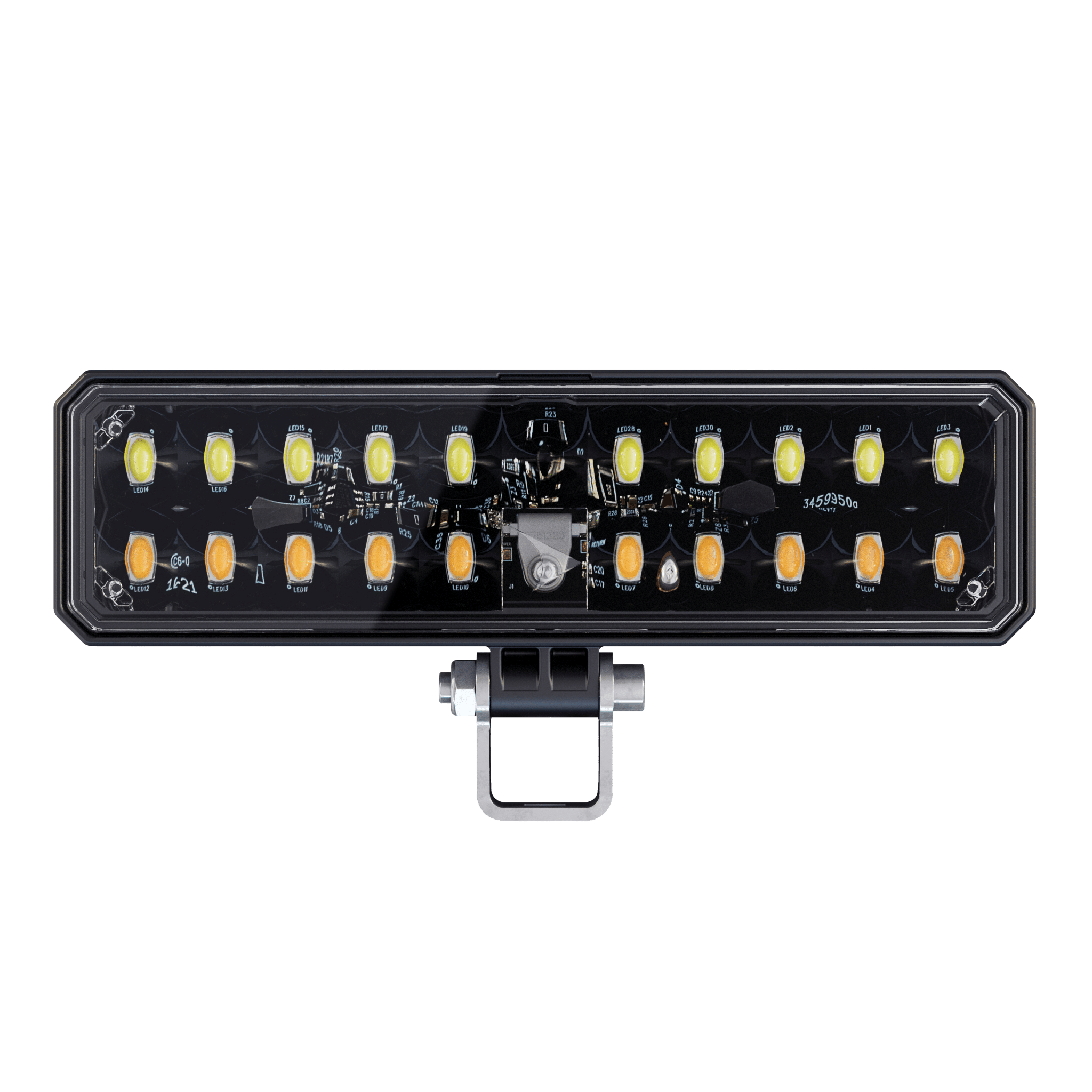

J.W. Speaker Model 893 Compact Work Light

Click for:

3″ x 8″ Work Light
The Model 893 is available in three configurations to meet jobsite needs: a Flood Beam work light for wide-area task illumination; an Eco-Friendly Anti-Glare version that minimizes reflection in mining, agriculture, and port operations; and the Dual Color Anti-Glare option, which lets you toggle between cool white and warm white with a single press of the power button, no extra wires or switches required. Operating equipment and machinery in dark, dusty environments demands consistent, high-quality lighting; the Model 893 answers that need across changing weather and lighting conditions.

Built with sturdy aluminum housing and an impact-resistant polycarbonate lens, the Model 893 shines brightest for crews in the harshest, most demanding worksites. The durable, pedestal-mounted and corrosion-resistant LED light fits easily on a wide range of work vehicles for nonstop productivity. Designed with thermal throttling protection for construction and agriculture applications, the Model 893 performs above the rest. Rated IP67 and IP69K, the Model 893 withstands bumps, thumps, and vibrations common when used in tough, weather-adverse sites.

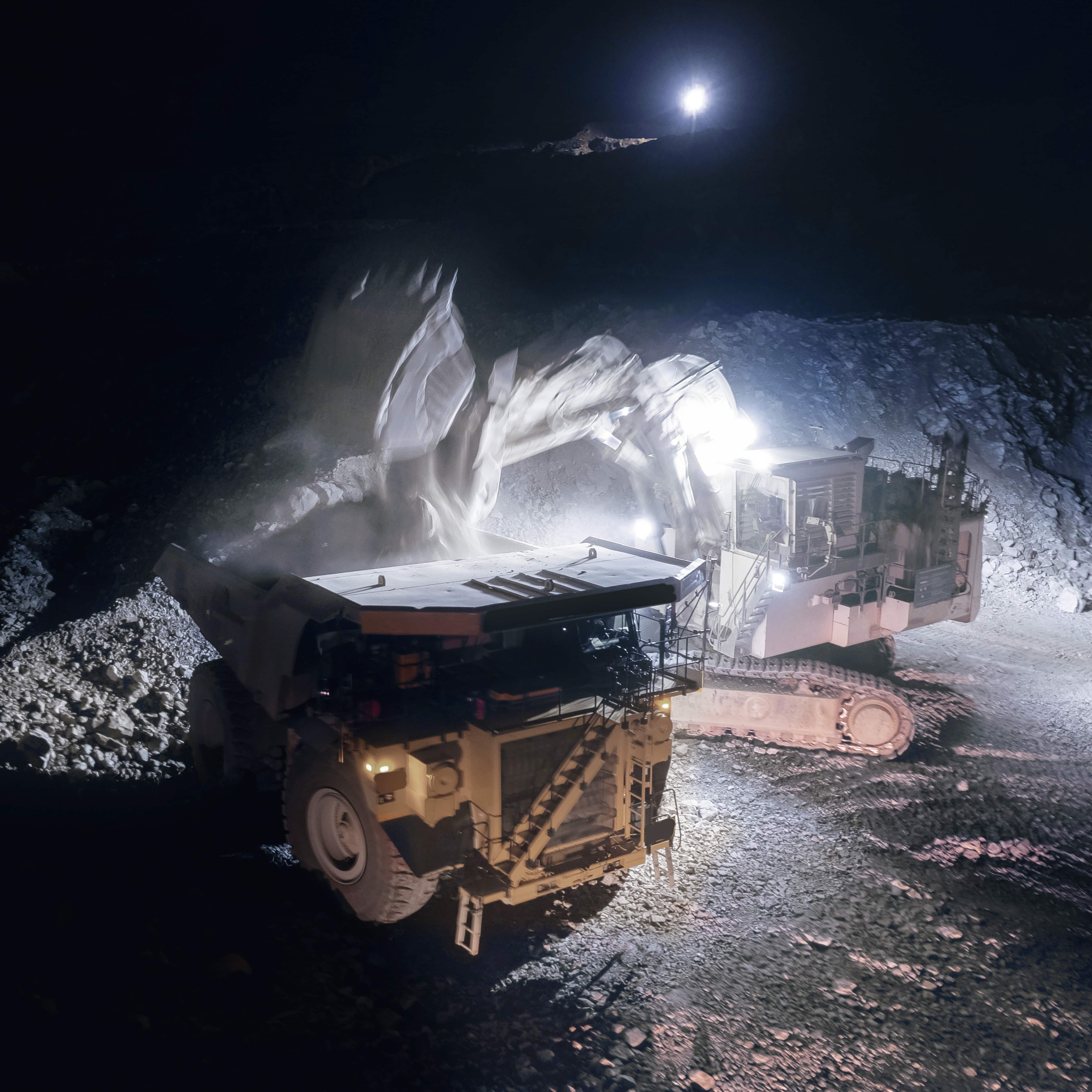

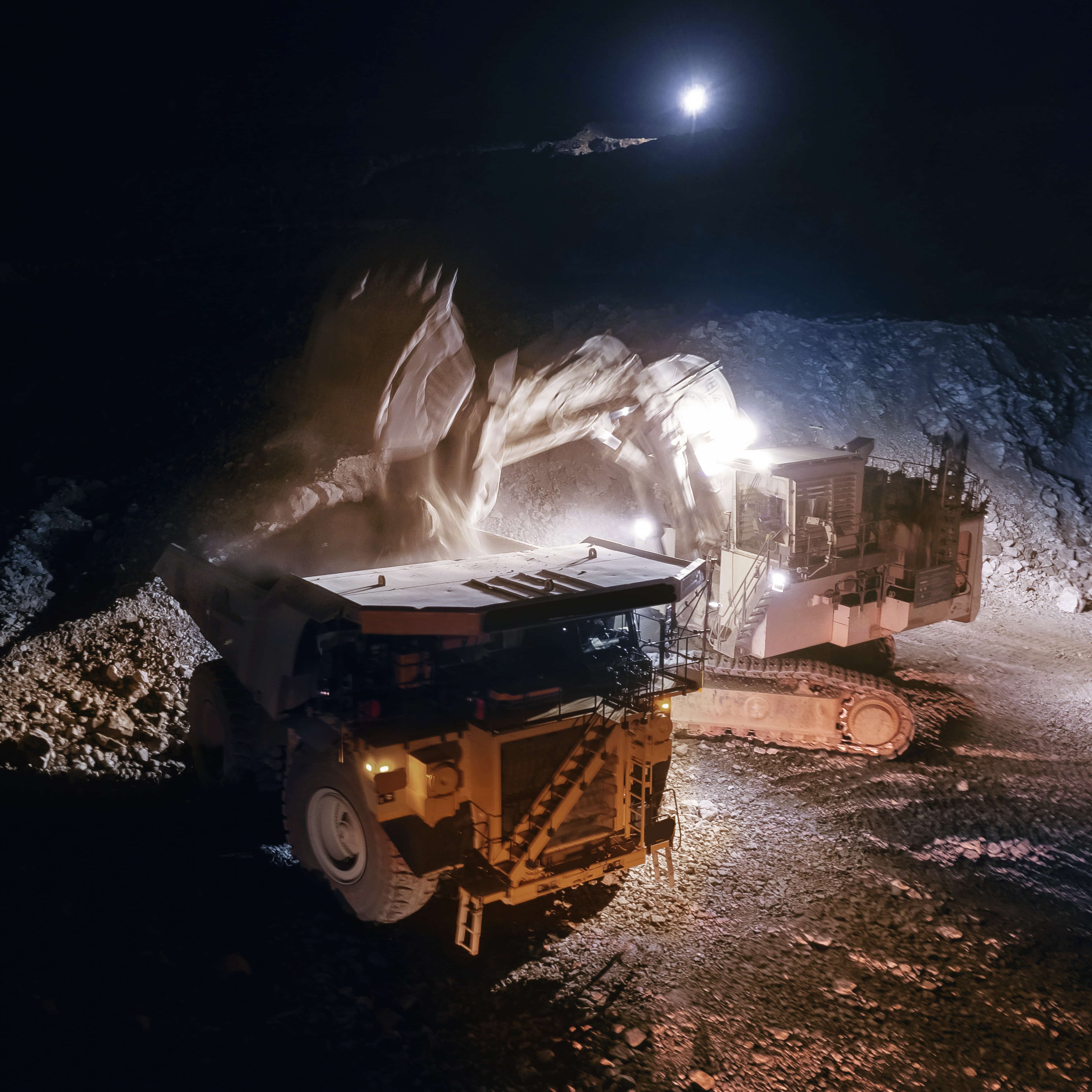

Cool White: 5700K Warm White: 2700K

See clearly when you need it most with the Model 893 LED Compact Work Light. Brighter and more durable than inferior halogen lights, the rugged LED work light projects an incredible 3,700 lumens for forward lighting that cuts through the darkest nights and most inclement weather to help keep your crews productive and safe. The Model 893 is available in an Eco-Friendly, Anti-Glare option.

J.W. Speaker Model 893 LED Dual Color Compact Rectangular Work Light 1300831 Features & Benefits

  • 3,700 effective lumens in a wide, flood beam pattern
  • Input Voltage: 12/24V DC
  • ECE Reg. 10 compliant

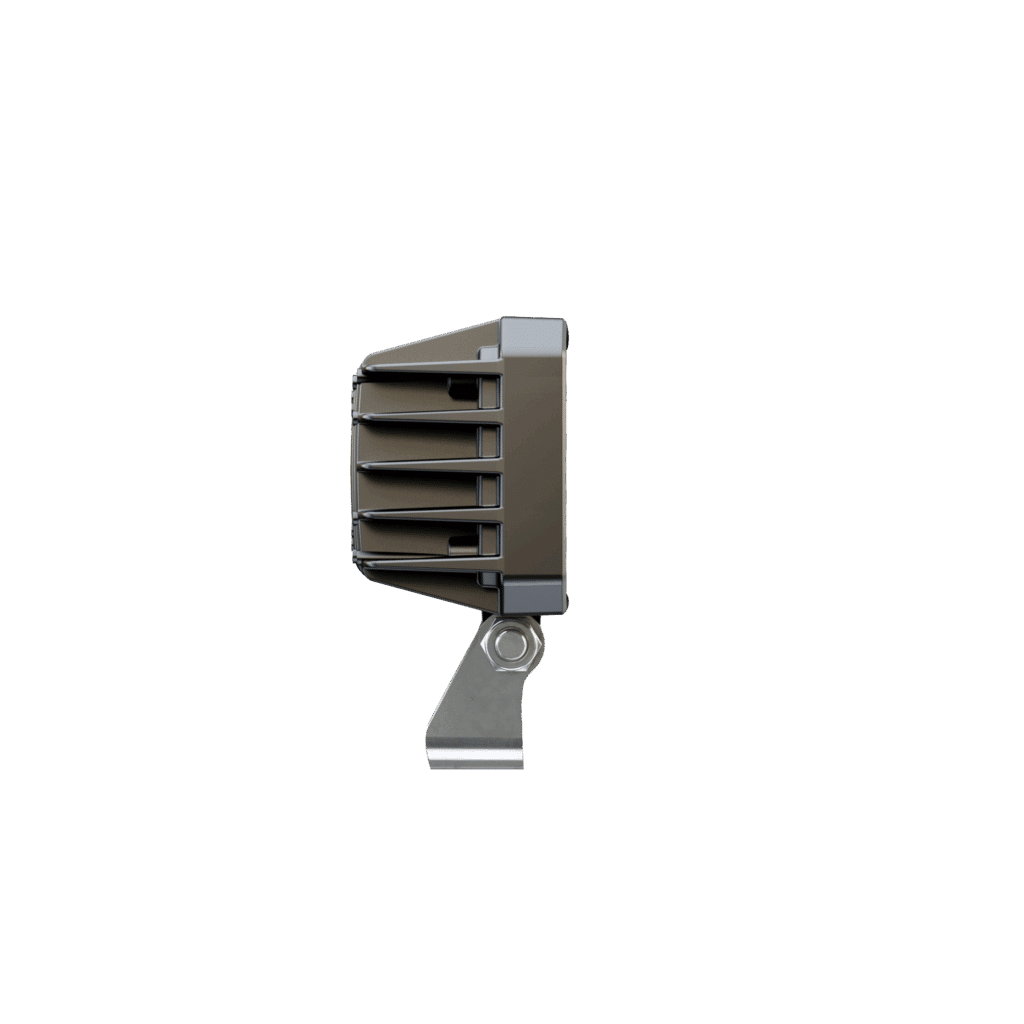

  • Pedestal mount
  • Rated IP67 & IP69K
  • Rugged polycarbonate impact-resistant lens
  • Sturdy black aluminum, corrosion-resistant housing
  • Internal components are fully encapsulated for moisture, vibration and corrosion protection

J.W. Speaker Model 893 Compact Work Light Specifications

Input Voltage9-30V DC
Operating Voltage12-24V DC
Color Temperature5700K (Cool White), 2700K (Warm White)
Raw Lumen Output3365 (Cool White), 2615 (Warm White)
Effective Lumen Output1700 (Cool White), 1340 (Warm White)
Candela Output1790 (Cool White), 2380 (Warm White)

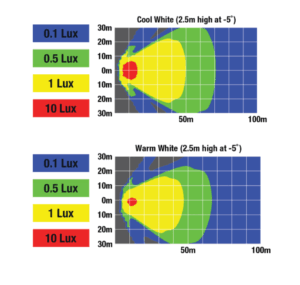

Beam PatternForward Lighting - Flood (Vertical)
Current Draw1.7A @ 12V DC (Power Cool, Power Warm)
0.8A @ 24V DC (Power Cool, Power Warm)
IP RatingIP67, IP69K
Outer Lens MaterialPolycarbonate
Outer Lens ColorClear
Mounting Hardware(x1) 5/16”-18 x 1.00” Mounting Bolt Bracket
Mounting TypePedestal
Mating ConnectorDeutsch DT06-3S-P012

This is a 2 wire light that changes color by toggling power.
Warm / Cool White Color Temperatures: Cool White: 5700K, Warm White: 2700K

J.W. Speaker Model 893 LED Dual Color Compact Rectangular Work Light 1300831 Specification Flyer (PDF)

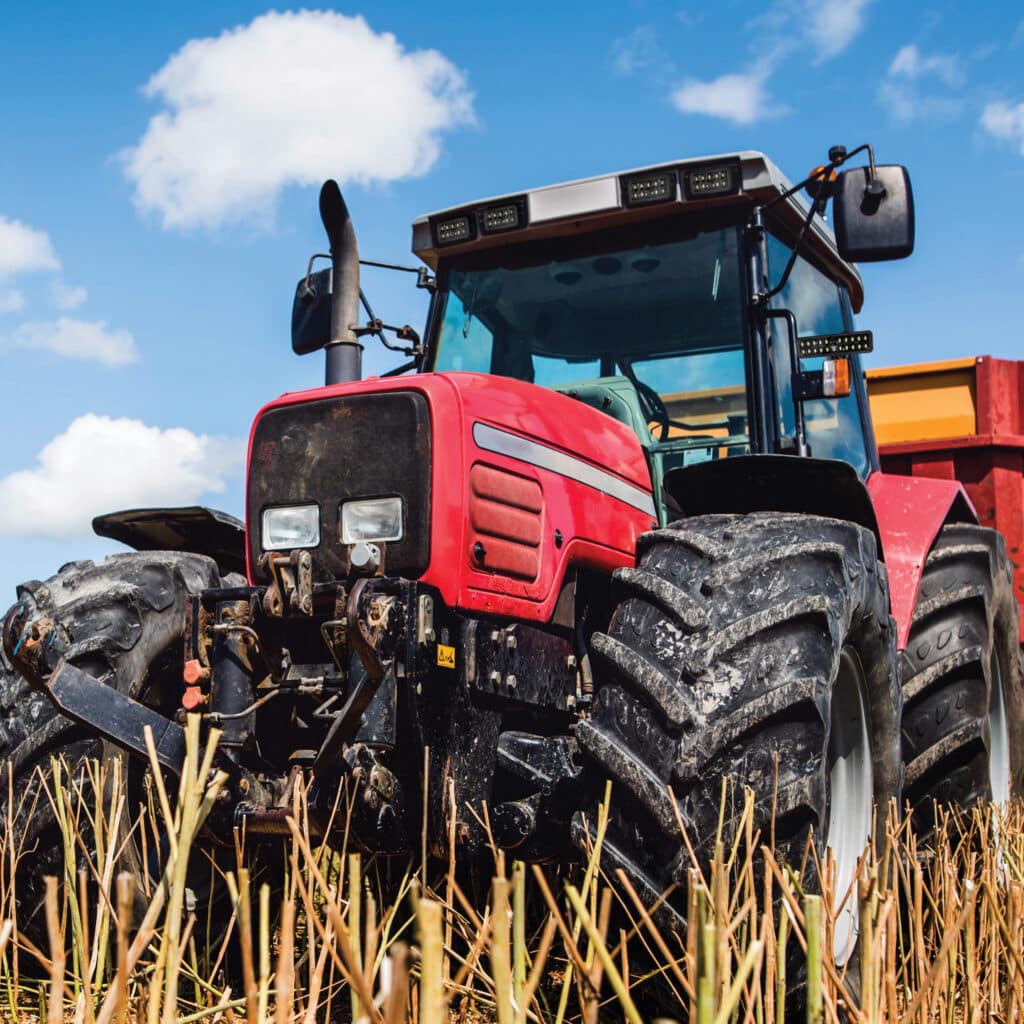

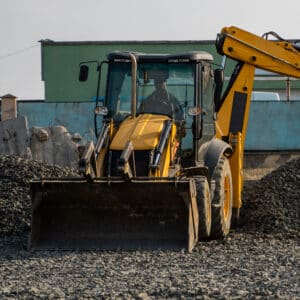

Applications: Agriculture, Construction, Industrial, Military, Mining, Railroad, Off-Road 4x4

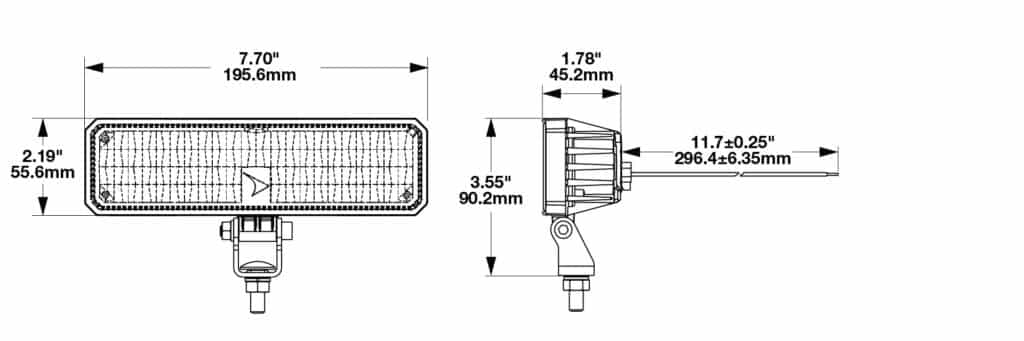

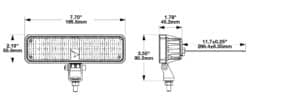

Dimensions:
Width: 7.72" (196 mm), Height: 2.19" (55.6 mm), Depth: 45.2" (1.78 mm)
