Available in 160 LED and 320 LED configurations, these AC light fixtures by Vision X utilise the powerful Cube LED technology, which offers a large surface area that provides a higher per watt output (117 lumens per watt) compared to standard diodes.
Vision X is able to provide professional solutions due to the effectiveness of Cube LED technology, which differ from standard diodes primarily in size and output per watt. A Cube LED has a larger surface area, allowing more light to be emitted per individual watt. Additionally, having a larger surface gives the LED a much wider beam pattern, allowing more lux to illuminate a more wide-spread area.
The Cube LEDs in the Vision X AC Pit Master output an impressive 117 Lu per watt in an equally impressive 180° of spread, making them ideal for industrial and structural lighting applications.
High Temp Glass
The optional High-Temp Glass lens helps protect the LEDs as well as internal components from extreme heat. Vision X recommends High-Temp Glass for applications that require intense heat.
Features and Benefits
- 180° Smooth Beam
- High efficacy Cube LEDs
- Available with High-Temp Glass lens option (HTG)
- Integrated ETM (Electronic Thermal Management)
- Die-Cast Aluminium Housing
- Power supply packages available
Vision X Cube LED Pitmaster Specifications
|Amps||6.45A @ 12V|
|Weight||16 lbs (7.3kg) CPM160PE
27 lbs (12.0kg) CPM320PE

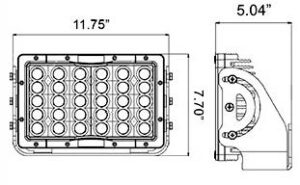

|Dimensions||11.8x7.7x5” (298.5x195.5x127.5mm) CPM160PE
14.3x11.7x7” (363x297x179mm) CPM320PE
Vision X Cube AC Pit Master 160 / 320 LED Parts Enquiry ▲
Vision X Cube LED Pitmaster: 160 LED, 18,720 Lu, 110-277V AC, 160W
Vision X Cube LED Pitmaster: 160 LED, 18,720 Lu, 110-277V AC, 160W, High-Temp Glass
Vision X Cube LED Pitmaster: 320 LED, 37,440 Lu, 110-277V AC, 320W
Vision X Cube LED Pitmaster: 320 LED, 37,440 Lu, 110-277V AC, 320W, High-Temp Glass
