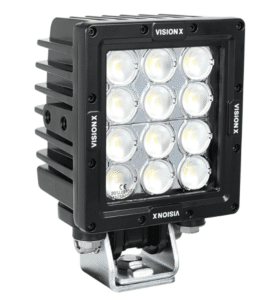

Vision X MIL Spec Ripper 12 LED

Vision X MIL Spec Ripper 12 LED

Brand: Vision X
Origin: USA


Click for:

Capable of standing up to 60 Grms of intense vibrations

Both the Ripper 12 were engineered to work harder and longer than any other LED work light in their class. Capable of standing up to 60 Grms of intense vibrations in the harshest conditions, these dual-mounted lights are the perfect solution for replacing unreliable lights on your work site.

Vision X MIL Spec Ripper 12 LED Features & Benefits

  • 12 x 5W LEDs – 60W Worklight
  • 6,336 Raw Lumens, 4,440 Effective Lumens
  • 60 Grms rated for high vibration
  • Dual Mounting System
  • OE Upgrade

Vision X Ripper 12 LED application



Rugged and Durable Construction
The combination of a die-cast 6061 aluminum housing, unbreakable polycarbonate lens, integrated deutsch connector, reinforced gasketed bezel, and a strengthened trunnion bracket create a one of a kind, high-powered light that will outshine and outlast the competition.

Prime Drive Technology
Prime Drive Technology from Vision X Lighting controls vital functions such as temperature control and dimming on your LED Light Bar. This advanced technology can increase or decrease the intervals at which the LEDs turn on and off in order to lower the bars overall temperature and maximize the lifespan.

Vision X MIL Spec Ripper 12 LED Specifications

Type5W LEDs (12 in total)
Beam Patterns10° Narrow Flood, 40° Medium Flood, 60° Flood, 90° Wide Flood
eLumens3,575 Lu
rLumens5,916 Lu
Voltage11-65V
Amps5A @ 12V DC
Watts60W
IP RatingIP69K
Housing ColorBlack
Weight5.51 lbs (2.5 kg)
Dimensions (DxWxH)4.0x5.0x8.07" (102x127x205mm)
Warranty3 Years / Extended

Vision X MIL Spec Ripper 12 LED Specifications Flyer (PDF)

Mounting Hardware

Vision X Ripper 12 LED mounting hardware


Applications: Heavy vehicles and machinery, mining, construction, bulldozers, high-vibration machinery

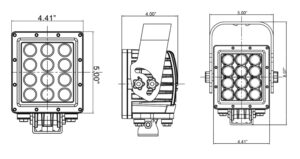

Dimensions:
Width: 5.0" (127 mm), Height: 8.07" (205 mm), Depth: 4.0" (102 mm)

Vision X MIL Spec Ripper 12 LED Parts Enquiry

Part#
Description
