ABL RL LED1000 Compact LED Worklight

ABL RL LED1000 Compact LED Worklight

Brand: ABL Lights
Origin: USA


Perfect all-round compact OEM quality LED light for fleets, support and utility equipment, service trucks, fork lifts, and small to mid-size construction equipment.

The ABL RL LED1000 is a compact LED-powered work lamp. This 14W version features 6 LED bulbs and pumps out an impressive 1000 lumens. This lamp exceeds everyday demands in all applications from handling equipment to heavy vehicles.

ABL Compact Light

Features & Benefits

  • 1000 effective Lumens
  • Meets CISPR 25 Class 5 standards
  • Glass Lens
  • IP68/69K ingress protection
  • 15 Grms @ 24-2000Hz vibration resistance
  • 60G shock rating
  • Available in Flood, Long Range or Asymmetrical Flood

ABL Lights have revolutionised the compact heavy-duty lights market with a value-priced high-performance light series. Designed for harsh environments, these lights feature IP68/69K ingress protection, 15 Grms @ 24-2000Hz vibration resistance, 60G shock rating, crystal clear hardened glass lens that will last the test of time, top of class EMC ratings, universal mounting package, plus 4 years warranty for peace of mind.

CISPR 25 Class 5 standards

These ABL compact LED work lamps are one of the few LED work lamps in the market that meet CISPR 25 Class 5 standards. With heavy equipment, trucks and fleets packing more and more sophisticated electronics it is imperative that potential noise / interference is eliminated.

ABL RL LED1000 Compact LED Worklight Specifications

Voltage12-24V DC
TechLED
Wattage14W
Current0.58A @ 24V DC
Lumens1000 Lu
Operating Temperature-40°C to +85°C

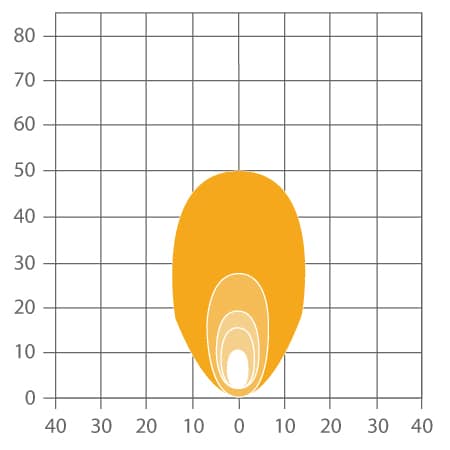

Beam PatternFlood, Long Range or Asymmetrical Flood
ConnectorAMP 2 pin, DT 2 pin
MountingPedestal, suspended
Lens MaterialHardened glass, Plastics
Dimensions (DxWxH)3.03x3.58x5.07" inches (77x91x129mm)
Weight0.9 lbs (0.45kg)
Load Dump / Surge DumpSurge: 36V continuous / ISO 7637-2 Pulse 5a
IP RatingIP68 / 69K
PolarityProtected against reverse voltage
Salt Spray TestISO 9227
Vibration Resistance15 Grms @ 24-2000Hz
Shock Resistance60G
EMCISO 13766, ISO 14982, ISO 12985, CISPR25 Class 5
Warranty4 Years

Specification Sheet

ABL RL LED1000 Compact LED Worklight Specification Sheet

CAT OEM PN’s for the ABL RL LED1000 and ABL RT LED1500 Compact LED Worklight

Here are some of the CAT OEM PN’s for the ABL RL LED1000 and ABL RT LED1500 Compact LED Worklight.

OEM Machine ABL AM* Model OEM P/N New ABL AM* Model
Caterpillar Various C700 LED 850 479-8444 RL LED1000 Series
Caterpillar Various C700 LED 850 479-8445 RL LED1000 Series
Caterpillar Various C700 LED 850 479-8446 RL LED1000 Series
Caterpillar Various C700 LED 850 479-8447 RL LED1000 Series
Caterpillar Various C700 LED 1200 479-8450 RT LED1500 Series
Caterpillar Various C700 LED 1200 479-8451 RT LED1500 Series
Caterpillar Various C700 LED 1200 479-8452 RT LED1500 Series
Caterpillar Various C700 LED 1200 479-8453 RT LED1500 Series

* AM = After Market

Also for the ABL RL LED1000 and ABL RT LED1500 Compact LED Worklight, CAT: 524-8521, 526-4904, 524-8524


Applications: Heavy equipment, mining, construction, road and utility equipment, forestry, agriculture


Dimensions:
Width: 3.58" (91 mm), Height: 5.07" (129 mm), Depth: 3.03" (77 mm)
