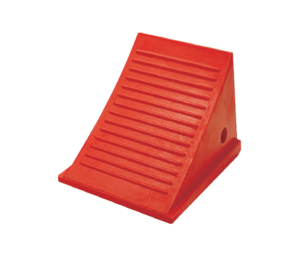

APS General-Purpose Wheel Chocks

Brand: APS Lighting & Safety
Origin: USA

---

Click for:

•   Features & Benefits
•   Photos & Images

•   Specs Table
•   Specs Flyer (PDF)

•   Parts Enquiry
•   Related Products

Made from lightweight, highly durable urethane, the APS General Purpose Wheel Chocks are weather, oil and chemical resistant. High-quality and built for longevity, the wheel chocks are well-suited for many industries and are ideal for many different vehicle types due to the high load capacity. Third party tested, certified and trusted by fleets globally, these chocks come equipped with a mounting hole and recessed carrying handle for easy transport. Available in a high visibility orange color as a single chock or in a roped pair.

APS General-Purpose Wheel Chocks Features & Benefits  ▲

• For tires with up to a 35″ outside dia.
• Rated for vehicles with a gross operating weight up to 30,000 lbs (UC1700), 40,000 lbs (UC1600), 70,000 lbs (UC1500) and 60,000 lbs (UC1400) .
• Weather-resistant, lightweight polyurethane construction
• Resistant to oils, fuels, and solvents
• Recessed carrying handle
• Mounting hole for ropes or chains
• High visibility orange color
• Available in singles or pairs

APS General-Purpose Wheel Chocks Specifications  ▲

Product	Description	Tire Size (OD)	Size (L x W x H)	Weight	Tire Diameters	Max Weight
UC1700	Orange Single Wheel Chock	Up to 35”	8.5” x 7.5” x 6.25” (21.6 x 19.1 x 15.9cm)	2.0 lbs (.91 kg)	27-in to 35-in (68.6 cm to 88.9 cm)	30,000 lb. or 13,608 kg
UC1700-P	Orange Wheel Chock (Pair)	Up to 35”	8.5” x 7.5” x 6.25” (21.6 x 19.1 x 15.9cm)	4.5 lbs (2 kg) (Pair)	27-in to 35-in (68.6 cm to 88.9 cm)	N/A
UC17VM	Vertical Mounting Bracket	Up to 35”	10.5” x 9.25” x 1.5” (26.67 x 23.49 x 3.81cm)	1.75 lbs (.8kg)	N/A	N/A
UC1600	Orange Single Wheel Chock	Up to 35”	11.25” x 8” x 8.25” (28.6 x 20.3 x 21.0cm)	3.5 lbs (1.6 kg)	27-in to 35-in (68.6 cm to 88.9 cm)	40,000 lb. (18,144 kg)
UC1600-P	Orange Wheel Chock (Pair)	Up to 35”	11.25” x 8” x 8.25” (28.6 x 20.3 x 21.0cm)	7.5 lbs (3.4 kg)	27-in to 35-in (68.6 cm to 88.9 cm)	N/A
UC1500-6	Orange Single Wheel Chock	Up to 35”	11.5” x 9” x 8.5” (29.2 x 22.9 x 21.6cm)	6 lbs (2.7 kg)	32-in to 46-in (81.3 cm to 116.8 cm)	50,000 lb. (22,680 kg)
UC1500-6-P	Orange Wheel Chock (Pair)	Up to 35”	11.5” x 9” x 8.5” (29.2 x 22.9 x 21.6cm)	12.5 lbs (5.7 kg)	32-in to 46-in (81.3 cm to 116.8 cm)	N/A
UC15VM	Vertical Mounting Bracket	Up to 35”	12.88” x 11.75” x 1.5” (32.72 x 29.85 x 3.81cm)	2.5 lbs (1.1 kg)	N/A	N/A
UC15HM	Horizontal Underbody Mounting Bracket	Up to 35”	12” x 11.5” x 4.25” (30.48 x 29.21 x 10.79cm)	2.75 lbs (1.2 kg)	N/A	N/A
UC1400-6	Orange Single Wheel Chock	Up to 32”	10” x 8.5” x 5” (25.4 x 21.6 x 12.7cm)	6 lbs (2.7 kg)	27-in to 32-in (68.6 cm to 81.3 cm)	30,000 lb. (13,608 kg)
UC1400-6-P	Orange Wheel Chock (Pair)	Up to 32”	10” x 8.5” x 5” (25.4 x 21.6 x 12.7cm)	4.5 lbs (2 kg)	27-in to 32-in (68.6 cm to 81.3 cm)	N/A

APS General-Purpose Wheel Chocks Specifications Flyer (PDF)  ▲

• APS General-Purpose Wheel Chocks Specification Flyer

---

Applications: Fleet vehicles and trucks
