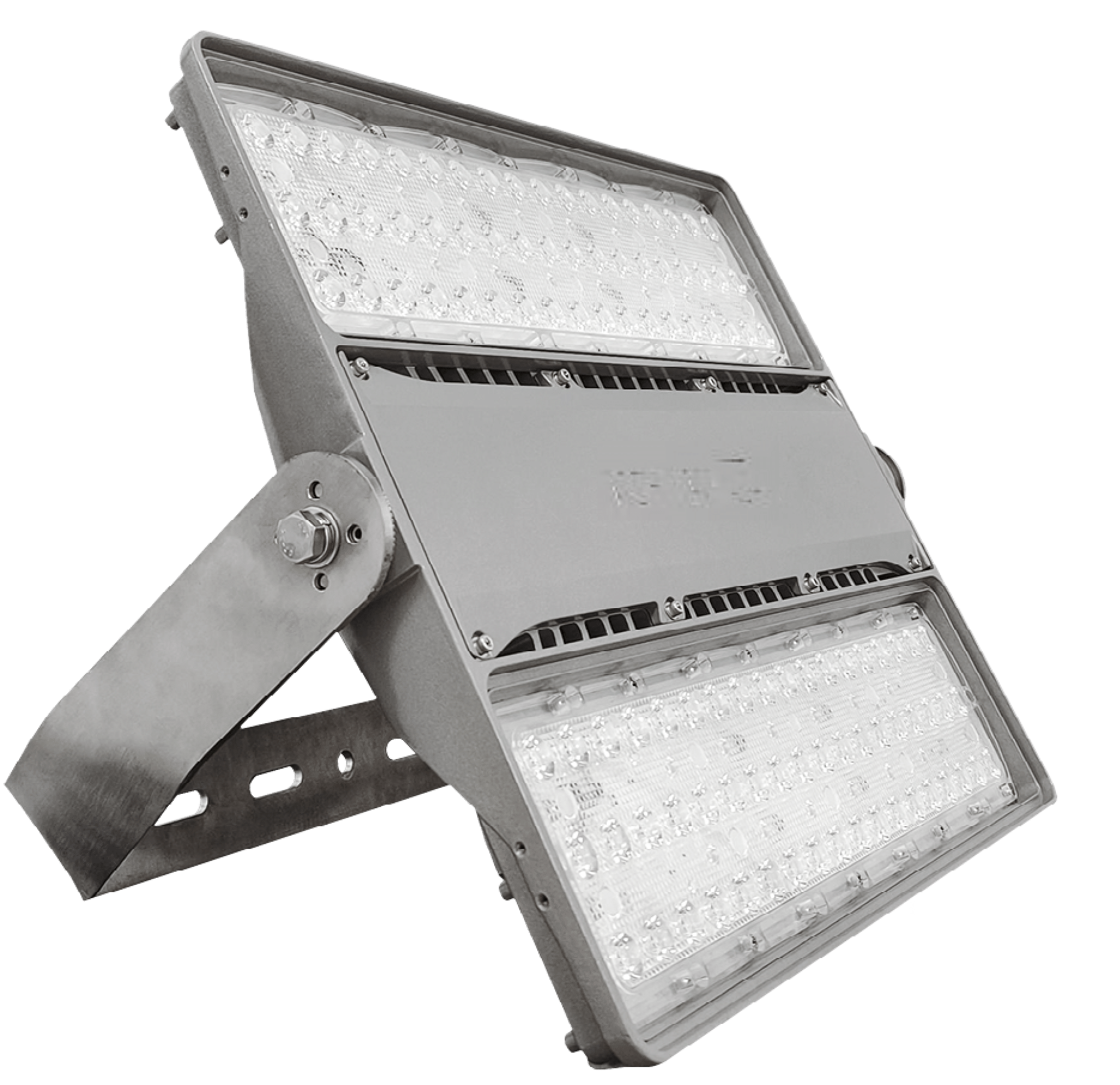

APS LF46 Series LED Flood Light

APS LF46 Series LED Flood Light

Brand: APS Lighting & Safety
Origin: USA

Click for:

•   Features & Benefits
•   Photos & Images
•   Specs Table
•   Specs Flyer (PDF)
•   Parts Enquiry
•   Related Products

The APS LF46 series LED flood light, it can aim in any direction, and has a structure that is not affected by weather conditions. Provide energy-saving and low-maintenance lighting solutions, with a variety of optical lenses, to provide a stable and comfortable lighting effect for the lighting area, so that the staff can focus more on work safety and work efficiency. It is mainly used for industrial lighting in ports, wharfs, large-area operations mines, airports, stadiums and other places.

APS LF46 Series LED Flood Light Features & Benefits  ▲

  • Highly reliable, efficient LED light source, long life, energy saving and environmental protection.
  • Integrated design of fin-type lamp housing, strong integrity, sufficient heat dissipation, light weight and good shock resistance.
  • Special spraying process, oxidation resistance, corrosion resistance, fully sealed structure, suitable for high salinity coastal areas.
  • The back angle structure design prevents water and dust accumulation.
  • Equipped with a waterproof and breathable valve to balance the temperature and pressure inside and outside the cavity to protect the LED light source device.
  • The product has multiple color temperature options, good color rendering, anti-glare and good visual effect.

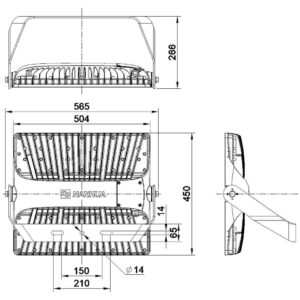

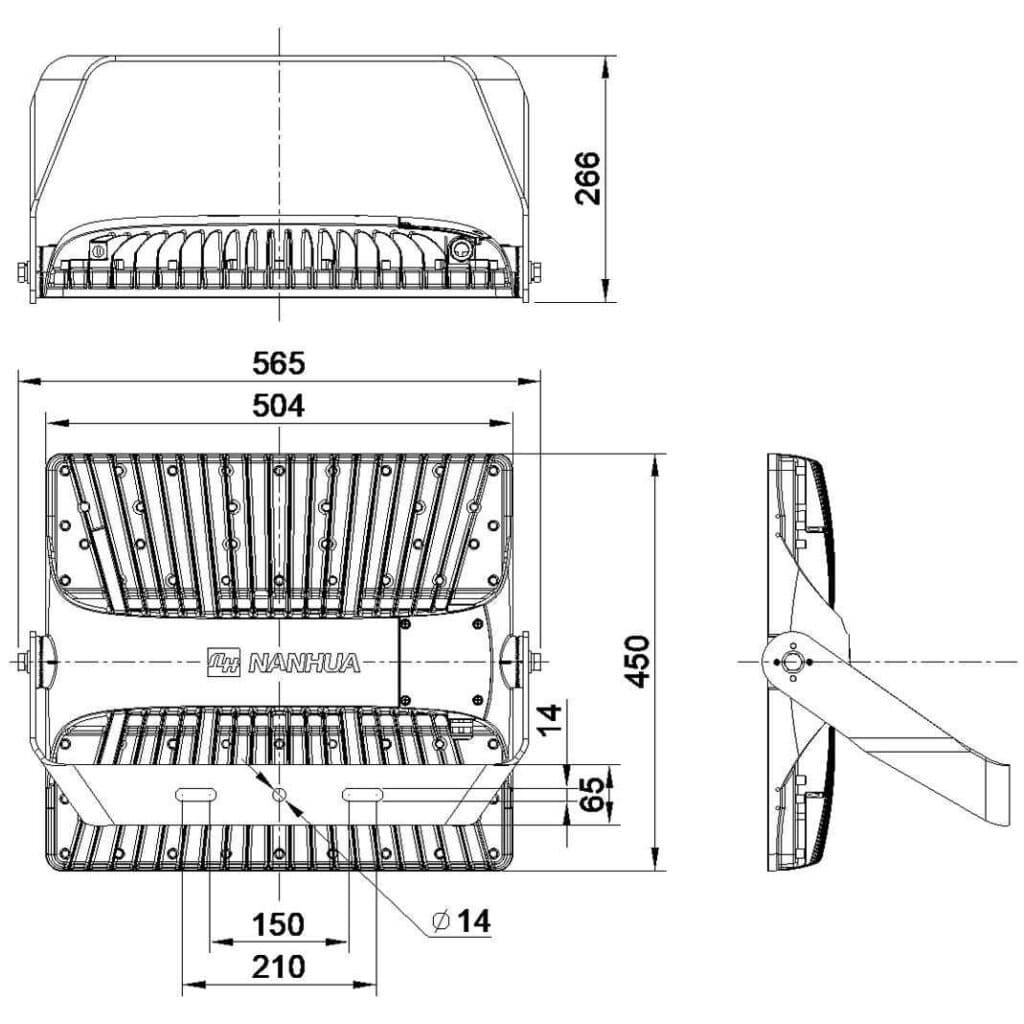

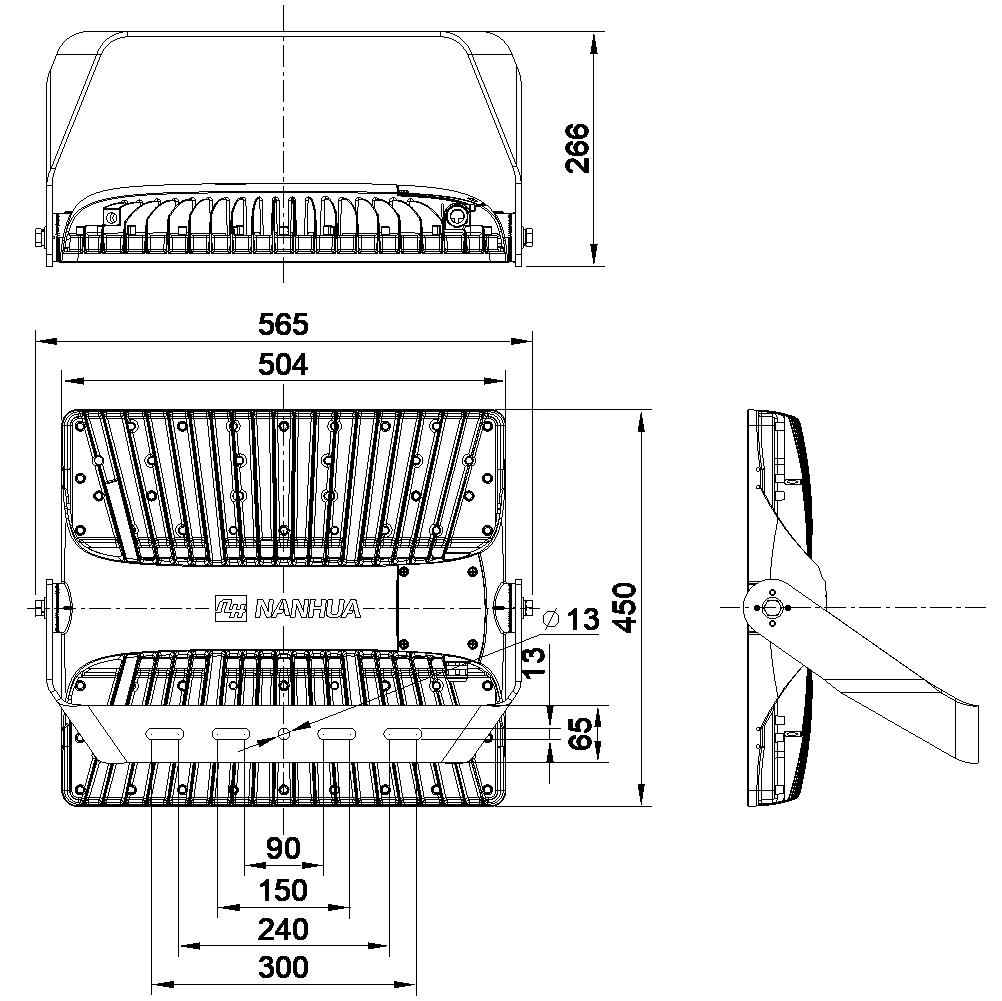

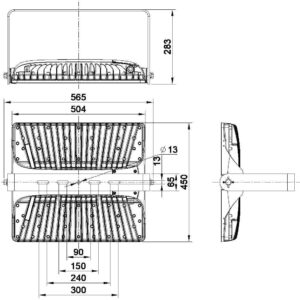

  • The vertical angle of the mounting bracket is adjustable from 0° to 180° (5° per grid), suitable for lighting in a variety of different positions.
  • Various dimming modes such as 1-10V/PWM/time control can be customized.
  • Comes standard with anti-dropping chain and damping pad.

APS LF46 Series LED Flood Light Specifications  ▲

Light SourceLED
Colour Temperatures5700K, 4000K, 2700K
CRI140 lm/w, 130 lm/w, 110 lm/w
Lumen per WattRa≥70, Ra≥70, Ra≥80
LEDs Lifetime≥60000h

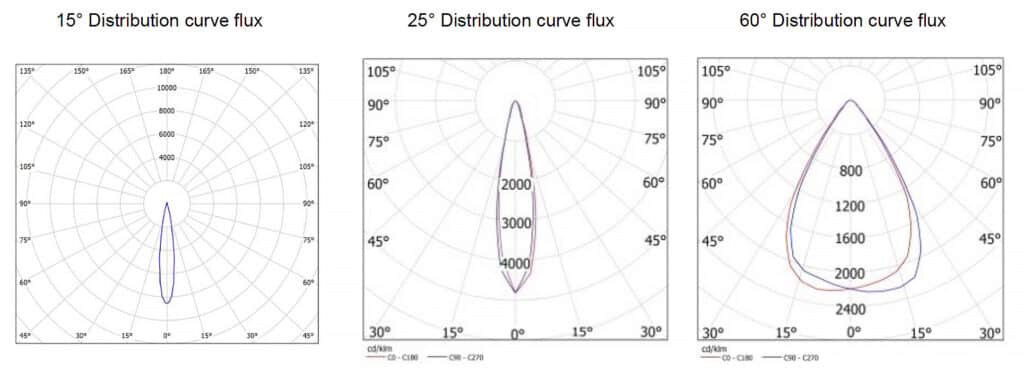

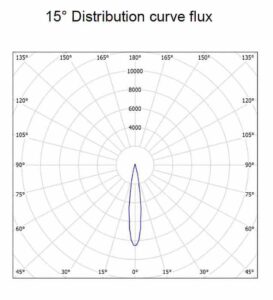

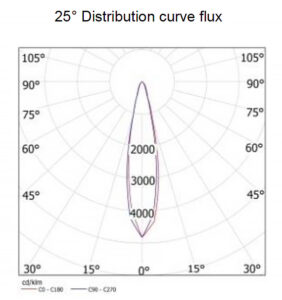

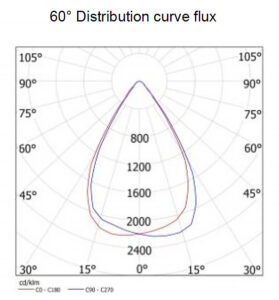

Beam Patterns15° / 25° / 60°
Operating Voltage 120-277V AC
Power Consumption 300W 400W
Frequency 50/60Hz
Power Factor PF>0.95
EMCIEC61000-4-2 Contact discharge:±8KV
Air discharge:±15KV
IEC61000-4-3 800~1000MHz 10V/m
IEC61000-4-4±2KV
IEC61000-4-5 L-N:±6KV L,N-PE:±10KV
IEC61000-4-6 0.15~80MHz 10V/m
EN55015
WiringLead wire / Cable gland
Base ColorSilver
Housing MaterialAluminum alloy
Cover MaterialPC
Finish TreatmentPowder coating
Weight13.5 kg
Operating Temperature-40˚C ~ +50˚C (over-heat protection)
Anti-vibrationIEC60068-2-6, 5g
IP RateIEC60529, IP67
Salt Spray RateISO9227, 720h

APS LF46 Series LED Flood Light Specifications Flyer (PDF)  ▲

Applications: Ports, port machinery, wharfs, large-area operations mines, mining machinery, airports, stadiums, and other places.
