APS LY400 Heavy duty Pole Mount with EMB

APS LY400 Heavy duty Pole Mount with EMB

Brand: APS Lighting & Safety
Origin: USA


Click for:

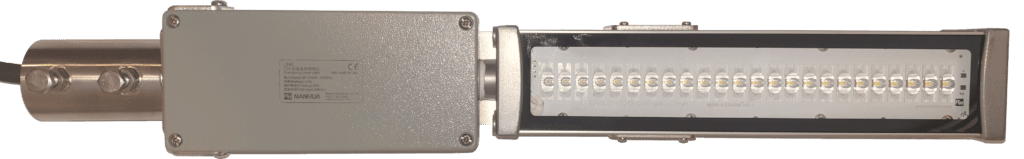

The LY400 heavy duty pole mount LED emergency light is designed for walkways, conveyor systems and crushers. Outputting an impressive 2200 Lumens from only 22W, it features a one-for-one replacement for 70W HID lights. The LY400 is also available in the Green LED model for eye-wash stations and also to replace fluorescent fixtures (e.g. LED upgrade). The heavy duty bracket has been redesigned to be installed in high vibration and harsh environments. This bracket has been tested to withhold 5G of vibration.

APS LY400 Heavy duty Pole Mount with EMB Features & Benefits

  • Industrial-grade LED chips and driver
  • 2200 effective Lumens
  • One-for-one replacement for 70W HID fixtures
  • Tempered glass effective against aging and colour-changing
  • IP65 fixture, waterproof & shock resistant
  • Wide 140° optical lens provides even light distribution
  • Certificates: CE, RCM (APS Lighting & Safety – E1496)
  • Minimum Emergency backup time is 90 minutes

APS LY400 Heavy duty Pole Mount with EMB Specifications

 Type LEDs
Lumens 2200 eLu
Color Temperature 5500K-6000K
Voltage 120~240V AC (50Hz~60Hz)
Wattage 22W
Beam Angle 140°
Humidity 10% ~ 95% (no coagulation)
Operating Temperature -30˚C to +60˚C
IP Rating IP65
Vibration 5G
Housing Forged aluminum alloy
Lens Tempered glass
Mount Pole (spigot) Ø 32-40mm
Weight 2.0 kg (4.41 lbs)

APS LY400 Heavy duty Pole Mount with EMB Specifications Flyer (PDF)


Applications: Crushers, High vibration conveyors, Walkways and Pathways
