Brand:
APS Lighting & Safety
Click for:
Specially designed as the lighting system for the cabin room and walkway of the large-scale port cranes (RTG, RMG, QC, STS), interior luminanaires of wind turbines (nacelle, tower and hub) and ceiling and passages of marine vessels.

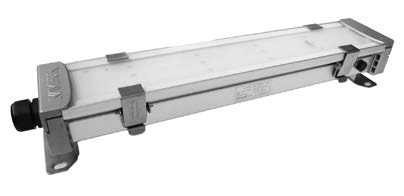

APS LY46A LED Emergency Walkway Light Features & Benefits ▲
- Use 5mm tempered glass diffuser to protect from being ageing and fading. Frosted finishing process to prevent the glaring.
- Lifetime of LED light source up to 50,000hrs. Save at least 50% energy comparing the fluorescent lamp. With the long term operational stability and maintenance free.
- Compact structure features small size and light weight. Adjustable mounting bracket makes it convenient for the field installation.
- The light is lit and the battery is charged when it is powered. Ni-Mh battery works and light is in emergency mode when it blacks out.
- Emergency light is not less than 90 minutes.
- Air valve design to protect the electronics components from being overheated to guarantee the long lifetime.
APS LY46A LED Emergency Walkway Light Specifications ▲
| Color Temperature | Cold White: 5700K Warm White: 2700K |
| Lumens | Cold White: 2260lm (18W), 2550lm (20W) Warm White: 1500lm (18W), 1800lm (20W) |
| LED Lifetime | ≥50,000hrs |
| Beam Angle | 50°×30° |
| Rated Voltage | DC18V-DC32V |
| Rated Power Consumption | 18W 20W |
| EMC | EN 55015/ CISPR 15 |
| Connect | Lead Wire / Connector |
| Material | Cover: PC Body: Aluminum |
| Operating Temperature | Ta -40˚C ~ +70˚C |
| Anti-vibration | IEC60528 20G |
| Anti-shock | IEC60528 60G |
| Anti-corrosion | ISO9227 720H / C5-M |
| Mount | M10 stainless steel bolt |
| IP Rate | IEC60529 IP68 / IP69K |
| IK Rate | IK08 |
| Weight | 0.6kg |
APS LY46A LED Emergency Walkway Light Specifications Flyer (PDF) ▲

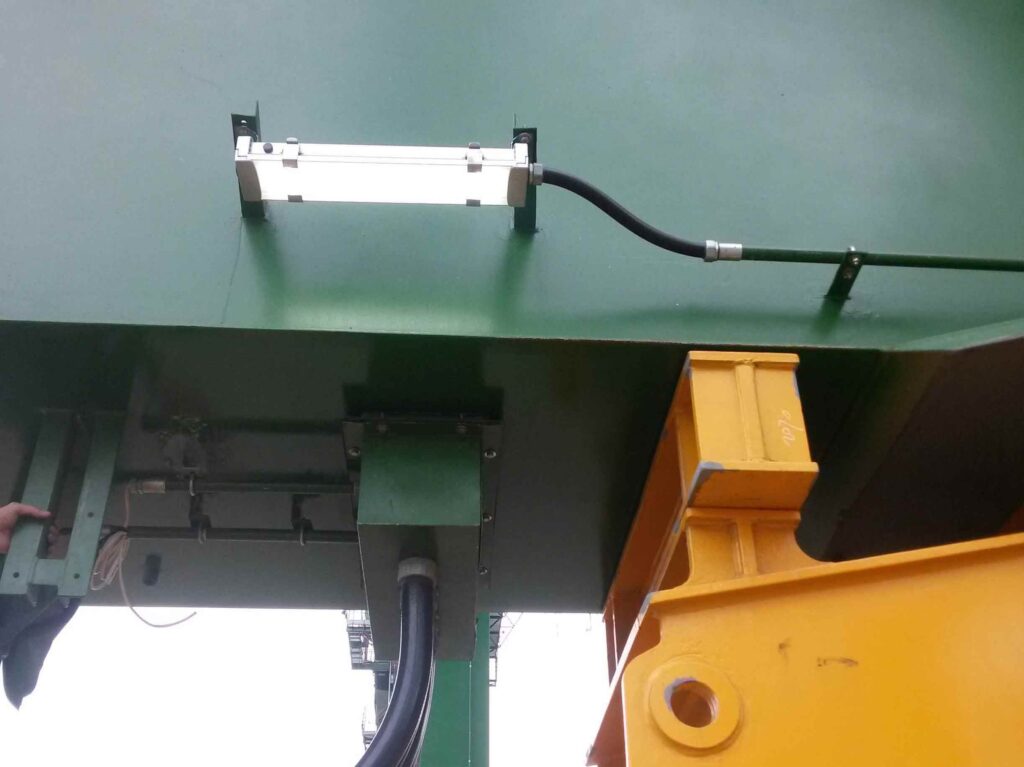

Applications: Cabin room and walkway of the large-scale port cranes (RTG, RMG, QC, STS), interior luminanaires of wind turbines (nacelle, tower and hub) and ceiling and passages of marine vessels.
