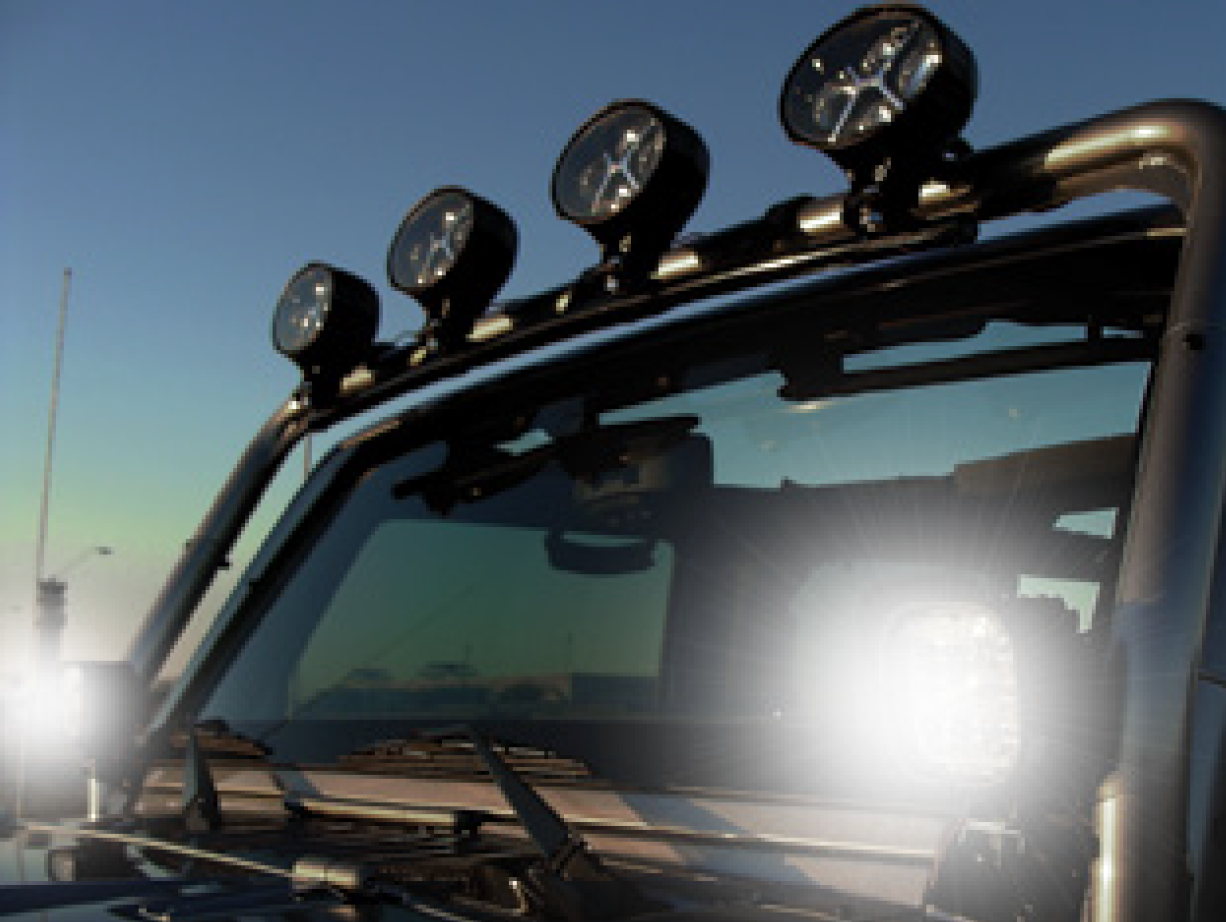

4″ x 4″ LED Auxiliary LightsLED3000-500F on Locomotives

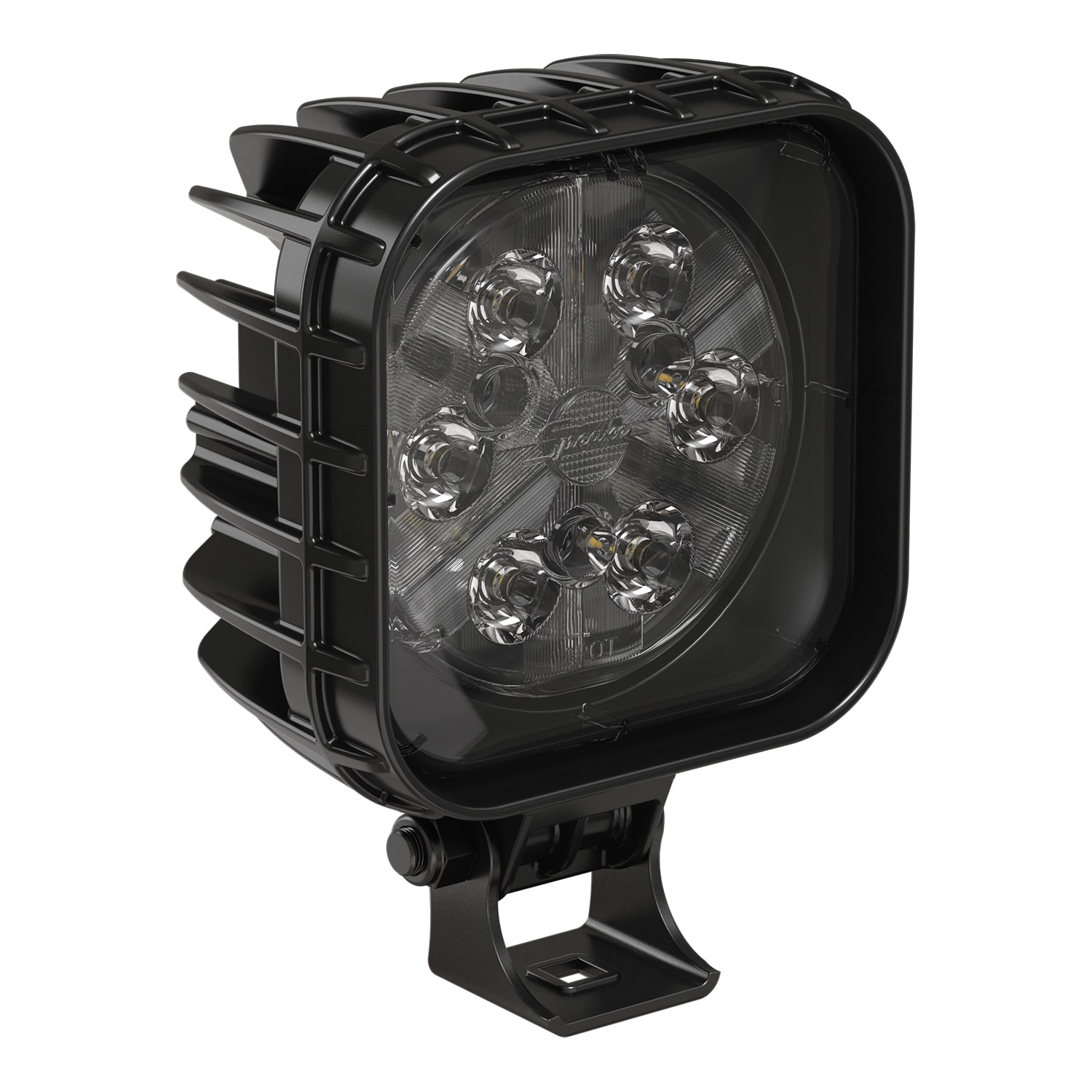

Perfect for tight mounting areas, the Model 832 (1300161, 1300171, 1300181, 1300611, and 1300621) packs a comparable output to the Model 735, but in a smaller form factor. This 4″ x 4″ light features a UV-resistant polycarbonate lens and rugged die-cast aluminum housing which stands up to the rigors of everything from industrial job sites to off-roading.

J.W. Speaker Model 832 LED Auxiliary Lights ​Features & Benefits  ▲

  • Also available in a heavy-duty XL Series version
  • Multiple beam patterns available: Flood, Spot, or Trapezoid
  • 24 Volt Versions are available for Theft Deterrence
  • Comparable light output to the Model 735 worklight
  • Die-Cast Aluminum Housing & impact-resistant Polycarbonate Lens provide rugged durability
  • Super bright LEDs provide maximum visibility & increase safety
  • IP69K seal rating to protect against dust & water
  • Great for mounting in tight areas (less than 3″ depth)

J.W. Speaker Model 832 LED Auxiliary Lights Specifications  ▲

Input Voltage12-24V DC; 24V DC
Operating Voltage10-32V DC; 20-32V DC
Current Draw3.5A @ 12V DC, 1.75A @ 24V DC; 1.6A @ 24V DC
Raw Lumen Output3,900 lm
Effective Lumen Output2,500 lm; 2,400 lm
Nominal LED Color Temperature5700 K

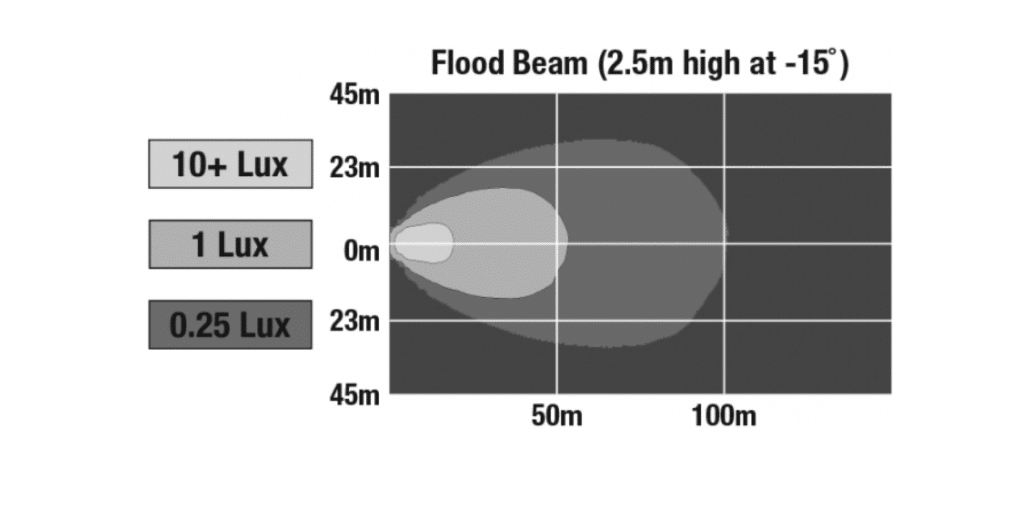

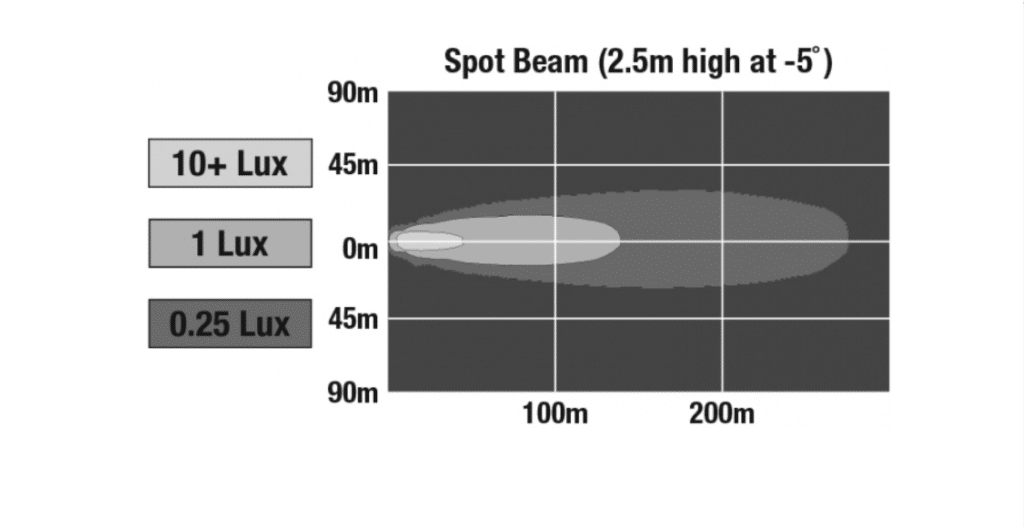

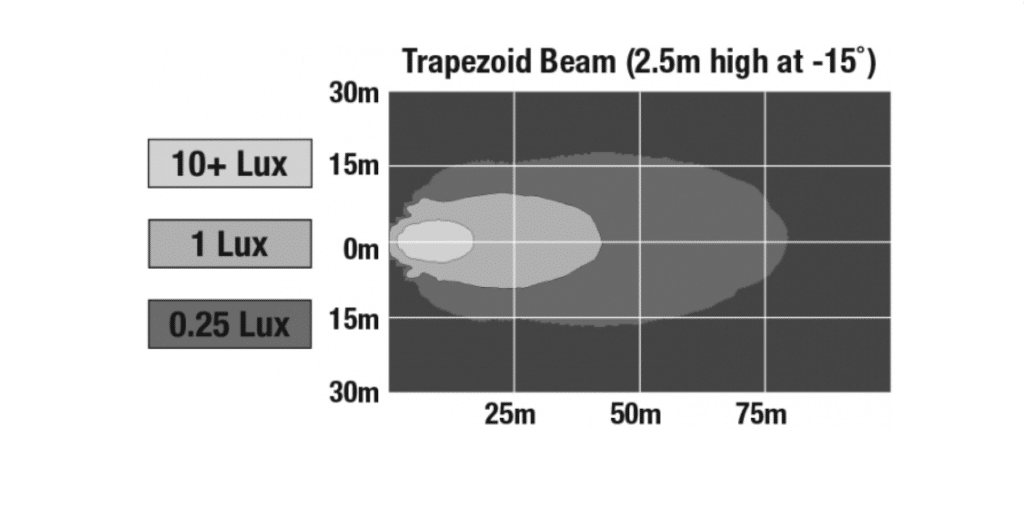

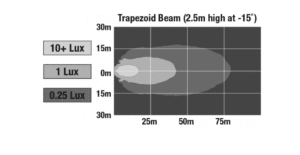

Beam PatternForward Lighting - Spot; Trapezoid; Flood
Outer Lens MaterialPolycarbonate
Outer Lens ColorClear
Housing MaterialDie-Cast Aluminum
Housing ColorBlack
Mounting Hardware(x1) 5/16”-18 x 0.58” Mounting Bolt
Mounting TypeUniversal Pedestal Mount
Operating Temperature-40 °C (-40 °F) – 65 °C (149 °F)

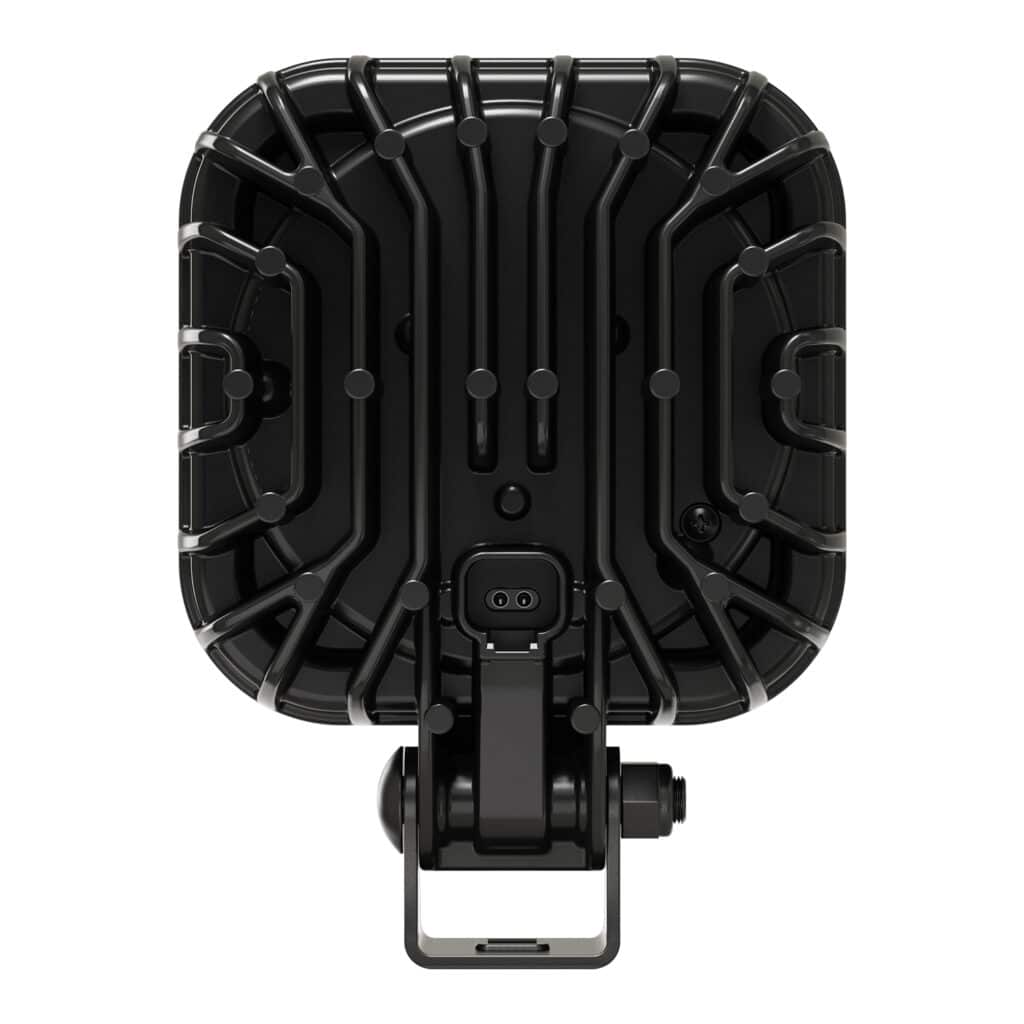

Connector or WiringIntegrated 2-Pin Deutsch Weather-Proof Socket (DT04-2P)
Mating Connector2-Pin Deutsch Weather-Proof Plug (DT06-2S)
Compliance / Certifications1300161, 1300171, and 1300181: Buy America Standards, Eco Friendly, IEC IP69K, UL Recognized
1300611 and 1300621: Buy America Standards and Eco Friendly

J.W. Speaker Model 832 LED Auxiliary Lights Specifications Flyer (PDF)  ▲

Applications: Agriculture, Automotive, Construction, Industrial, Material Handling, Mining, Off-Road 4x4, Powersports, Railroad, Specialty Vehicles, Truck & Bus

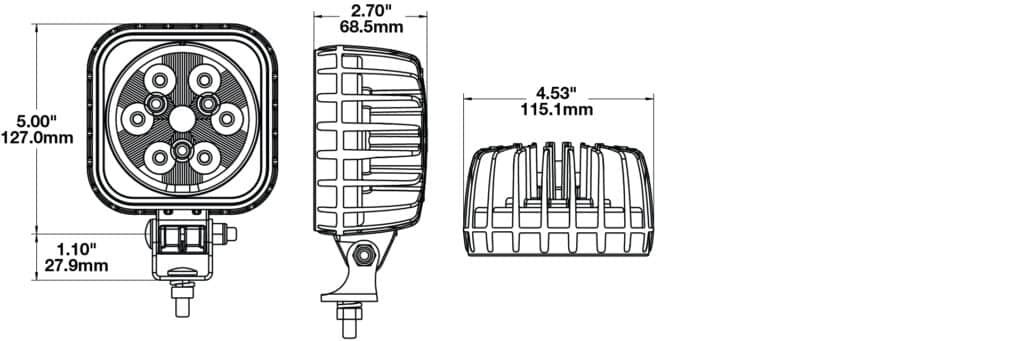

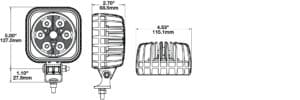

Dimensions:
Width: 4.53" (115.06 mm), Height: 6.1" (154.94 mm), Depth: 2.7" (68.58 mm)
