Brand:
J.W. Speaker
Origin: USA
Click for:
Compact & Powerful Forward Lighting
Upgrade your vehicle’s lighting with the Mosaic Auxiliary Kits, available in both High Beam and Fog Light options. Engineered by J.W. Speaker, these kits are a complete, aftermarket-ready solution designed for high performance, long-lasting durability, and effortless installation. Whether you’re equipping a work truck, off-road vehicle, or industrial machine, this compact yet powerful LED lighting kit enhances visibility and withstands the toughest environments.
Customizable Modular LED Lights
Custom Designs without Custom Costs or Timing! Avoid high optical tooling and homologation costs with the Mosaic Modular LED lighting system designed specifically for OEM and aftermarket customers seeking unique, high-quality, customized vehicle lighting. Ideal for buses, trucks, RVs, cars, motorcycles, ebikes, and ATV/UTV applications. OEMs can use the versatile Mosaic Modular LED Lighting System to configure lighting designs quickly and cost-effectively. Because the lights are standard J.W. Speaker offerings, there are no additional tooling costs. Plus, they’re DOT & ECE approved, so they’re ready for everyday on-road use immediately.
J.W. Speaker Model 92 LED Mosaic Modular Lighting System Features & Benefits ▲
- Available as an individual light or bulk pack
- Meets the tough criteria for IP67 and IP69K for the best protection from dust and water ingress
- DOT and ECE approved (please reference product descriptions)
- Die-cast aluminum housing to meet the harsh demands of transportation and municipal applications
- Design Flexibility – Various mounting options available to meet customer specific needs
J.W. Speaker Model 92 LED Mosaic Modular Lighting System Video ▲
J.W. Speaker Model 92 LED Mosaic Modular Lighting System Specifications ▲
| Input Voltage | 12/24V DC |
| Operating Voltage | 9-16V DC; 9-30V DC; 10-16V DC; 18-30V DC; 18-36V DC |
| Shape | Rectangular |
| Outer Lens Material | Polycarbonate |
| Outer Lens Color | Clear |
| Housing Material | Die-Cast Aluminum |
| Housing Color | Black |
| Operating Temp | -40°C / -40°F – 65°C / 149°F |
| IP Rating | IEC IP67, IP69K |
| Compliance / Certifications | 0347971: ECE Reg 148 - 1b, FMVSS 108 s7.1 (Table VI), SAE J2087 ECE Reg 148 - RL FMVSS 108 s7.10 0530313 and 0530993: ECE Reg 148 - A, ECE Reg 149 - HR 0560251: ECE Reg 148 - A, FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.8 (Table XIV), ECE Reg 149 - HR, FMVSS 108 s10.1 (Table XX) 0530293 and 0530303: ECE Reg 149 - F3 0556821 and 0560161: ECE Reg 149 - F3, SAE J583 0557941 and 0560171: ECE Reg 149 - K, SAE J852 0556831: ASABE S608, FMVSS 108 s7.10, FMVSS 108 s10.1 (Table XVIII), SAE J1623 0558321: ASABE S608, FMVSS 108 s10.1 (Table XX), ECE Reg 149 - WC-DS, SAE J1623 0560121: ASABE S608, ECE Reg 149 - HR, ECE Reg 148 - A 0560141: ASABE S608, SAE J1623, ECE Reg 149 - WC-DS 0561401, 0561411, and 0561421: FMVSS 108 s10.1 (Table XIX) |
| Housing Color | Black |
| Height | 54.80 mm / 2.16 in; 103.00 mm / 4.06 in; 185.70 mm / 7.31 in |
| Width | 63.80 mm / 2.51 in; 83.80 mm / 3.3 in; 106.40 mm / 4.19 in; 201.00 mm / 7.91 in |
| Depth | 73.70 mm / 2.9 in; 74.50 mm / 2.93 in; 76.60 mm / 3.02 in; 82.50 mm / 3.25 in |
| Product Weight | 0.55 lbs / 0.25 kgs; 1.52 lbs / 0.69 kgs |
J.W. Speaker Model 92 LED Mosaic Modular Lighting System Specification Flyer (PDF) ▲

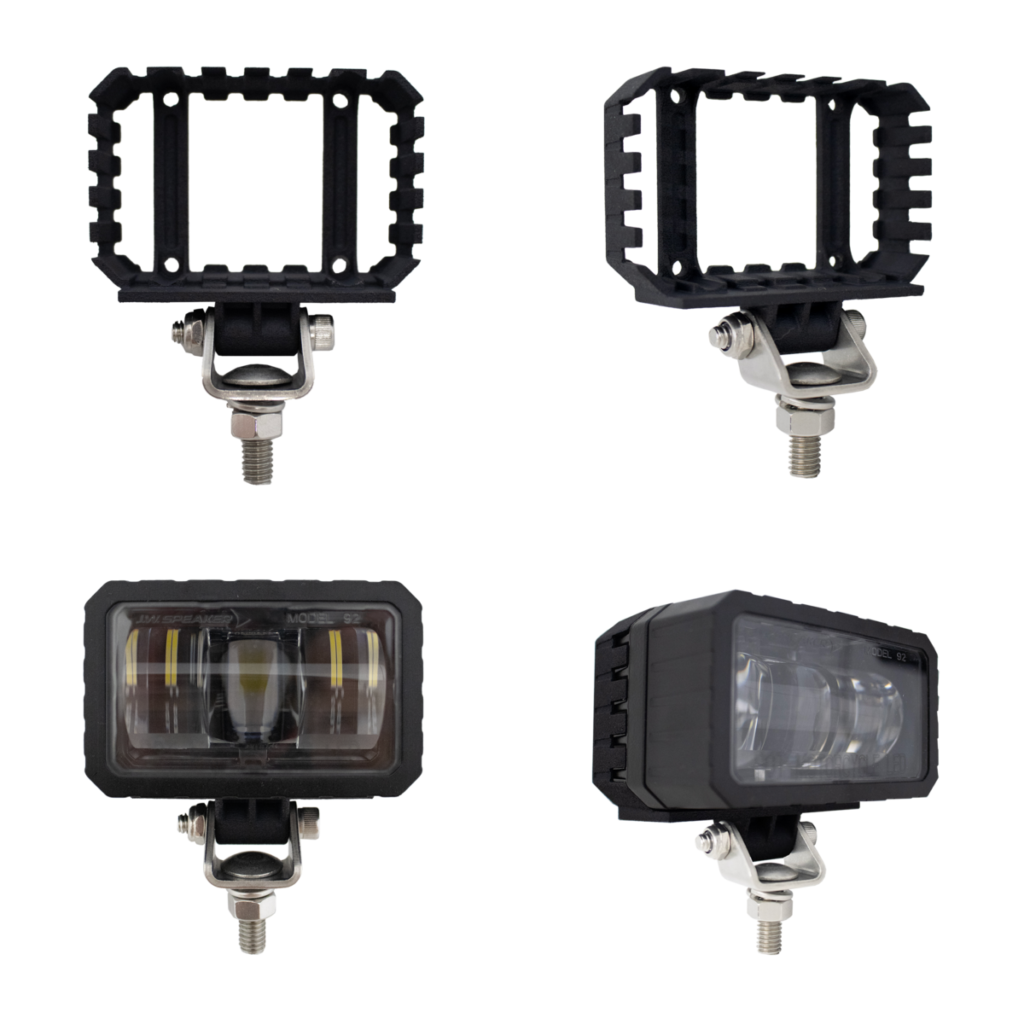

Light Specific Mounting Options:
Mounting Hardware Kit (8200831) is usable with all lights except the Vertical and Horizontal Low Beam Headlights: 0561411(2), 0561421(2), 0561401(2)
The Tall Mounting Hardware Kit (8201041) should only be used with Vertical and Horizontal Low Beam Headlights: 0561411(2), 0561421(2), 0561401(2)

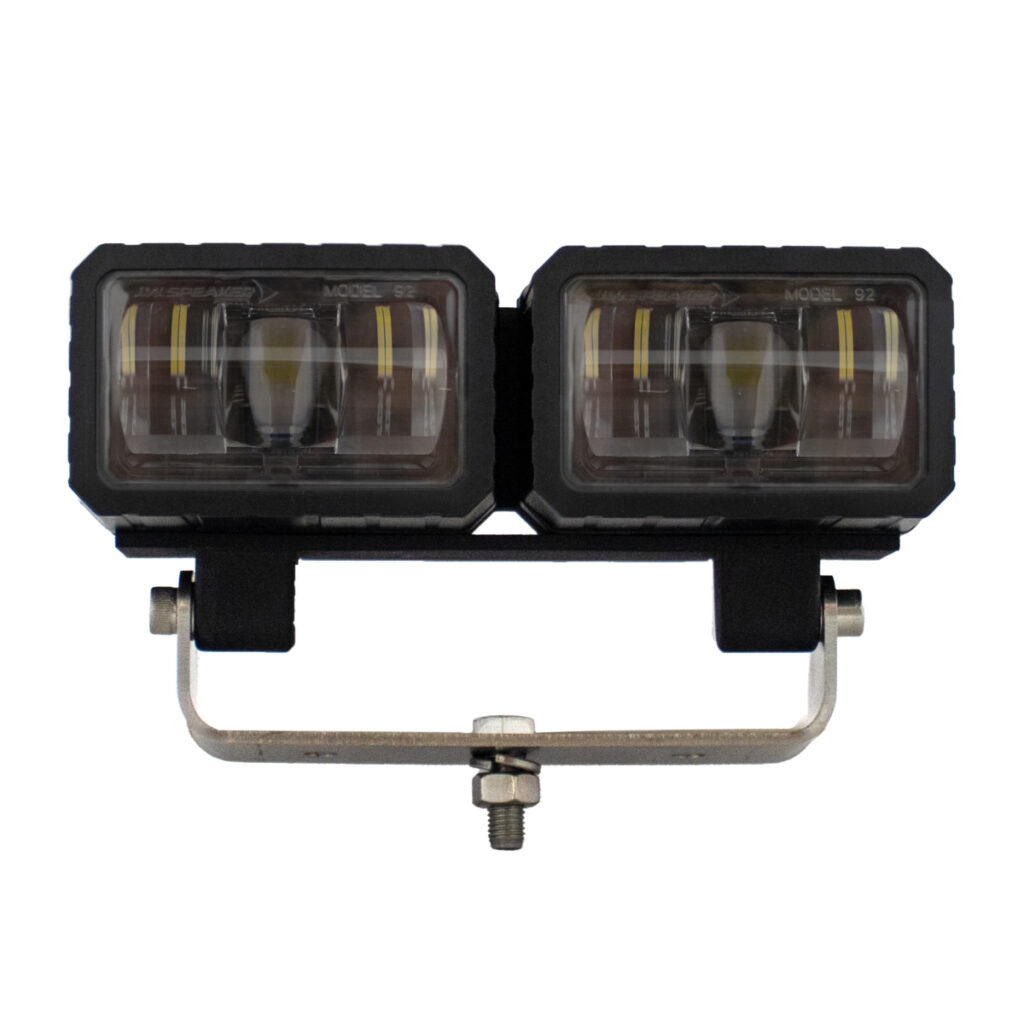

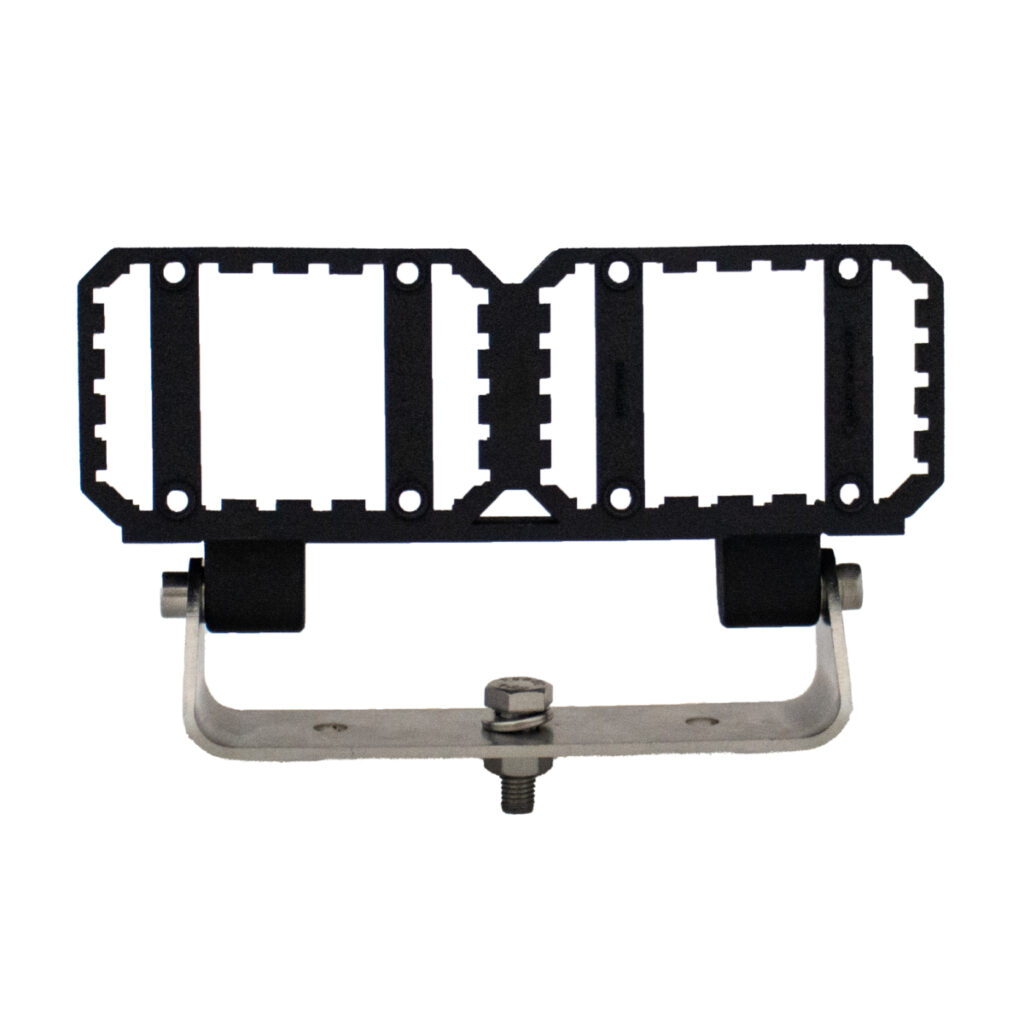

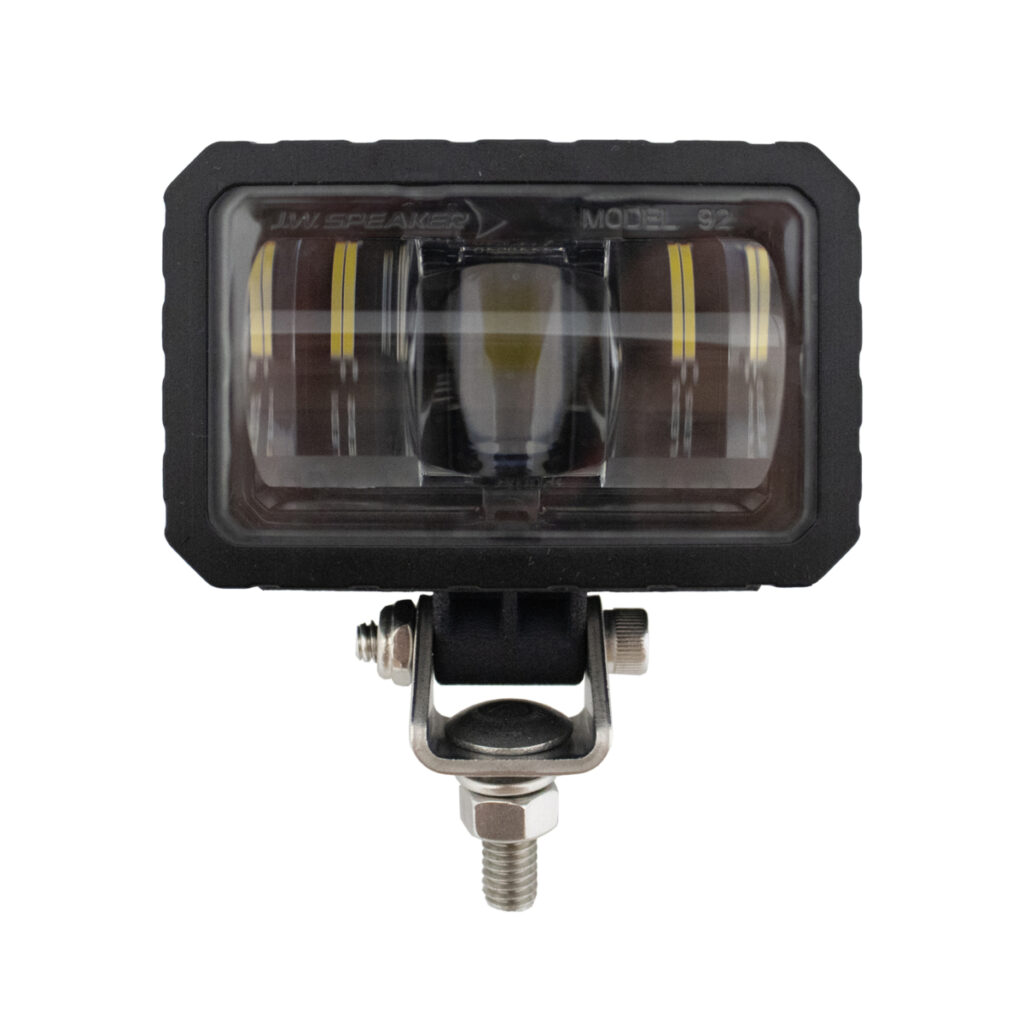

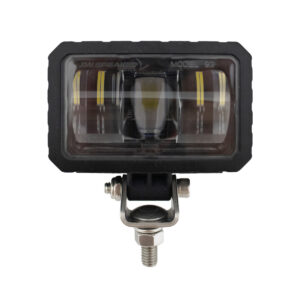

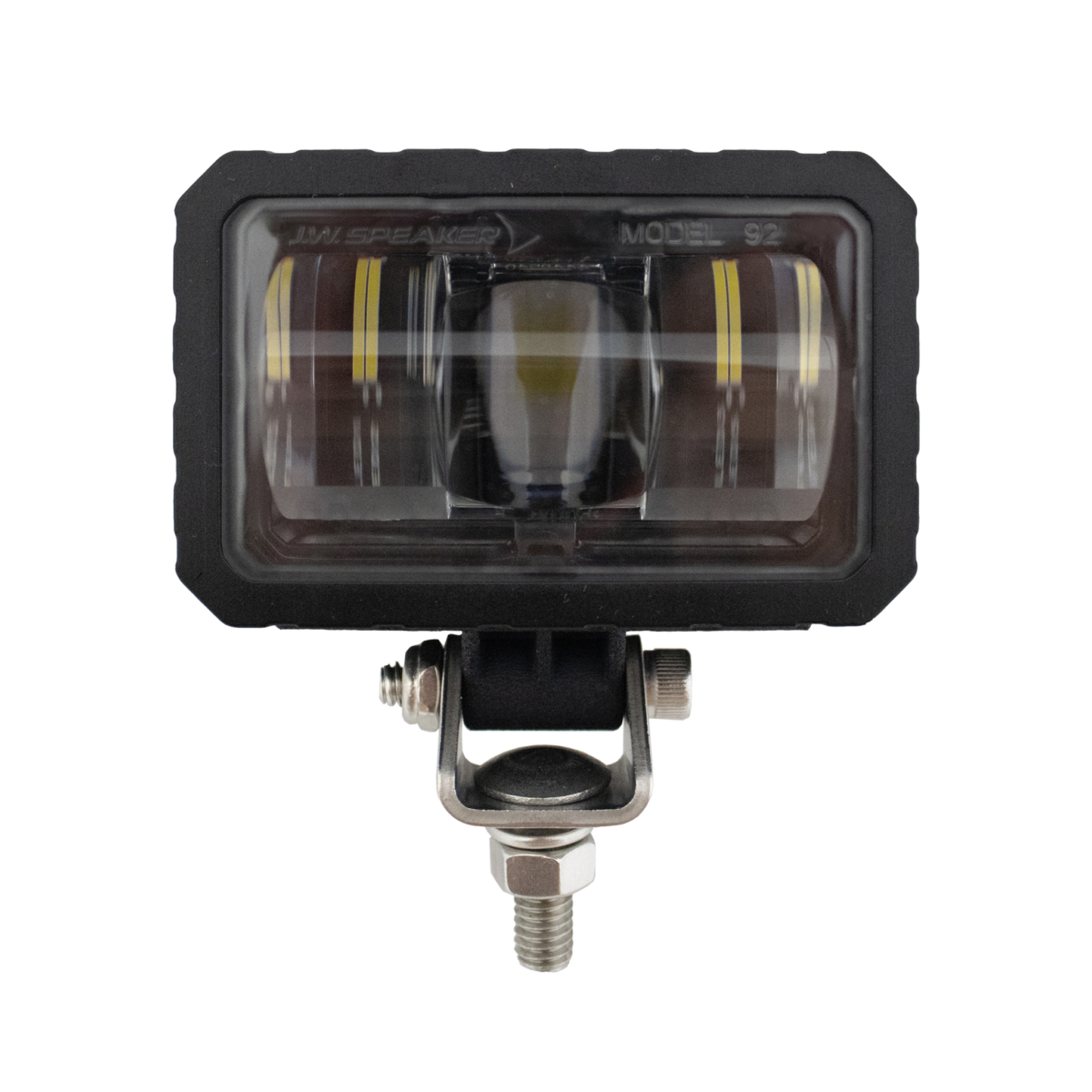

The Pedestal Mounting Hardware Kit (8201031) should only be used with: 0347971(2), 0558321(2), 0560251(2), 0560121(2)

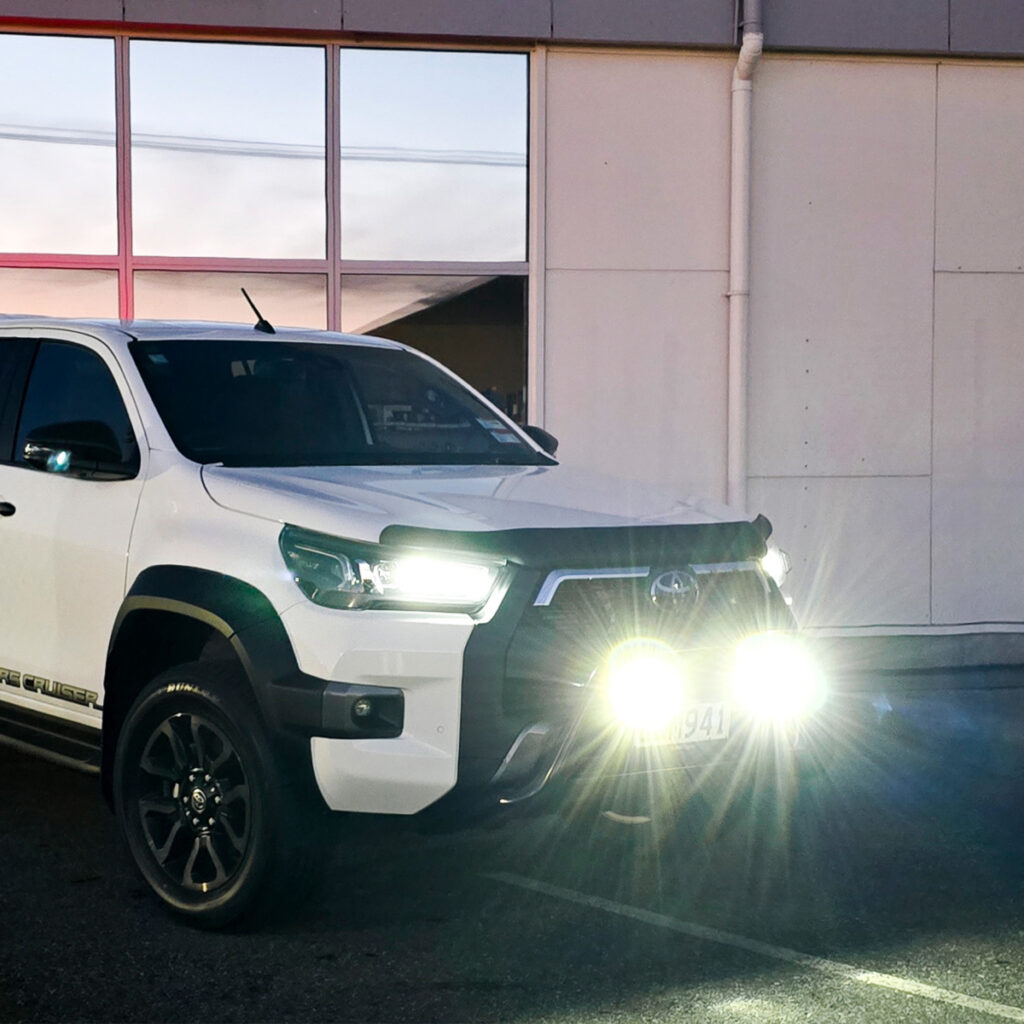

Mosaic LED Auxiliary Light Kits

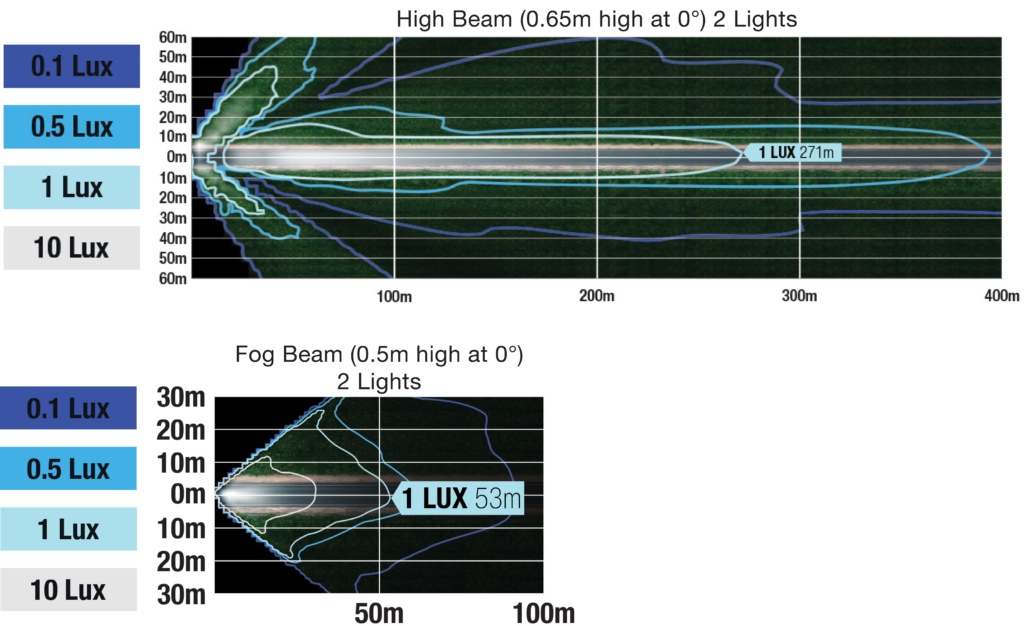

The Mosaic is now available in preassembled Auxiliary High Beam and Fog Light Kits that are fully ECE road-legal. Designed for straightforward installation, each kit comes ready to go with everything needed to get you wired, mounted, and road ready. Perfect for upgrading a work truck or heavy-duty rig, these lights are engineered to deliver consistent, road ready performance.
Applications: Automotive, Construction, Industrial, Material Handling, Mining, Specialty Vehicles, Truck & Bus, Motorcycle, Off-Road 4x4, Powersports
J.W. Speaker Model 92 LED Mosaic Modular Lighting System Parts Enquiry ▲

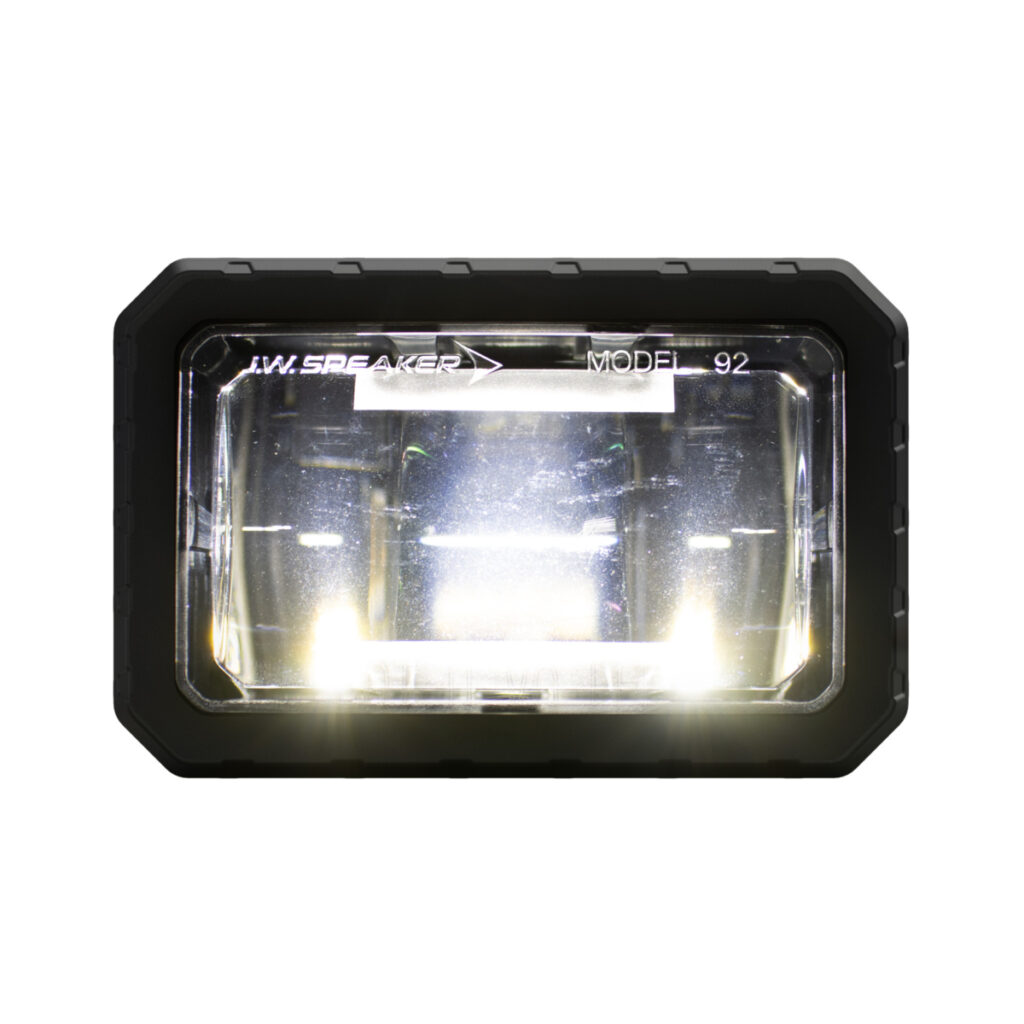

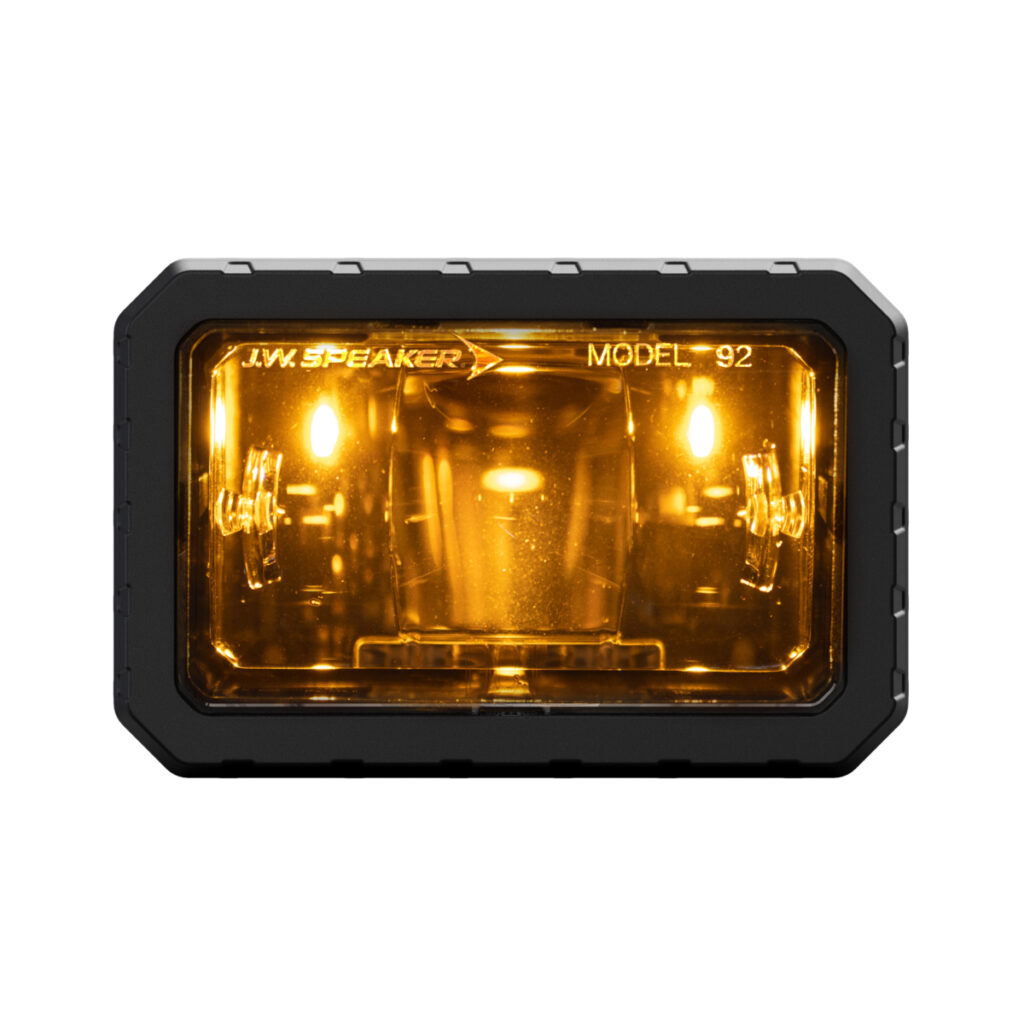

J.W. Speaker Model 92 LED Mosaic Modular Lighting System, 12-24V LED DOT/ECE DI & DRL Light

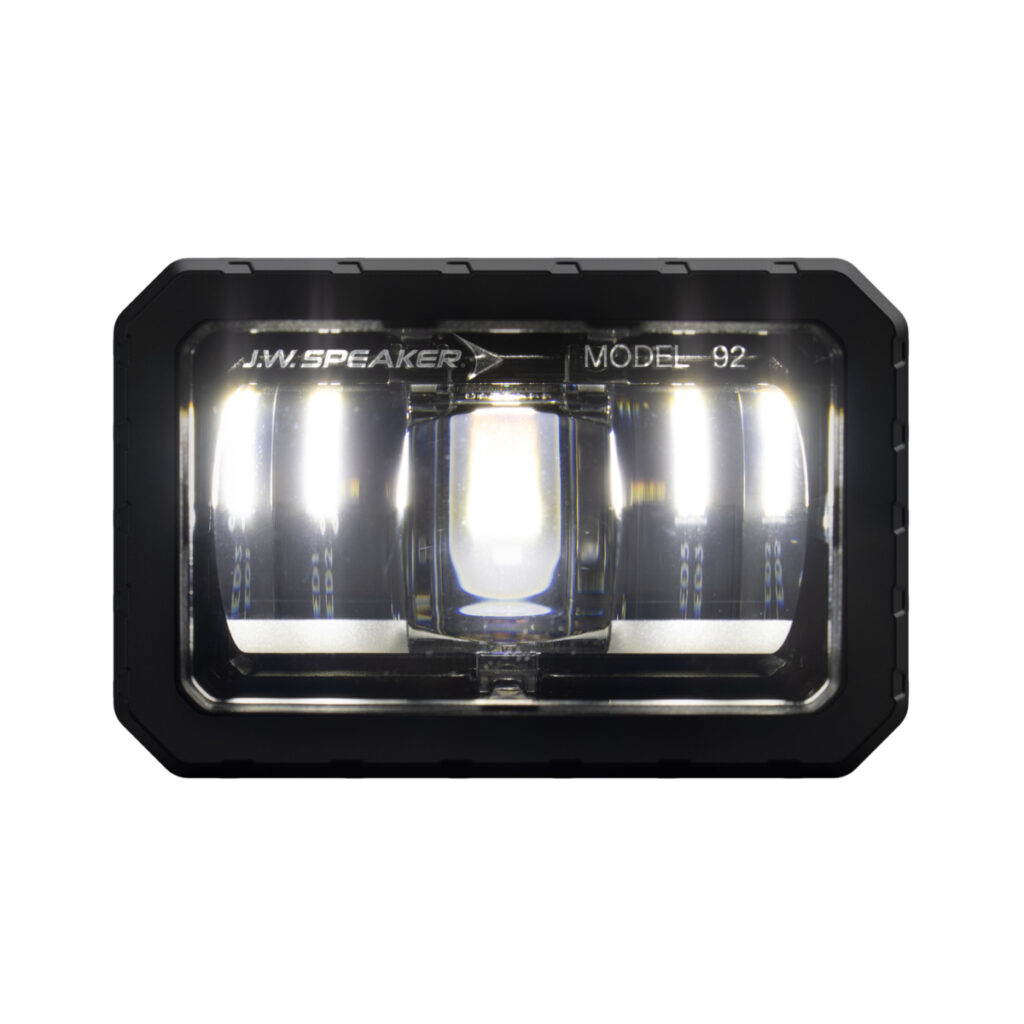

J.W. Speaker Model 92 LED Mosaic Modular Lighting System, 12V LED SAE/ECE Fog Light

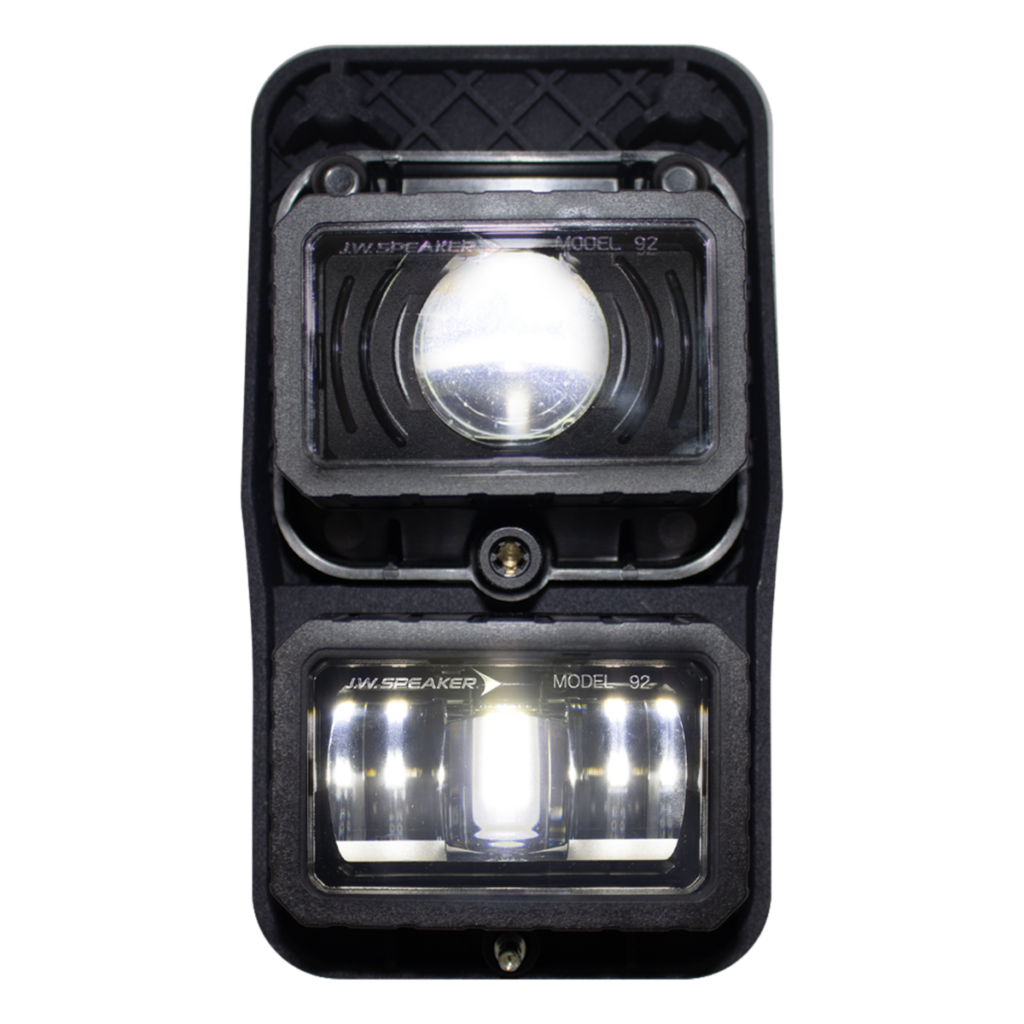

J.W. Speaker Model 92 LED Mosaic Modular Lighting System, 12V LED SAE High Beam & DRL Headlight

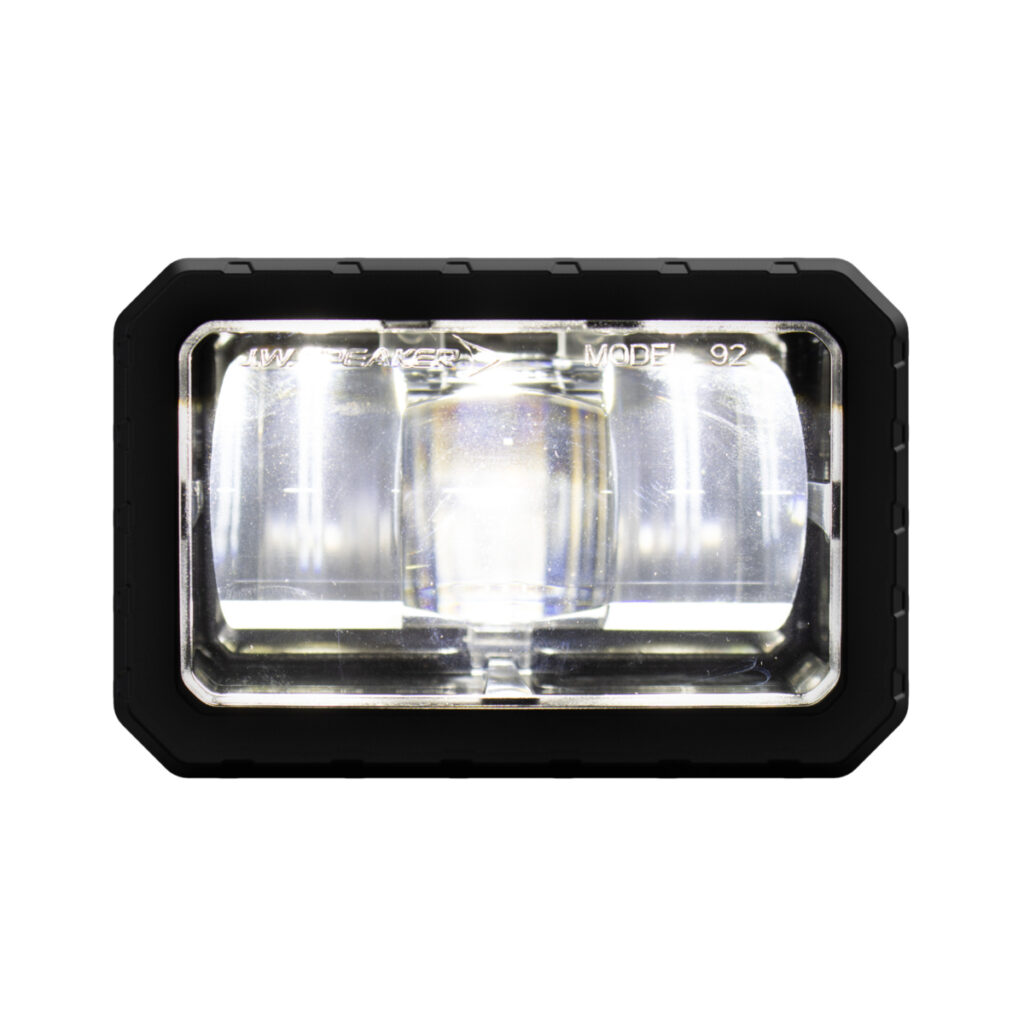

J.W. Speaker Model 92 LED Mosaic Modular Lighting System, 12V LED SAE/ECE Cornering Light
J.W. Speaker Model 92 LED Mosaic Modular Lighting System, 12V LED SAE/ECE Symmetric Low Beam Headlight
J.W. Speaker Model 92 LED Mosaic Modular Lighting System, 12V LED SAE/ECE Symmetric Low Beam Headlight
J.W. Speaker Model 92 LED Mosaic Modular Lighting System, 24V LED ECE Cornering Light
J.W. Speaker Model 92 LED Mosaic Modular Lighting System, 24V LED ECE Fog Light

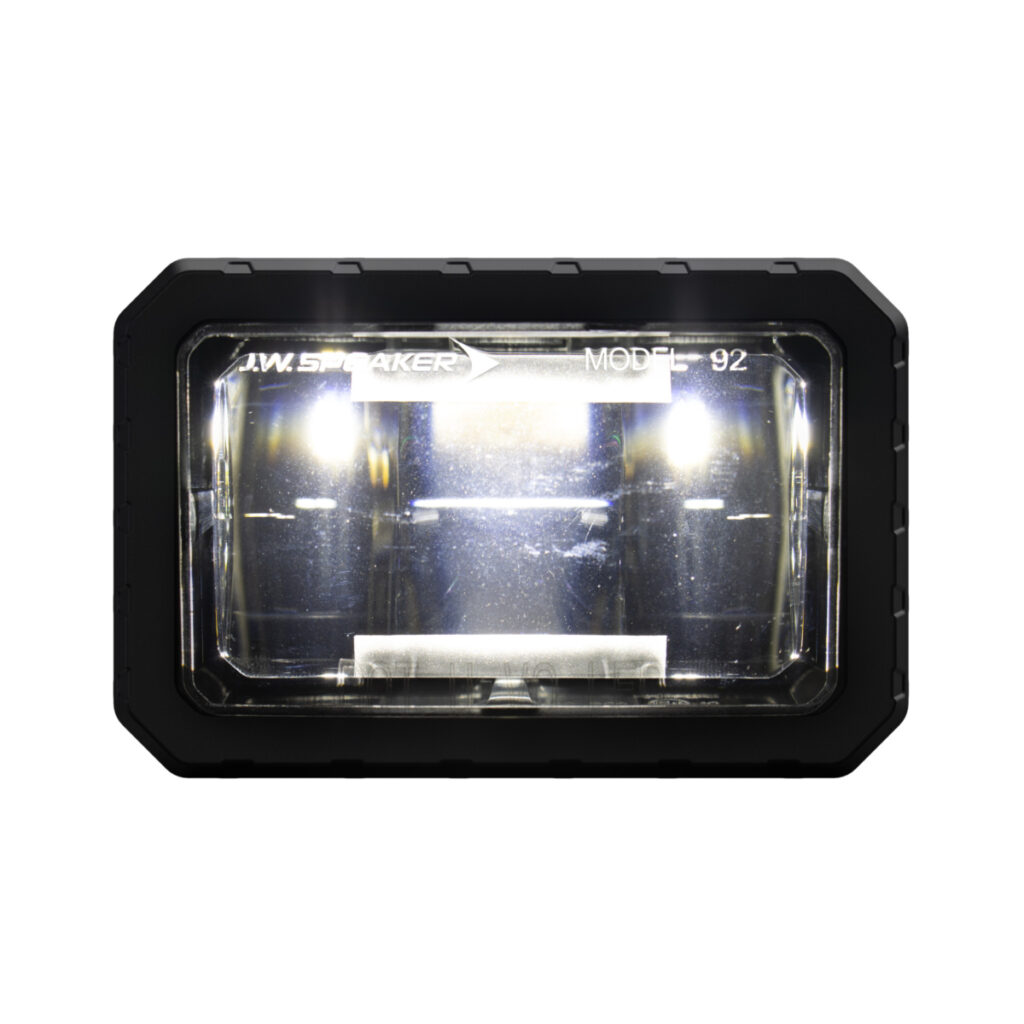

J.W. Speaker Model 92 LED Mosaic Modular Lighting System, 12V LED DOT/ECE High Beam & Front Position Headlight
J.W. Speaker Model 92 LED Mosaic Modular Lighting System, 12V LED DOT RHT Vertical Low Beam Headlight

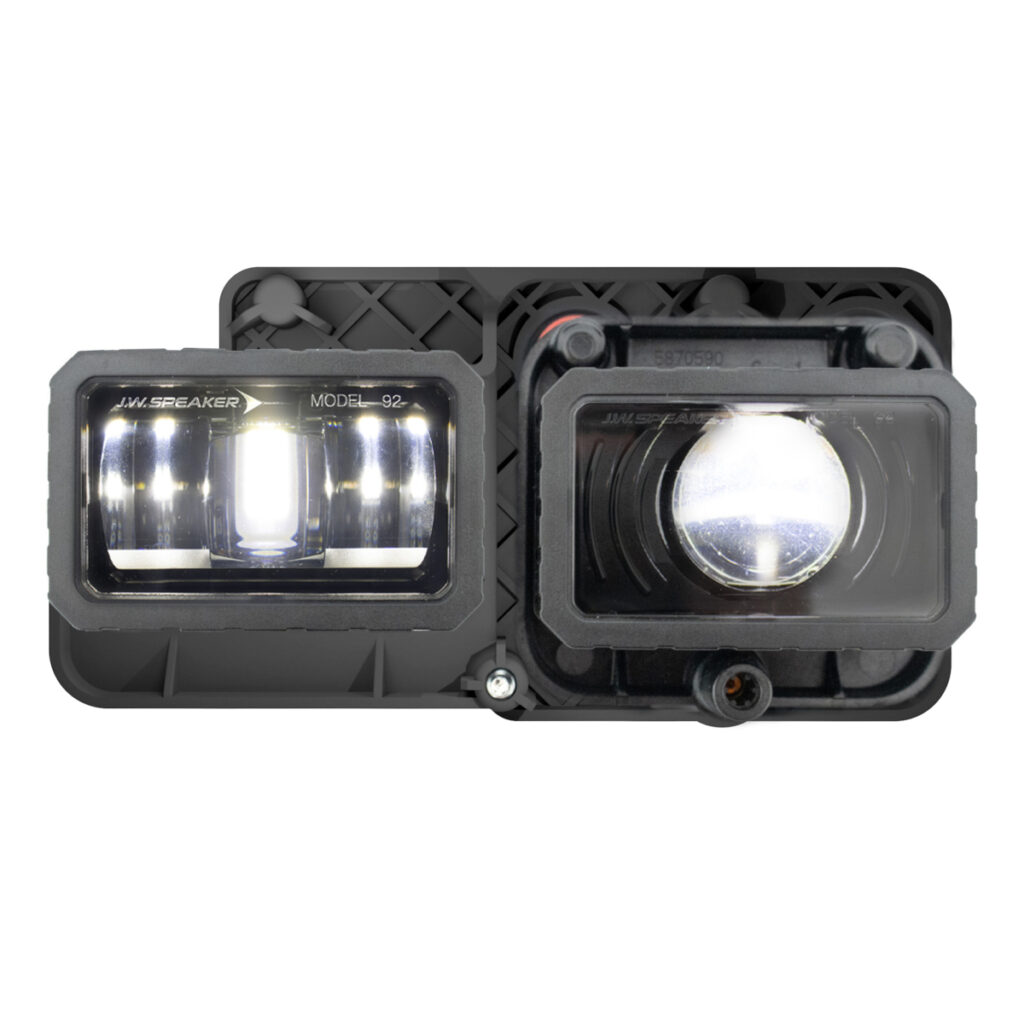

J.W. Speaker Model 92 LED Mosaic Modular Lighting System, 112V LED DOT RHT Horizontal Low Beam Headlight – LH Light
J.W. Speaker Model 92 LED Mosaic Modular Lighting System, 12V LED DOT RHT Horizontal Low Beam Headlight – RH Light
J.W. Speaker Model 92 LED Mosaic Modular Lighting System, 12V LED Fog Light – 2 Light Kit with Mount & Wire Harness
J.W. Speaker Model 92 LED Mosaic Modular Lighting System, 24V LED Fog Light – 2 Light Kit with Mount & Wire Harness
J.W. Speaker Model 92 LED Mosaic Modular Lighting System, 24V LED High Beam & Front Position – 2 Light Kit with Mount & Wire Harness
J.W. Speaker Model 92 LED Mosaic Modular Lighting System, 12V LED High Beam & Front Position – 2 Light Kit with Mount & Wire Harness
