Vision X 40W Cannon Series

Vision X 40W Cannon Series

Brand: Vision X
Origin: USA


Click for:

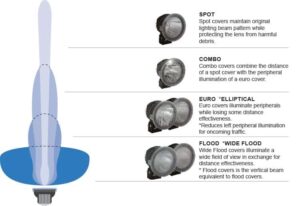

The new Vision X 4.5″ Light Cannon XP uses a stronger singlesource 40W LED over the standard 25W Cannon for added power output from the same size light. The Light Cannon XP comes equipped with advanced IRIS reflector technology to place it at the top of its class in the single source LED lighting division. Light Cannon is also like having 12 lights in 1. It enables optional Snap on polycarbonate cover filters to quickly change the beam pattern from Spot to Euro or Flood, while the colored filters (Clear, Blue, Amber, or Red) can improve visibility in various conditions LED Light Cannons are available in a two light kit.

Vision X 40W Cannon Series Features & Benefits

  • Exclusive Luminous Ultra-Premium LED Smoothest Light Pattern
  • Intense 10° spot pattern
  • Universal Single Bolt Mounting
  • First of its kind single-source 40W LED
  • Proprietary IRIS Reflector Technology
  • Ultra Light weight 2 lb Hybrid Construction
  • Integrated Electronic Thermal Management
  • Single lights and kits available

Vision X 40W Cannon Series Specifications

WarrantyExtended
Available Housing ColorBlack
Available Beam Patterns10°, Snap-On Filters Available
Raw Lumens3,000 rLumens
Effective Lumens2,100 eLumens
Wattage40W
Weight2.02 lb/920 g
LED Lifespan50,000 hours
Optic Purity90%
Drive at90%
Input Voltage9-32V DC
Amp Draw3.33A
IP RatingIP68
Vibration Rating15.6G
Operating Temperature-40 Celsius ~ +85 Celsius

Vision X 40W Cannon Series Specifications Flyer (PDF)


Applications: Fleet, light vehicles (LV’s), 4WDs, offroad, commercial trucks and buses


Dimensions:
Width: 5.75" (146 mm), Height: 4.72" (120 mm), Depth: 4.36" (110.7 mm)

Vision X 40W Cannon Series Parts Enquiry

Part#
Description
