Brand:
Vision X
Origin: USA
Manuf. PN: STL2Y90PSEAC, STL2Y90PSEDC, STL2Y90PSEACDC
Click for:

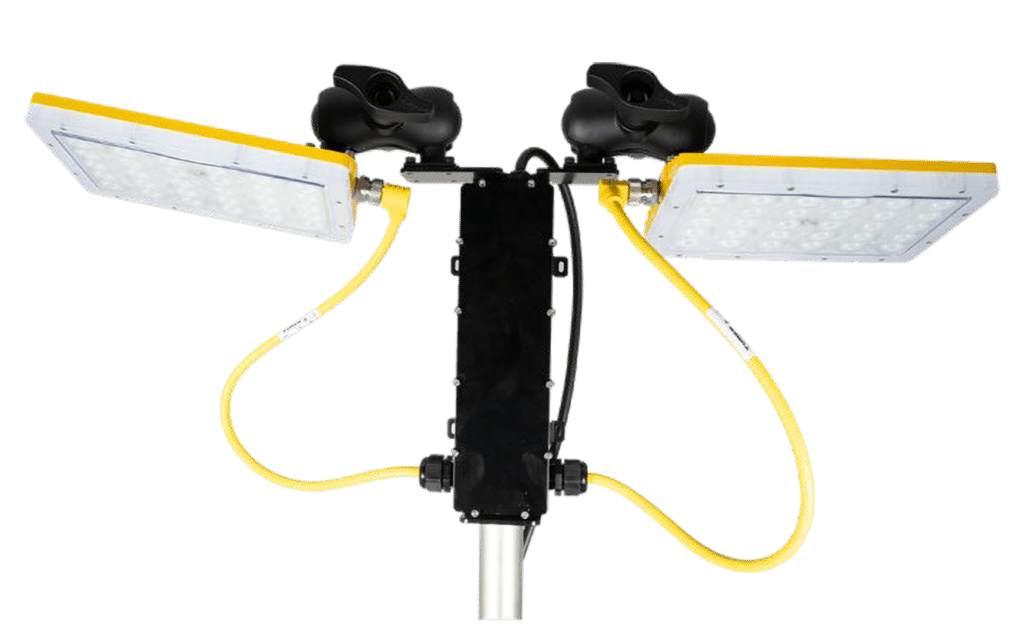

The Vision X Paver Kit Light is a purpose-built LED lighting solution designed specifically for asphalt paving and road construction equipment, delivering powerful, controlled illumination exactly where operators need it most.
Developed for use on modern asphalt pavers from leading OEMs such as Caterpillar, Volvo Construction Equipment, Vögele, Dynapac, Ammann and BOMAG, this kit is engineered to withstand the extreme heat, vibration, dust, and wash-down conditions common in paving operations.
Producing 33% more usable light than previous paver lighting solutions, the Vision X Paver Kit significantly improves visibility across the screed, augers, mat edges, and work zones — helping operators deliver consistent paving quality during night works, early starts, and low-light conditions.
Why Proper Lighting Matters on Asphalt Pavers
Asphalt paving is a precision operation. Poor lighting can result in:
- Inconsistent mat finish and edge definition
- Reduced ability to detect segregation or surface defects
- Increased risk to ground personnel and operators
- Lower productivity during night or extended shifts
The Vision X Paver Kit Light addresses these challenges by providing:
- High-output, controlled LED illumination focused on critical paving areas
- Reduced glare and light spill that can distract operators
- Improved safety and situational awareness around moving machinery
Vision X Paver Kit Light Features & Benefits ▲
- 30,600 raw lumens per light head for exceptional work-area visibility

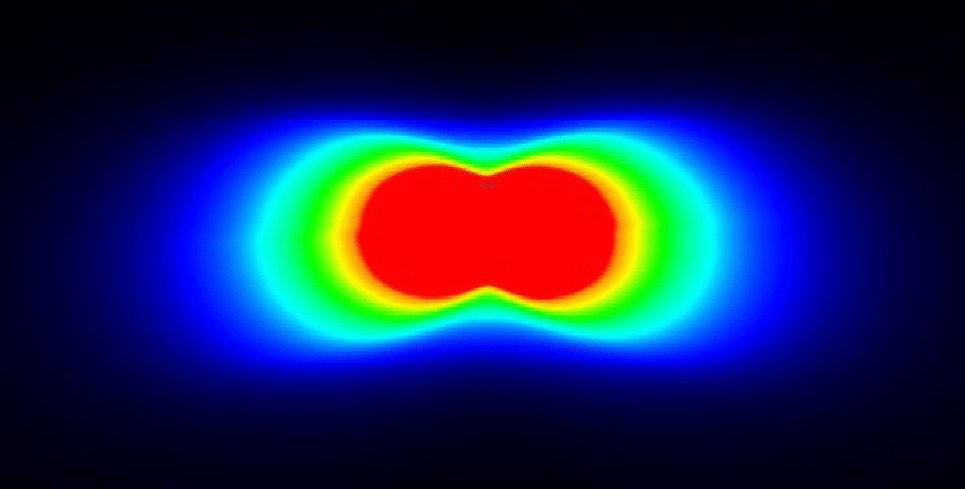

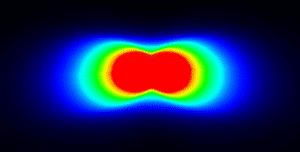

- Optimised optical pattern delivers light where it’s needed — not wasted into the operator’s line of sight
- Fully adjustable light heads using RAM double-socket mounts

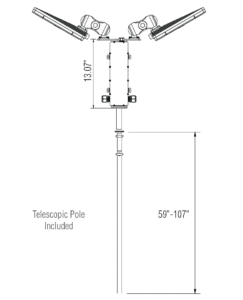

- Telescopic pole mount included (59”–107”) to suit a wide range of paver configurations
- Stainless steel quick-disconnects for fast installation and serviceability
- Heavy-duty powder-coated aluminium construction for long-term durability
- IP68 / IP69K rated for high-pressure wash-down environments
- Designed to withstand high vibration and extreme temperatures typical of asphalt paving operations
Built for Harsh Paving Environments
The Vision X Paver Kit Light is designed for real-world construction conditions:
- Resistant to heat, asphalt fumes, dust, vibration, and moisture
- Operates reliably from -40°C to +60°C
- Long 50,000-hour LED lifespan reduces maintenance and downtime
- Backed by a 3-year manufacturer warranty
Typical Applications
- Asphalt pavers
- Road construction and maintenance vehicles
- Civil construction machinery
- Municipal paving fleets
- Night paving and low-light roadworks
The Vision X Paver Kit Light is a proven solution for contractors and fleet owners who demand reliable, high-performance lighting to support safe, high-quality paving outcomes.
Vision X Paver Kit Light Specifications ▲
| Raw Lumens | 30,600 lm |
| Effective Lumens | 20,000 lm |
| Wattage | 180W |
| Amp Draw | 1.1A @ V AC, 11.1A @ 12V DC |
| Color Temperature | 6000K |
| Operating Voltage | 90-277V AC, 9-32V DC |
| Operating Temperature | -40° - 60°C |
| Lifespan | 50,000 Hrs |
| Connector | NEMA 15A or High Amp Deutsch |
| Housing | Aluminum |
| Finish | Powder Coated |
| Lens | Polycarbonate |
| Mounting | Telescopic Pole Mount |
| Fixture Weight | 28.5 lbs |
| EMC Emission | (CISPR 25) Edition 3.0 (2008-03) Class 3 |
| Ingress Protection | IP-68/IP69K |
| Vibration Rating | 15.6 Grms |
| Warranty | 3 Years |
Vision X Paver Kit Light Specifications Flyer (PDF) ▲
Applications: Asphalt pavers, road construction vehicles, road maintenance equipment, civil construction machinery, municipal paving operations
