Brand:
ABL Lights
Origin: USA
Click for:

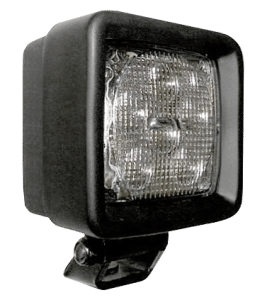

ABL 500 LED is a new multi-volt (12-24V | 12-80V | 24V Only) LED work lamp offering a direct substitution for your 12V 55W & 24V 70W Halogen and 35W HID. It is equipped with a patented LED-engine holding high performance LEDs. To secure high output, performance and long life time, a patented cooling system is used. The ABL 500 LED Work Lamp meets the demands of the heavy equipment industry.
ABL 500 Series LED2000 3X3 28W Work Lamp Features & Benefits ▲
- 6 LEDs produce 2000 effective lumens from 28W
- Pedestal and suspended mounting options
- IP68, IP69K rating
- 15Grms @ 24-2000Hz Vibration and 60G Shock rating
- Available in Flood and Long-Range
ABL 500 Series LED2000 3X3 28W Work Lamp Specifications ▲
| Type | LED Work Lamp, LED Work Light |
| Bulb | 6 LEDs |
| eLumens (effective) | 2000 lm |
| rLumens (raw) | 2500 lm |
| CCT | 6000K |
| Housing | Aluminium Alloy |
| Mount | Pedestal, suspended |
| Optics | Hardened glass, impact protected |

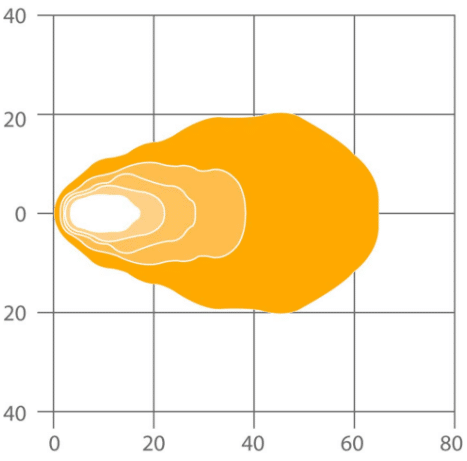

| Light Pattern | Flood, long range |
| Voltage | 12-100V multi, 24V only option |
| Amp | 1.2A @ 24V |
| Connection | Deutsch, Amp, cable |
| Vibration Test | 15Grma 24 - 2000Hz |
| Shock Test | 60G |
| EMC | ISO13766, 14982, 12985 |
| Surge Protection | 130V continuous, 200V 100ms, 1800V 50μs |
| Polarity | No polarity |
| Ingress Protection | IP68 / IP69K |
| Operating Temp | -40°C to +85°C |
| Warranty | 5 years |
ABL 500 Series LED2000 3X3 28W Work Lamp Specifications Flyer (PDF) ▲
Applications: Material Handling, Heavy Equipment, Mining, Construction, Agriculture, Forestry, Utility Vehicles, Marine
Dimensions:
Width: 4.016" (102 mm), Height: 3.85" (98 mm), Depth: 3.15" (80 mm)
ABL 500 Series LED2000 3X3 28W Work Lamp Parts Enquiry ▲
ABL 500 Series LED2000 3X3 28W Work Lamp: 24V Flood w/DT
ABL 500 Series LED2000 3X3 28W Work Lamp: 24V Long Range w/DT
ABL 500 Series LED2000 3X3 28W Work Lamp: 12/80V Flood w/DT
ABL 500 Series LED2000 3X3 28W Work Lamp: 12/80V Long Range w/DT
ABL 500 Series LED2000 3X3 28W Work Lamp: 12/80V Amber Flood Plastic Lens w/DT
