Brand:
ABL Lights
Origin: USA
Click for:
Perfect all-round compact OEM quality LED light for fleets, support and utility equipment, service trucks, fork lifts, and small to mid-size construction equipment.

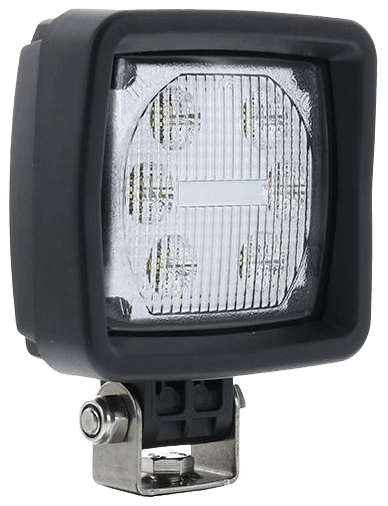

The ABL SL LED1000 is a compact LED-powered work lamp with R23 reverse approval. This 14W version features 6 LED bulbs and pumps out an impressive 1000 lumens. This lamp exceeds everyday demands in all applications from handling equipment to heavy vehicles.
ABL Lights have revolutionised the compact heavy-duty lights market with a value-priced high-performance light series. Designed for harsh environments, these lights feature IP68/69K ingress protection, 15 Grms @ 24-2000Hz vibration resistance, 60G shock rating, crystal clear hardened glass lens that will last the test of time, top of class EMC ratings, universal mounting package, plus 4 years warranty for peace of mind.
NEW no-glare optics option: No-glare optic pushes the light emitted from the fixture forward and down forming a cut-off line. The light allows for the work site to be lit without blinding workers or on-coming traffic. Making for a safer work environment and reducing fatigue on workers. Click for full ABL No-glare Range
CISPR 25 Class 5 standards
These ABL compact LED work lamps are one of the few LED work lamps in the market that meet CISPR 25 Class 5 standards. With heavy equipment, trucks and fleets packing more and more sophisticated electronics it is imperative that potential noise / interference is eliminated.
ABL SL LED1000 Compact LED Worklight Features & Benefits ▲
- 1000 effective Lumens
- Meets CISPR 25 Class 5 standards
- Glass Lens
- IP68/69K ingress protection
- 15 Grms @ 24-2000Hz vibration resistance
- 60G shock rating
- R23 Reverse Approval
- Available in Flood, Long Range or Asymmetrical Flood
ABL SL LED1000 Compact LED Worklight Specifications ▲
| Type | Reverse work light (R23 reverse approved) |
| Voltage | 12-24V DC |
| Tech | LED |
| Wattage | 14W |
| Current | 0.58A @ 24V DC |
| Lumens | 1000 Lu |
| Operating Temperature | -40°C to +85°C |

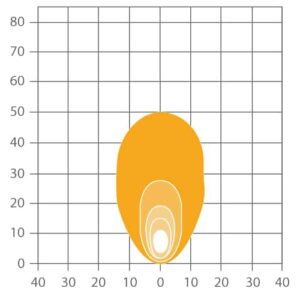

| Beam Pattern | Flood, Long Range or Asymmetrical Flood |
| Connector | AMP 2 pin, DT 2 pin |
| Mounting | Pedestal, suspended |
| Lens Material | Hardened glass, Plastics |
| Dimensions (DxLxH) | 2.24x3.97x3.81" inches (57x101x97mm) |
| Weight | 0.9 lbs (0.45kg) |
| Load Dump / Surge Dump | Surge: 36V continuous / ISO 7637-2 Pulse 5a |
| IP Rating | IP68 / 69K |
| Polarity | Protected against reverse voltage |
| Salt Spray Test | ISO 9227 |
| Vibration Resistance | 15 Grms @ 24-2000Hz |
| Shock Resistance | 60G |
| EMC | ISO 13766, ISO 14982, ISO 12985, CISPR25 Class 5 |
| Warranty | 4 Years |
APS Recommended LED Equivalent using same Lighting OEM:
| APS PN | Brand | Manuf. PNs | OEM PNs | Description |
| SL1000F | ABL | 550-0021, SL 1000 LED, A0787A709200 |
CAT 214-2968, CAT 2142968 | Cat® 12Volt 3X3 Shock Resistant Suspended Flood Lamp |
| CAT 234-7727, CAT 2347727 | Cat® 12Volt 104mm Long Vertical Flood Lamp for lighting in an electrical and starting system | |||
| CAT 240-0101, CAT 2400101 | Cat® 12Volt Lamp Assembly (Flood) (Long Range) (Halogen) | |||
| CAT 290-5760, CAT 2905760 | Cat® 12Volt Vertical Mounted Flood Lamp | |||
| CAT 9X-1439, CAT 9X1439 | Cat® 24Volt LAMP G | |||
| CAT 219-6485, CAT 2196485 | Cat® 24Volt Vertical Mounted Flood Lamp | |||
| CAT 219-6486, CAT 2196486 | Cat® 24Volt Vertical Mounted Flood Lamp | |||
| CAT 219-6487, CAT 2196487 | Cat® 24Volt Suspended Mounted Flood Lamp | |||
| CAT 219-6488, CAT 2196488 | Cat® 24Volt Suspended Mounted Flood Lamp | |||
| CAT 225-5075, CAT 2255075 | Cat® 24Volt Suspended Mounted Flood Lamp | |||
| CAT 234-4324, CAT 2344324 | Cat® 24Volt Vertical Mounted Flood Lamp | |||
| CAT 353-2833, CAT 3532833 | Cat® 24Volt Suspended Mounted Flood Lamp | |||
| CAT 353-2834, CAT 3532834 | Cat® 24Volt Vertical Mounted Flood Lamp | |||
| SL1000LR | ABL | 551-0022 | CAT 214-2969, CAT 2142969 | Cat® 12Volt 55W Halogen 3X3 Shock Resistant Flood Lamp |
| CAT 290-5749, CAT 2905749 | Cat® 24Volt 2.4 Ampere High Beam Suspended Plastic Front Lamp | |||
| SL1000A | ABL | 550-0027 | ||
| SL1000NG | ABL | 555-0019, SL 1000 LED NO GLARE |
ABL SL LED1000 Compact LED Worklight Specifications Flyer (PDF) ▲
Applications: Heavy equipment, mining, construction, road and utility equipment, forestry, agriculture

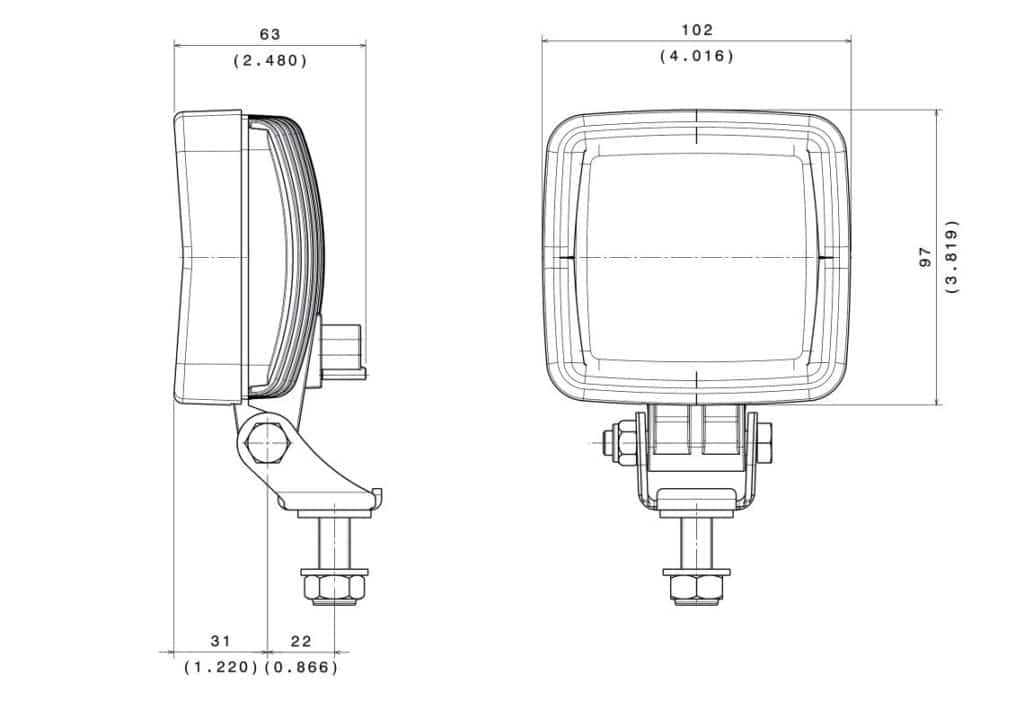

Dimensions:
Width: 4.0" (102 mm), Height: 3.82" (97 mm), Depth: 2.24" (57 mm)
ABL SL LED1000 Compact LED Worklight Parts Enquiry ▲
ABL SL LED1000: Flood, 1000 Lu, 12-24V DC, 0.58A, 14W, 550-0021
ABL SL LED1000: Long Range, 1000 Lu, 12-24V DC, 0.58A, 14W, 551-0022
ABL SL LED1000: Asymmetrical Flood, 1000 Lu, 12-24V DC, 0.58A, 14W
ABL SL LED1000: No Glare optics, 1000 Lu, 12-24V DC, 0.58A, 14W, 555-0019, SL 1000 LED NO GLARE
ABL SL LED1000: Amber, 1000 Lu, 12-24V DC, 0.58A, 14W, 550-0027
