PreView® Wireless WorkSight – Pulsed Radar

PreView® Wireless WorkSight – Pulsed Radar

Brand: PreView
Origin: USA


Click for:

PreView® Wireless utilises Preco’s patented, pulsed radar technology to detect objects in an operator’s blind spot and reduce backing accidents. If something is detected, the operator receives an audible and visual active warning in the cab, giving them time to react and avoid an accident.

By eliminating the need to install cables through the truck body, PreView Wireless reduces installation time by more than half, while still providing the best blind spot detection protection available. Made from rugged components designed to withstand the harsh environmental conditions found in many industries, from mines and construction sites to long-haul travel and ports.

PreView® Wireless WorkSight – Pulsed Radar Features & Benefits

  • Secure dedicated wireless network connection
  • Detection Range* up to 15m (45ft) with the ability to set detection zone as low as 3m (10ft). Offers ability to customise the visual and audible alert at different distances.
  • Detection range customised through the in-cab display
  • Provides one touch audible alert acknowledgement
  • Warning alerts automatically change as the threat of accident increases
  • Intuitive graphics for each detection zone utilises standard warning protocols: Stop sign, Yield sign and Green light
  • Less than 0.25A current draw
  • Connects to reverse lights for power
  • Ability to customise detection zone onsite with PrecoNet Service Tool
  • Built to meet rugged SAE J1455 Specs

* Detection Range is dependant upon the type of obstructions between the sensor and display location.

Federal Signal eHorn-HV Videos




PreView® Wireless WorkSight – Pulsed Radar Specifications

Detection RangesUser adjustable from 3 - 15m (10 - 45ft)
Warning RangesUser adjustable
TransmitterPulsed RF transmitter at 5.8GHz operating under FCC Part 15.249
Voltage9-33V DC
ElectronicsSolid state
Current Draw0.2 amp maximum, inrush current limited to 1A
Vibration25G RMS all three axes
Shock25G all three axes
IP RatingIP67 (encapsulated to protect from dust and moisture)
Operating Temperature-40°C to +85°C
WirelessZigBee 2.4GHz, IEEE 802.15.4 compliant DSSS baseband
ComplianceCompliant with FCC part 15.247, FCC ID: OXZWD7102
Data Update Rate125 ms
PolarityNegative ground, polarity protected to 150V
Transient Spike ProtectionOver voltage protected to 150V
Housing (sensor)Polycarbonate radome
Sensor MountFour 0.25" (6.4mm) diameter holes on 8.54" horizontal centers and 2.00" vertical centers.
Unit is supplied with #10 SS screws for mounting purposes.
Display MountUser dependent, ¼-20 thread

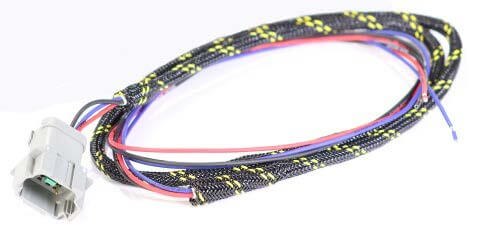

Sensor ConnectionDeutsch DT06-08SA-E008
Display ConnectionThree 26 AWG wires, connect to ignition and/or reverse lamp circuit
Display Aux OutputSingle 26 AWG wire, +33V tolerant
Active State: switched to ground, over current protected to 125mA sink maximum.
Inactive State: high impedance
Sensor Weight2.3 lb (1.04 kg)
Sensor Dimensions (DxWxH)1.4x10.5x4.4" (36x267x112mm)
Display Weight0.27 lb (0.12 kg)
Display Dimensions (DxWxH)1.34x3.6x3.36" (34x84x85mm)
Wireless Signal RangeUp to 15m / 45’ (please test this range prior on the vehicle as this may vary
depending upon the type of obstructions between the sensor and display location)

PreView® Wireless WorkSight – Pulsed Radar Specification Flyer (PDF)

Manuals

Installation Guide


Applications: Heavy equipment, mining, agriculture, oil & gas, construction, long-haul, trucks, material handling, port & marine, military, utility vehicles
