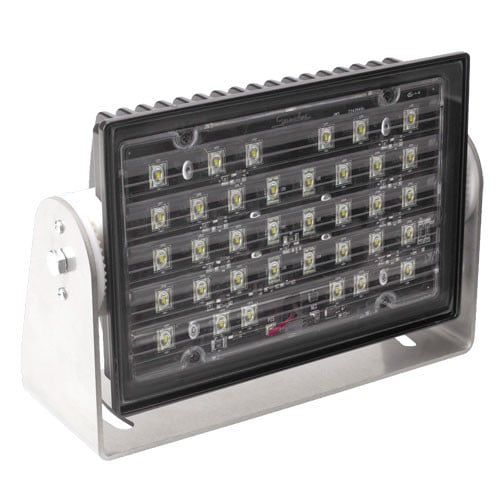

J.W. Speaker A523 Series 8″ x 9″ Rectangular LED Side Mount Scene Light

J.W. Speaker A523 Series 8″ x 9″ Rectangular LED Side Mount Scene Light

Brand: JW Speaker
Origin: USA


When maximum light with the widest beam pattern is required, rely on the A523 Series Scene Light Side Mount. This light is perfect for night time area lighting applications including mining, marine, construction, port, emergency vehicle and perimeter lighting. Vibration that contributes to bulb failures is not an issue with these LEDs.

Poor quality heat management and optics are LED service life and efficiency killers. JW Speaker pride themselves on designing, testing and producing USA manufactured LED fixtures that guarantee you reliable service and maximum efficiency in getting the light where you need it, on the ground.

Features and Benefits

  • 8,100 Raw Lumens; 3,900-4,300 Effective Lumens
  • Available in 12V DC, 24V DC, 120V AC, 240V AC or 120-240V AC configurations
  • Wide Flood, Medium Flood & Narrow Flood beam patterns available
  • Durable glass lens stands up to harsh environmental conditions
  • Rugged solid state LEDs can withstand shock & vibration
  • Long-lasting LEDs mean never having to replace another bulb again!
  • Die-cast aluminum housing provides maximum protection
  • Universal mount
  • Optional High CRI (Color Rendering Index) configuration is perfect for applications where visual discernment of color is important

“XL” version for extreme industrial conditions also available Click here

Speaker A523 Series Specifications

LensPolycarbonate w/Optics, glass outer lens
Lens PatternWide Flood, Medium Flood or Narrow Flood
HousingDie-Cast Aluminum
ConnectorIntegrated 2-Pin Deutch Weather-Proof Socket (DT04-2P)
MountingUniversal Pedestal Mount
Hardware: (x1) 1/2: Mounting Bolt
Voltage12-24V DC
Light SourceLight Emitting Diodes (LEDs)
8,100 Raw Lu 3,900-4,300 Effective Lu
Amp7.5A @ 12V
3.6A @ 24V
Operating Temperature-40ºC min/ 65ºC max
Warranty4yr | Limited Warranty
Standards ComplianceETL Conformance to UL 2108 (12 & 24V DC versions)
ETL Conformance to UL 1598 (120V AC versions)
ETL Conformance to CSA C22.2 No. 250.0 (All versions)
Sealed to IP67

Applications: Agriculture, Construction, Firefighting, Law Enforcement, Marine, Mining, Rescue, Off-Highway


Dimensions:
Width: 8.7" (221 mm), Height: 6.12" (155.6 mm), Depth: 2.48" (63 mm)
