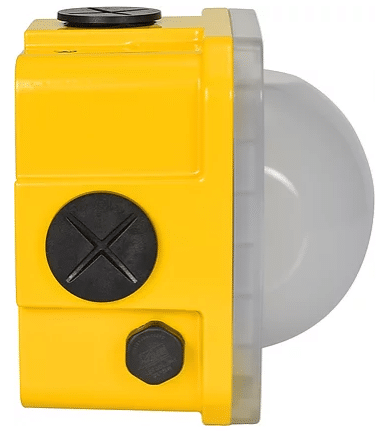

Vision X Corrosion Resistant 10W Junction Box

Vision X Corrosion Resistant 10W Junction Box

Brand: Vision X
Origin: USA


The 10-Watt All-In-One Junction Box LED Light is IP-68/IP69K rated and UL1598a rated for wet locations. Designed to fight against acid mist environments, the 10W is engineered with a plastic tri-coated aluminum housing.

Features and Benefits

  • Protective Coating Eliminates Corrosion in High-Risk Environments
  • Easy Pole or Ceiling Mounting Options
  • 100 Watt Halogen Bulb Replacement
  • UL Certified, IP-68/IP69K Rating

Vision X Corrosion Resistant 10W Junction Box Specifications

Fixture Weight2lbs (0.9kg)
Shipping Weight4lbs (1.8kg)
Mounting(4 ) 3/4” NPT - SIDES
LED5630 (LG) X 40EA
Lumens1,000 lm
Beam Pattern180° Ultra Wide Flood
Wattage10W
Amp Draw0.09A@115V AC | 0.04A @ 230V AC |0.04 @ 277V AC
Color Temperature5000 Kelvin
Operating Voltage90-264V AC | 127-370V DC
Operating Temperature-40°C ~ 60°C
Lifespan50,000hrs
Frequency47-63Hz
THD<20% (@load≥50% 115VAC,230VAC)
(@load≥75% / 277VAC)
Power Factor≥ 0.98/115VAC
≥ 0.95/230VAC
≥ 0.92/277VAC
Short CircuitConstant Current Limiting, Recovers Automatically After Fault Condition is Removed
PolarityReverse Polarity Protection
Housing MaterialPlastic Tri-Coated Aluminum
LensPolycarbonate
FinishGloss Yellow
EMC EmissionCompliance to EN55022, EN61000-3-2 Class A, EN61000-3-3
EMC ImmunityCompliance to EN55024, EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), criteria A
Ingress ProtectionIP68 / IP69K, UL1598a Marine
Vibration Rating15.6 Grms
Warranty5 Years

Specification Sheet

Vision X Corrosion Resistant 10W Junction Box Specification Sheet


Applications: Industrial Lighting, General Area Lighting

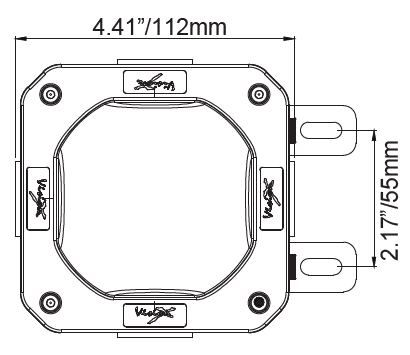

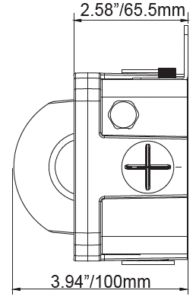

Dimensions:
Width: 4.41" (112 mm), Height: 4.41" (112 mm), Depth: 3.94" (100 mm)

Part#
Description
Usually ships: 5D
Sell Qty: Each
Ship Weight: 2.05 lbs (0.93kg)
Catalog page: 126
