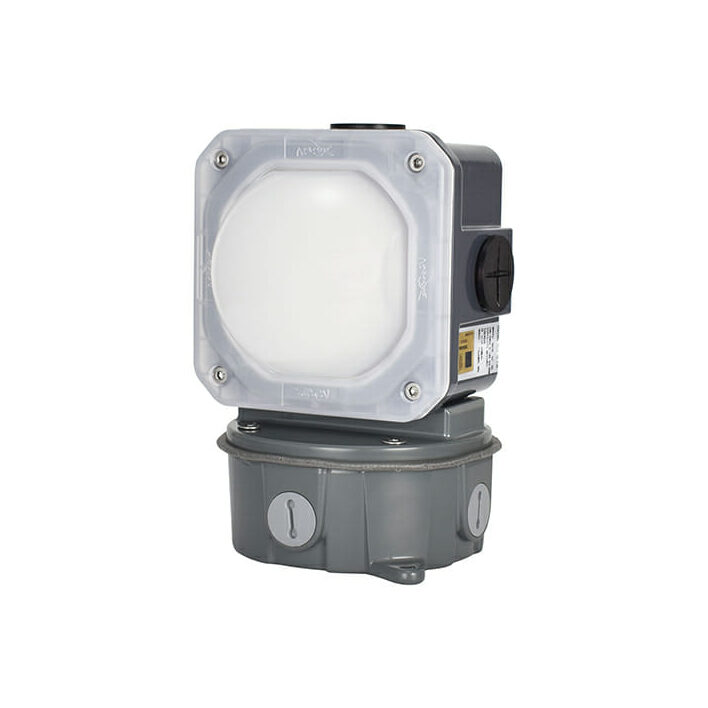

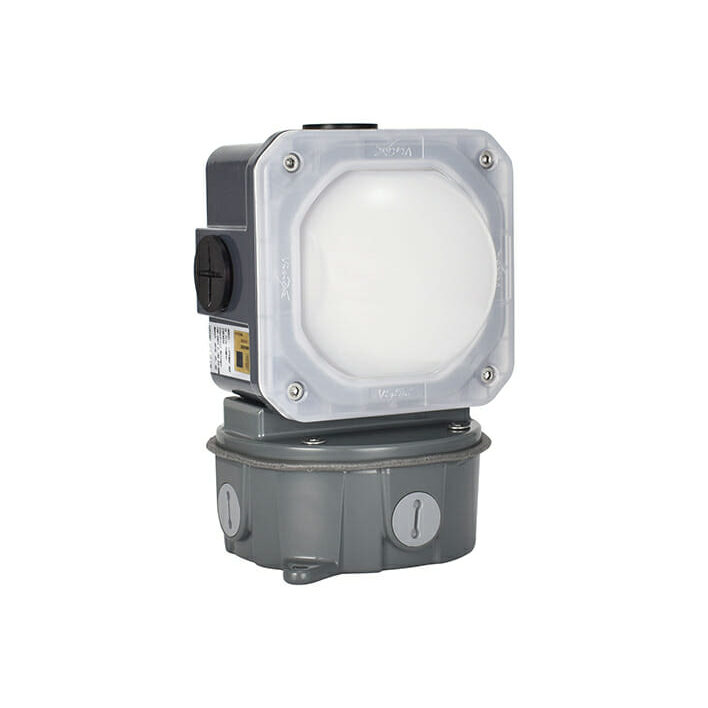

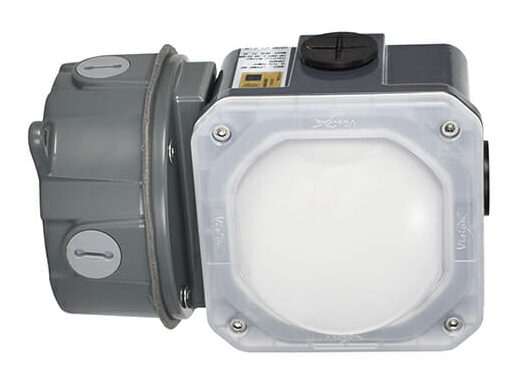

Vision X Equipment & Over-door Lighting LSGSM40180PH

Brand: Vision X
Origin: USA

---

Click for:

•   Features & Benefits
•   Photos & Images

•   Specs Table
•   Specs Flyer (PDF)

•   Parts Enquiry
•   Related Products

Direct bolt on over door and access panel lighting. Provides 200+ degree lighting other LED fixtures cannot match. Reduce unscheduled maintenance with robust mounts and guaranteed light operation. Optional colored covers for indicator lighting available in Red, Amber, Blue and Green. Industry leading LED light output, size, weight and reliability for reduced unscheduled maintenance.

Vision X Equipment & Over-door Lighting LSGSM40180PH Specifications  ▲

Operating Voltage	90-264V AC 127-370V DC
Lumens	1000 Lu
Wattage	10W
Beam Pattern	180°
Operating Temperature	-40°C ~ 60°C
THD	<20% (@load ≥ 50% / 115V AC, 230V AC) (@load ≥ 75% / 277V AC)
Power Factor	≥ 0.98/115V AC ≥ 0.95/230V AC ≥ 0.92/277V AC
Short Circuit	Constant Current Limiting, Recovers Automatically After Fault Condition is Removed
Frequency	47-63Hz
Vibration	15.6Grms
Housing	Die-Cast 6061 Aluminum
Finish	Gloss Grey
Lens	Polycarbonate Lens
Mounting/ Entries	(4) 3/4” NPT - SIDES
Shipping Weight	4 lbs (1.8kg)
Fixture Weight	2 lbs (0.9kg)
LED	5630 (LG)
Amp Draw	0.09A @ 115V AC 0.04A @ 230V AC 0.04A @ 277V AC
Lifespan	50,000 hr
EMC Emission	Compliance to EN55022, EN61000-3-2, Class A, EN61000-3-3
EMC Immunity	Compliance to EN55024, EN61000-4-2,3,4,5,6,8,11; light industry level (surge 2KV), criteria A
Ingress Protection	IP68, IP69K

Vision X Equipment & Over-door Lighting LSGSM40180PH Specifications Flyer (PDF)  ▲

• Vision X Equipment & Over-door Lighting LSGSM40180PH Specification Flyer

---

Applications: Heavy Duty, Industrial, Mining, Construction, etc.
