Vision X MXL Heavy Duty Ripper 12 LED – 18-65V DC

Vision X MXL Heavy Duty Ripper 12 LED – 18-65V DC

Brand: Vision X
Origin: USA


Click for:

60 Grms Rated For High Vibration Applications

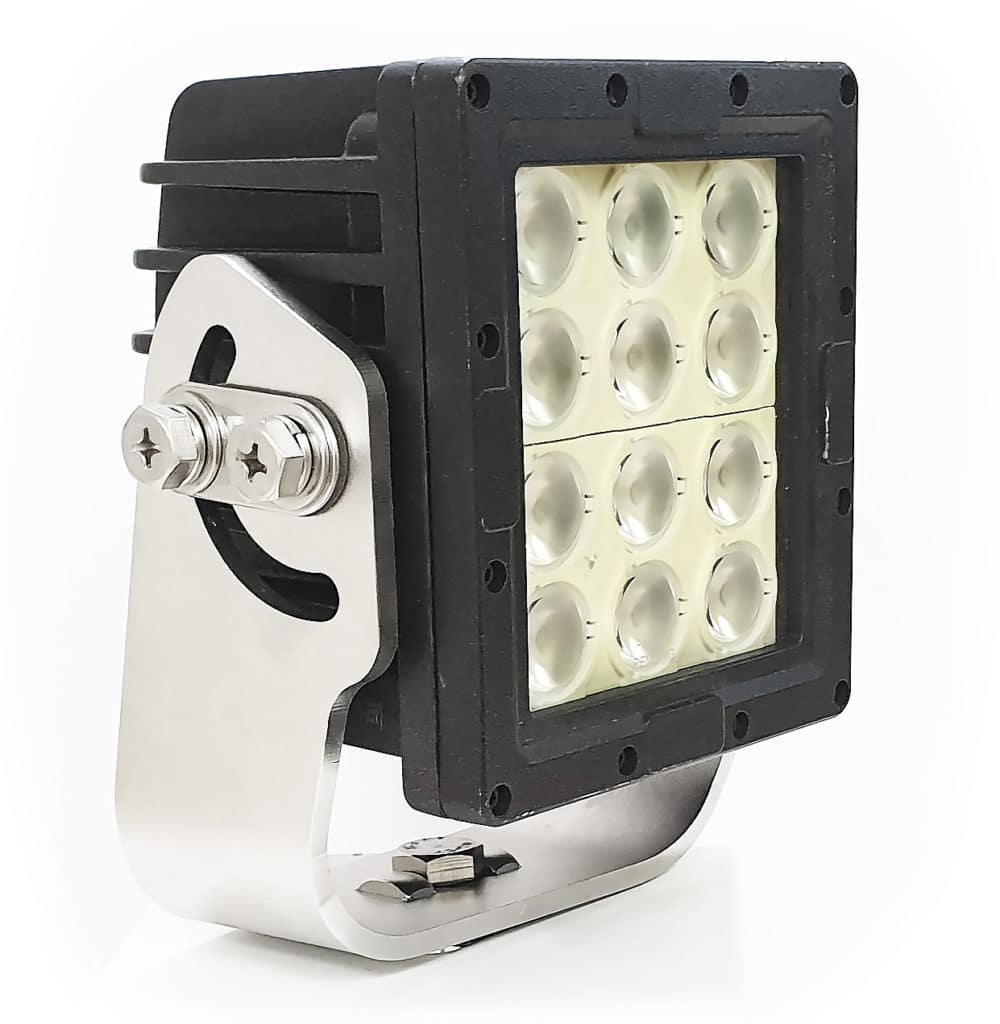

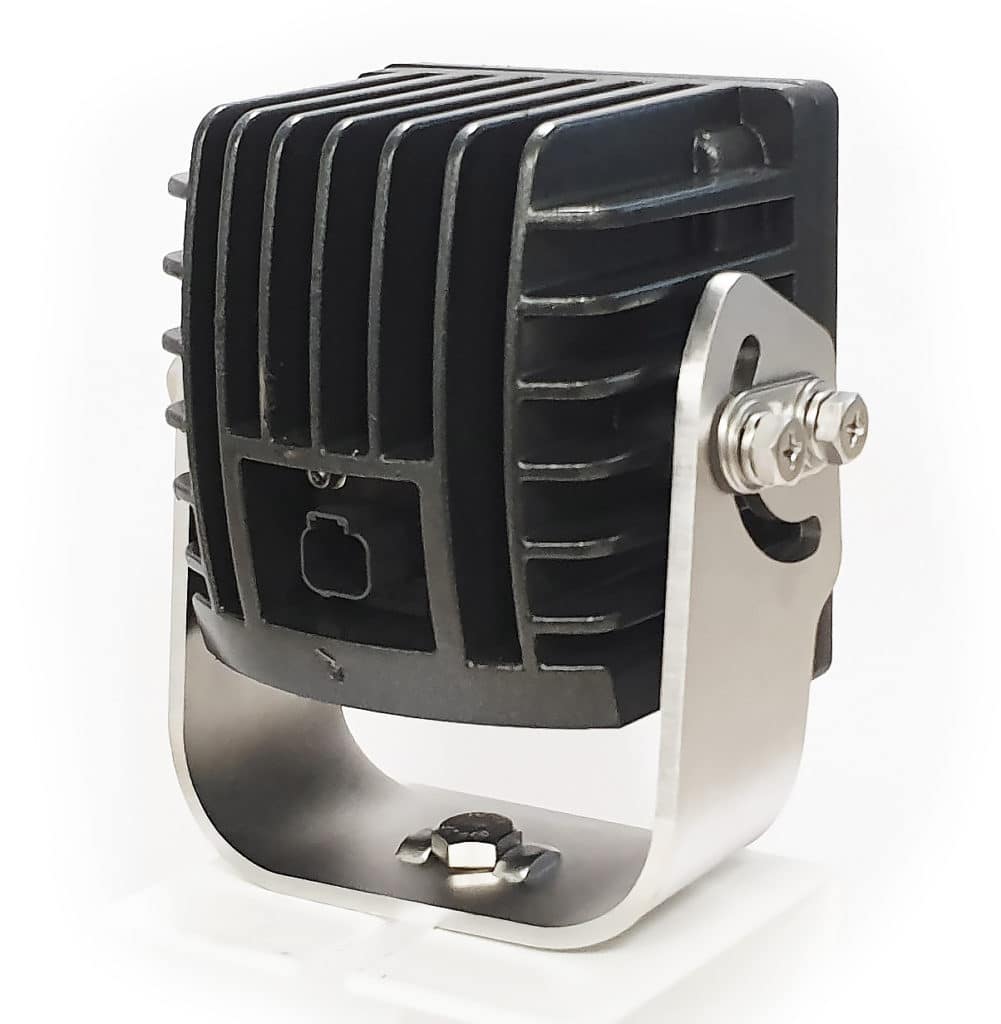

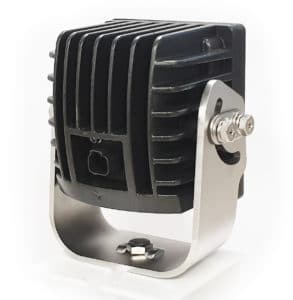

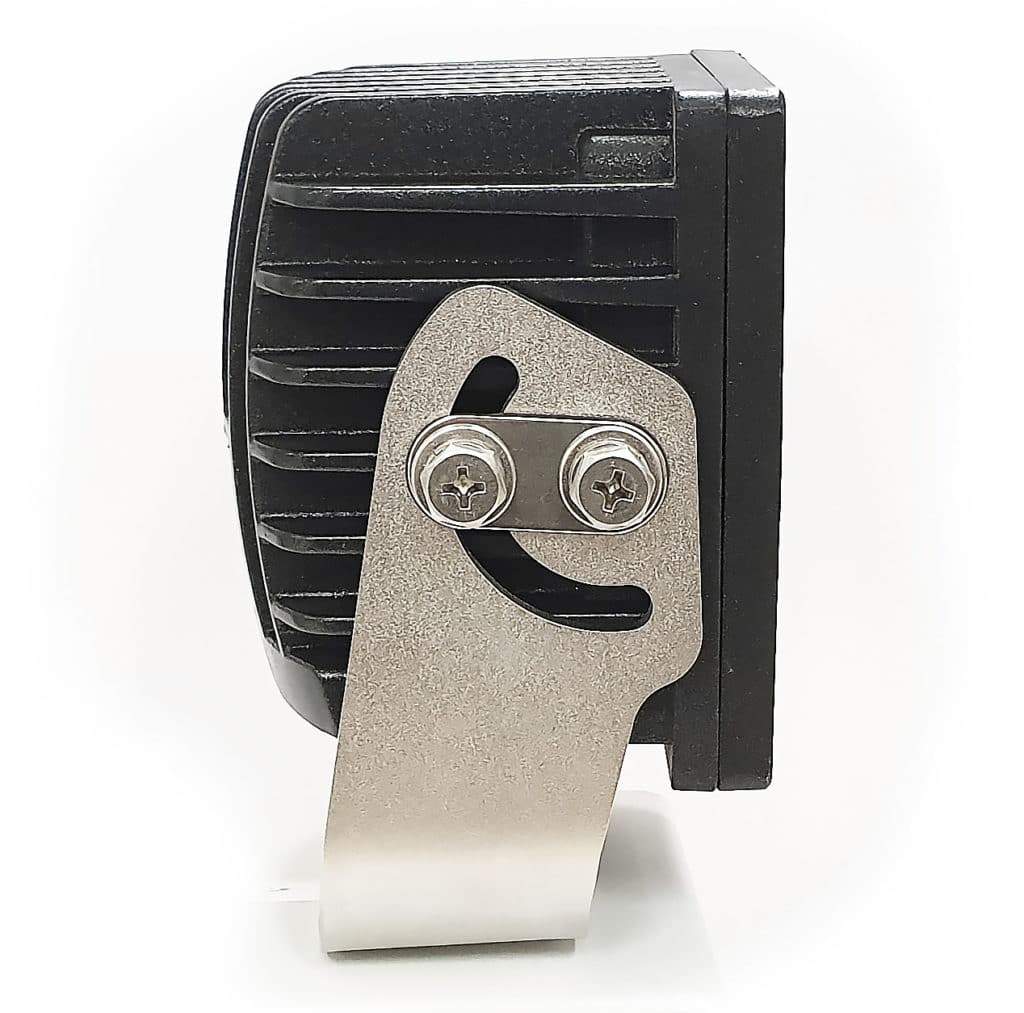

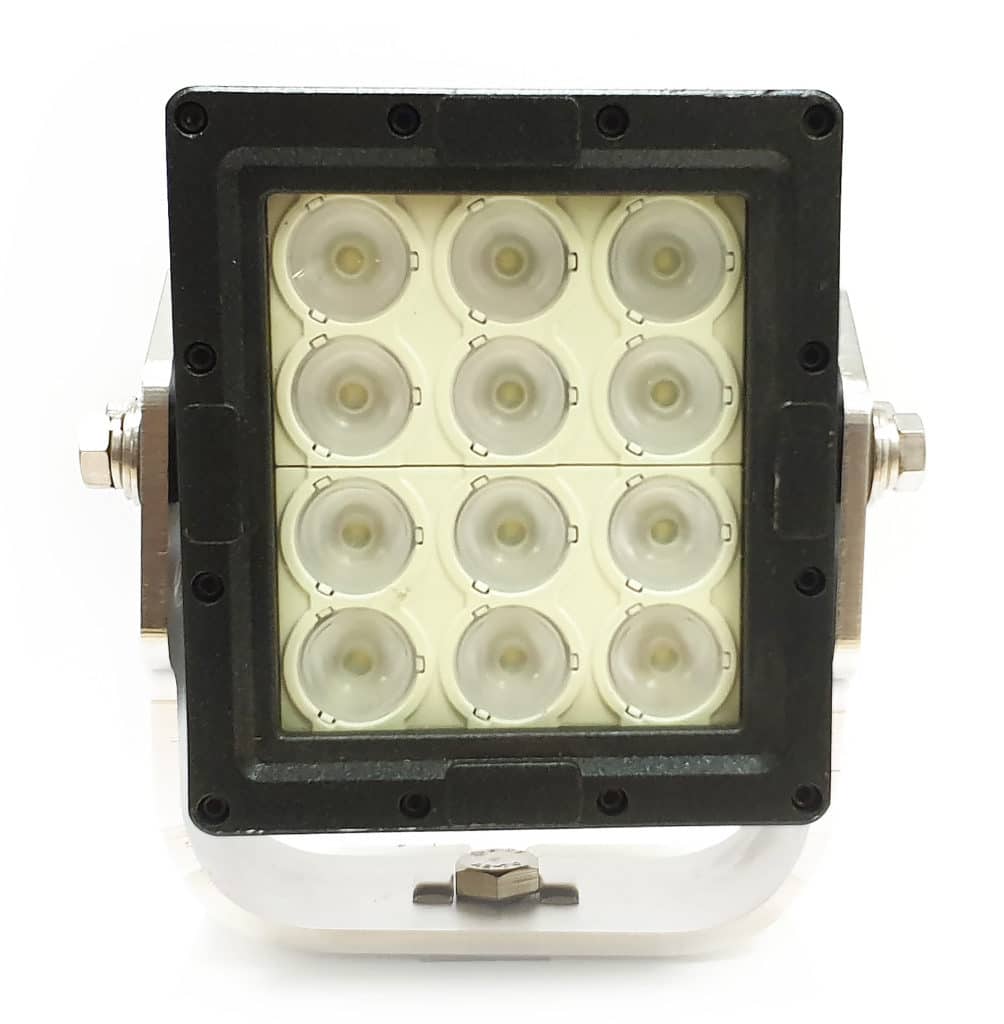

Vision X MXL Heavy Duty Ripper 12 LED

The Ripper MXL RXP by Vision X was designed for 24V high vibration applications and was named after the ripper mount on a dozer. It features a mining-grade build, heavy-duty stainless steel brackets and a phosphorescent True Glow safety glow feature that is self-charging. The Ripper provides a direct 1 for 1 replacement for HID lighting on vehicles.

The MXL Heavy Duty Ripper 12 LED was engineered to work harder and longer than any other LED work light in its class. Capable of standing up to 60G rms of intense vibrations in the harshest conditions, these light fixtures are the perfect solution for replacing unreliable lights on your work site.

The combination of a die-cast 6061 aluminium housing, unbreakable polycarbonate lens, integrated Deutsch connector, reinforced gasketed bezel, and a strengthened trunnion bracket create a one of a kind, high-powered light.

Prime Drive Technology from Vision X Lighting controls vital functions such as temperature control and dimming on your LED Light Bar. This advanced technology can increase or decrease the intervals at which the LEDs turn on and off in order to lower the bars overall temperature and maximise the lifespan.



Vision X MXL Heavy Duty Ripper 12 LED – 18-65V DC Features & Benefits

  • LEDs: 12 x 5W (60W Total)

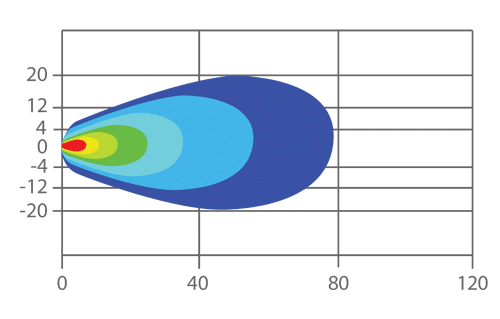

  • Beam Patterns: 10°, 25°, 40°, 60°, 90°, 30×65°
  • Vibration Rating: 60 Grms
  • Voltage: 18-65V DC (24V DC only will not operate on 12V DC)
  • Raw Lumens: 6,336 Lu, Effective Lumens: 3,575 Lu
  • EMC/EMI Approval: CISPR25-Class 3
  • Certifications: CE, RoHS, IEC 62471, IP69K
  • Low Power Draw: 2.5A @ 24V DC
  • Polycarbonate Lens, Aluminium Housing

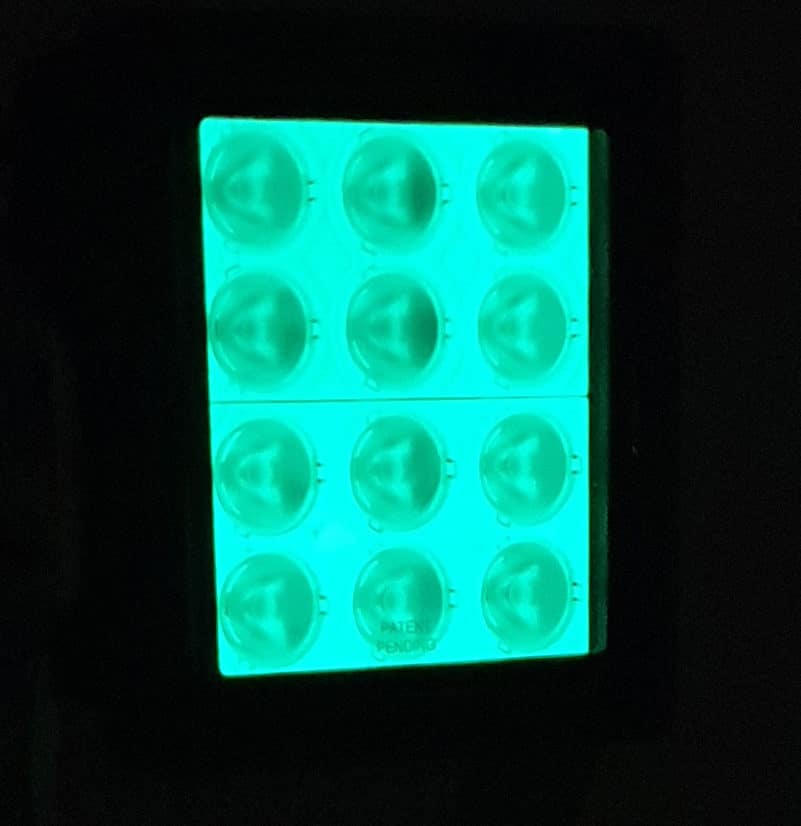

  • True Glow optic holder





Vision X MXL Heavy Duty Ripper 12 LED – 18-65V DC Specifications

Type5W LEDs (12 in total)
Beam Patterns10° Narrow Flood, 40° Medium Flood, 60° Flood, 90° Wide Flood, 30×65° Elliptical
eLumens3,575 Lu
rLumens5,916 Lu
Watts60W
Voltage18-65V
Amps2.5A@24V DC
IP RatingIP69K
CertificationsCE, RoHS, IEC 62471
EMC/EMI ApprovalCISPR25-Class 3
Colour Temperature5700K
Lens MaterialPolycarbonate
Housing Material
Aluminium
Housing ColorBlack
Weight5.51 lbs (2.5 kg)
Dimensions (DxWxH)4.0x5.0x8.07" (102x127x205mm)
Warranty3 Years / Extended

Vision X MXL Heavy Duty Ripper 12 LED – 18-65V DC Specifications Flyer (PDF)

MXL Series Cross Reference to RXP Series

  • 29-MRXP1210 | MXL Ripper 24V | 10° Beam
  • 29-MRXP1225 | MXL Ripper 24V | 25° Beam
  • 29-MRXP1240 | MXL Ripper 24V | 40° Beam
  • 29-MRXP1260 | MXL Ripper 24V | 60° Beam
  • 29-MRXP12E3065 | MXL Ripper 24V | 30×65° Elliptical Beam

Applications: Heavy vehicles and machinery, mining, construction, bulldozers, high-vibration machinery


Dimensions:
Width: 5.0" (127 mm), Height: 8.07" (205 mm), Depth: 4.0" (102 mm)
